Husqvarna 3P302D (1997) Walk Behind Rotary Mower

Model: 3P302D (1997)

Save
 Part Not Listed?Part Not Listed?
product name

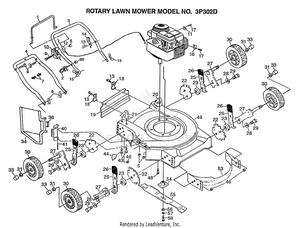

ROTARY LAWN MOWER

...
...
1
CONTROL BAR PLN-131696
...
2
ROPE GUIDE PLN-132001
...
3
SUB= 166860X479 PLN-153346X479
...
4
LOWER HANDLE PLN-151721X479
...
5
SUB= 73800400 PLN-63601
...
6
BOLT.HANDLE.LM PLN-131959
...
7
SUB= 7192J PLN-151517
...
8
HAIRPIN COTTER PLN-51793
...
9
SCREW.HXHD.WASH. PLN-144929
...
10
CONTROL THROTTLE PLN-851462
...
11
GUIDE CLIP PM PLN-87930
...
12
"CABLE,ENG ZONE CO" PLN-130861
...
13
TAPPING SCREW PLN-750097
...
14
"BRKT,UPSTOP" PLN-850733X004
...
15
"NUT,WING PM" PLN-128638
...
16
CABLE CLAMP PLN-111190X
...
17
SCREW PM PLN-83816
...
18
"BRKT,DEFL PM" PLN-87584X004
...
19
SKIRT.REAR.22SD. PLN-140539
...
20
HDLE BRKT ASSY LH PLN-151667X479
...
21
HDLE BRKT ASSY.RH PLN-151665X479
...
22
BRACKET.ADJ.9POS. PLN-700325X007
...
23
SPACER.HEIGHT.ADJ PLN-146630
...
25
SPRING SELECTOR PLN-700331X004
...
26
KNOB PM PLN-87877
...
27
ARM.AXLE.ASM.BZP. PLN-145935X004
...
28
"WASHER, BELLEVIL." PLN-62335
...
29
BOLT SHLD 3/8-16 PLN-142748
...
30
WHEEL.ASM PLN-800220
...
31
HEX FLANGE LOCKNT PLN-83923
...
33
HUB CAP-PLASTIC PLN-800090
...
34
GUARD.DISCH.22SD. PLN-145282
...
38
SUB= 152186 PLN-145286
...
40
BRACKET.HINGE.W/F PLN-147775
...
41
ROD.HINGE.COMBI-C PLN-147286
...
43
SCREW 5/16-18X3/4 PLN-149741
...
44
DECAL HYT PLN-107339X
...
46
LOCKNUT PM PLN-751592
...
48
BOLT.ENG.3/8-16 PLN-150406
...
49
KIT HOUSING MOWER PLN-152787
...
53
BAFFLE.FRT/REAR PLN-700929X479
...
54
BLADE ADAPTOR PLN-850977
...
55
"BLADE.MULCH.22""" PLN-141114
...
56
"WASHER,HARDEN" PLN-851074
...
57
LOCKWASHER PLN-850263
...
58
SCREW PLN-851084
...
xx
MANUAL.OP.GEN.PUS PLN-145655
...
xx
MANUAL.P.3P302D PLN-159477
...
xx
SUB= GCK3200A PLN-GCK3200
...
...
...
