Husqvarna 38508/385080 (2006) Walk Behind Rotary Mower

Model: 38508/385080 (2006)

Save
 Part Not Listed?Part Not Listed?
product name

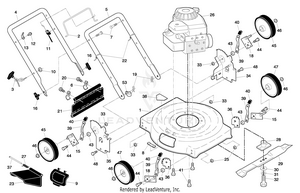

General Assembly

...
...
1
Lawn Mower Housing Assembly (Includes Key Number 38) PLN-161657
...
2
Control Bar PLN-194177X428
...
3
Rope Guide PLN-194788
...
4
Upper Handle PLN-194179X479
...
5
Lower Handle PLN-169708X479
...
6
Hinge Bracket PLN-192301X004
...
7
Handle Bolt 5/16-18 PLN-191574
...
8
Clip, Closeout PLN-161622
...
9
Mulcher Plate PLN-160830
...
10
Locknut, Hex 1/4-20 PLN-132004
...
11
Engine Zone Control Cable PLN-158152
...
12
Screw, Hex Head, Threaded, Rolled #10-24 x1/2 PLN-750634
...
13
Up-Stop Bracket PLN-86899X004
...
15
Axle Arm Assembly (Rear, RH / Front, LH) PLN-186577X004
...
16
Handle Knob PLN-189713X428
...
18
Axle Arm Assembly (Rear, LH / Front, RH) PLN-186578X004
...
19
Hairpin Cotter PLN-51793
...
20
Screw PLN-750097
...
21
Rear Deflector PLN-188987
...
22
Wire Tie PLN-664-26
...
23
Discharge Guard PLN-160831
...
25
Nut, Hex PLN-166785
...
27
Torsion Spring PLN-193436
...
28
Blade Adapter PLN-193825
...
29
22" Blade PLN-141114
...
30
Hardened Washer PLN-851074
...
31
Helical Lockwasher 3/8 PLN-850263
...
32
Hex Head Screw 3/8-24 x 1/4 Grade 8 PLN-851084
...
33
Nut, Hex, Centerlock 5/16-18 PLN-73930500
...
34
Support, Wheel Bracket, LH PLN-400781X479
...
35
Support, Wheel Bracket, RH PLN-400782X479
...
36
Adjuster, Wheel Bracket PLN-160835X007
...
37
Hinge Rod PLN-160833
...
38
Danger Decal PLN-404763
...
39
Selector Spring PLN-168360X004
...
40
Selector Knob PLN-87877
...
43
Washer PLN-183901
...
44
Shoulder Bolt PLN-160828
...
45
Wheel & Tire Assembly, Rear, 8" PLN-193851X617
...
46
Locknut, Hex 3/8-16 PLN-83923
...
47
Wheel & Tire Assembly, Front, 7" PLN-193855X617
...
48
Screw, Hex Head, Serrated, Type TT 1/4 x 20 PLN-17600406
...
41
Screw, Hex Head, Threaded, Rolled 3/8-16 x 1 PLN-150406
...
53
Clip, Cable PLN-197991
...
xx
Warning Decal (not shown) PLN-404764
...
xx
Operator's Manual, English PLN-193732
...
xx
Operator's manual, Spanish PLN-193735
...
xx
Repair Parts Manual PLN-405298
...
...
...
