Husqvarna 2P372D (1999 & Before) Walk Behind Rotary Mower

Model: 2P372D (1999 & Before)

Save
 Part Not Listed?Part Not Listed?
product name

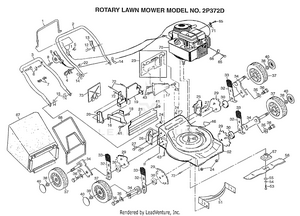

ROTARY LAWN MOWER

...
...
1
CONTROL BAR PLN-131696
...
2
SUB= 166860X479 PLN-153346X479
...
3
HANDLE.LWR.DLX.20 PLN-151590X479
...
4
ROPE GUIDE PLN-132001
...
5
SUB= 73800400 PLN-63601
...
6
BOLT.HANDLE.LM PLN-131959
...
7
SUB= 7192J PLN-151517
...
8
SCREW.HXHD.WASH. PLN-144929
...
9
CONTROL THROTTLE PLN-851462
...
11
"CABLE,ENG ZONE CO" PLN-130861
...
12
TAPPING SCREW PLN-750097
...
13
"BRKT,UPSTOP" PLN-850733X004
...
14
"NUT,WING PM" PLN-128638
...
15
HAIRPIN COTTER PLN-51793
...
16
DISCHARGE GUARD PLN-133188X479
...
17
REAR BAFFLE PLN-700063X479
...
18
SCREW.HXTAP.10-24 PLN-150050
...
19
PLATE.BACK.20RD PLN-700356X479
...
20
BAFFLE.SIDE PLN-700363X479
...
21
SKIRT.PUSH.20RD PLN-140657
...
22
NUT PLN-73510400
...
23
KIT.DOOR.RR.20STL PLN-147613
...
24
LOCKNUT PM PLN-751592
...
25
BRACKET.HDL.LH. PLN-151589X479
...
26
BRACKET.HDL.RH. PLN-151588X479
...
27
SCREW.HXWS.5/16 PLN-150078
...
29
BRACKET.ADJ.9POS. PLN-700325X007
...
30
SPACER.HEIGHT.ADJ PLN-146630
...
32
SPRING SELECTOR PLN-700331X004
...
33
KNOB PM PLN-87877
...
34
ARM.AXLE.ASM.BZP. PLN-145935X004
...
35
"WASHER, BELLEVIL." PLN-62335
...
36
BOLT SHLD 3/8-16 PLN-142748
...
37
WHEEL.8X1.75.WHT PLN-148438
...
38
HEX FLANGE LOCKNT PLN-83923
...
40
HUB CAP PLN-77400
...
41
HINGE SCREW PLN-88652
...
43
SCREW PLN-54583
...
45
BOLT.ENG.3/8-16 PLN-150406
...
46
DECAL HYT PLN-107339X
...
51
SUB= 144961 PLN-132198X479
...
52
SUB= 163765 PLN-147768
...
53
SCREW PLN-851084
...
54
LOCKWASHER PLN-850263
...
55
"WASHER,HARDEN" PLN-851074
...
56
BLADE.20.MULCH.AY PLN-145106
...
57
BLADE ADAPTOR PLN-850977
...
65
SCREW PM PLN-83816
...
66
CABLE CLAMP PLN-213146
...
67
GRASSBAG.250B1.BL PLN-149596
...
68
FRAME.CATCHER.2.5 PLN-149555
...
71
GUIDE CLIP PM PLN-87930
...
72
BLIND RIVET PLN-128415
...
73
MULCHER PLATE PLN-133169X479
...
xx
MANUAL.OP.GEN.PUS PLN-145655
...
xx
MANUAL.P.2P372D PLN-154300
...
xx
CLIPPING DEFL PLN-MA36
...
...
...
