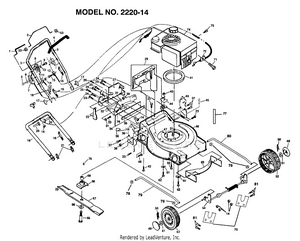

Husqvarna 2220-14 (1999 & Before) Walk Behind Rotary Mower

Model: 2220-14 (1999 & Before)

Save
 Part Not Listed?Part Not Listed?
product name

REPAIR PARTS

...
...
1
DR BAIL ASSY PLN-850040
...
2
ENGINE CNTRL BAR PLN-130184
...
3
UPPER HANDLE PLN-129203X479
...
4
SUB= 155890 PLN-850724
...
5
SUB= 74250434 PLN-85692
...
6
WASHER PM PLN-85723
...
7
SUB= 700654 PLN-851707
...
8
DR CONT ACTUATOR PLN-850042
...
9
SCREW SELF TAP PLN-36953
...
10
ZONE CONT ACTUATO PLN-850041
...
11
SUB= 133056 PLN-851915
...
12
SUB= 532851706 PLN-851706
...
13
SUB= 19101216 PLN-50806
...
14
SUB= 73800400 PLN-63601
...
15
SUB= 74760424 PLN-53109
...
16
SUB= 7192J PLN-664-26
...
17
SUB= 136376 PLN-63688
...
18
SUB= 132001 PLN-800357
...
19
LOWER HNDL PLN-85110X479
...
20
SUB= 131959 PLN-58714
...
21
HAIRPIN COTTER PLN-51793
...
22
"BAFFLE,SIDE" PLN-850247X479
...
23
SCREW PLN-54583
...
24
SCREW SELF TAP PLN-36953
...
25
HEX SCREW PLN-86779
...
26
"SCREW,HEX HEAD" PLN-76399
...
27
SUB= 850009X479 PLN-850009X424
...
29
SUB= 146358 PLN-129898
...
30
NUT PLN-74189
...
31
WASHER PM PLN-85723
...
32
BAFFLE PLN-850061
...
33
SCREW PLN-81276
...
34
SUB= 130444 PLN-88366
...
35
BACKING STRIP PLN-88367X004
...
36
DECAL HYT PLN-107339X
...
37
SCREW PLN-55187
...
38
SUB= 73690500 PLN-63124
...
39
HNDL BRKT ASSY RIGHT GREEN PLN-851768X424
...
40
HNDL BRKT ASSY LEFT GREEN PLN-851769X424
...
41
ENGINE SPACER PLN-850988
...
42
SCREW PLN-55505
...
43
NUT PLN-74189
...
44
SUB= 88615 PLN-750346
...
45
SUB= 72240404 PLN-53830
...
46
LAWN MOWER HOUSING PLN-130639
...
47
SCREW PM PLN-83816
...
48
SUB= 72140505 PLN-66238
...
49
HUB CAP PLN-77400
...
50
RETAINER CLIP PM PLN-85179
...
51
WASHER PLN-52160
...
52
WHEEL&TIRE ASSY PLN-850957
...
53
PALNUT PLN-129364
...
54
FRONT AXLE ASSY PLN-851717X004
...
61
WASHER PLN-851201X004
...
62
SCREW PLN-850999
...
63
SUB= 144964 PLN-851804X479
...
65
BOLT PLN-850859
...
66
LOCKWASHER PLN-850263
...
67
"BLADE 22"" PM" PLN-103524X
...
68
"ADAPTOR,BLADE" PLN-801511X004
...
69
SPACER PM PLN-103113X
...
70
HI PRO KEY PM PLN-87677
...
71
SCREW PLN-107488X
...
72
CABLE CLAMP PLN-213146
...
73
SCREW PM PLN-83816
...
75
RETAINER PLATE PLN-851807X004
...
76
HEX THD ROLL SCR PLN-84026
...
77
"SEAL,REAR DOOR" PLN-129925
...
78
PUSH ON SPEED NUT PLN-83731
...
79
TIE ROD RH PLN-851714X479
...
80
NLA PLN-851713X479
...
81
SUB= 86988 PLN-83620
...
xx
OPERATORS MANUAL PLN-129078
...
xx
"MANUAL,PARTS " PLN-129132
...
xx
DECAL, HOUSING PLN-129317
...
...
...
