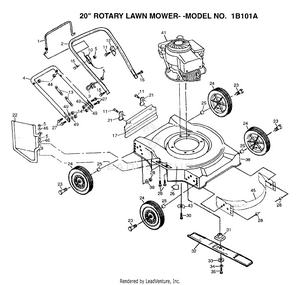

Husqvarna 1B101A (1999 & Before) Walk Behind Rotary Mower

Model: 1B101A (1999 & Before)

Save
 Part Not Listed?Part Not Listed?
product name

REPAIR PARTS

...
...
1
CONTROL BAR PM PLN-86902
...
2
UPPER HANDLE PLN-132826X479
...
3
ROPE GUIDE PLN-132001
...
4
HANDLE LWR PM PLN-851646X479
...
5
SUB= 73800400 PLN-63601
...
10
CABLE.CONT.ENG PLN-851809
...
11
TAPPING SCREW PLN-750097
...
12
"BRKT,UPSTOP" PLN-850733X004
...
13
SUB= 7192J PLN-664-26
...
14
LOCKNUT PLN-132010
...
15
BOLT 1/4-20-1 1/2 PLN-74350424
...
17
SUB= 140541 PLN-751228
...
21
"BRKT,DEFL PM" PLN-87584X004
...
22
"GRD,DISCHARGE" PLN-752052
...
23
AXLE BOLT PLN-67609
...
24
WHEEL ASSY PLN-130491
...
25
SUB= 532136624 PLN-136624
...
26
DECAL HYT PLN-107339X
...
27
SUB= 532137009 PLN-137009
...
28
LOCKNUT PM PLN-751592
...
29
BOLT LT PLN-74760412
...
30
SCREW PLN-850998
...
31
BLADE ADAPTOR PLN-850977
...
32
BLADE.STAND.20INC PLN-850972
...
33
"WASHER,HARDEN" PLN-851074
...
34
LOCKWASHER PLN-850263
...
35
SCREW PLN-851084
...
38
SUB= 48285 PLN-135063
...
39
SUB= 19132012 PLN-61537
...
43
WASHER PLN-851201X004
...
44
SUB= 73800400 PLN-132004
...
45
FRONT BAFFLE PLN-133383X479
...
46
SUB= 19091214 PLN-53847
...
49
STEEL WASHER PLN-55611
...
xx
NLA PLN-700714
...
xx
PARTS MANUAL PLN-700758
...
...
...
