Haier HRF15N3AGS Refrigerator

Model: HRF15N3AGS

Save
 Part Not Listed?Part Not Listed?
product name

CABINET

...
...
27
DOOR CAM RIGHT GEH-WR01X28493
...
28
AIR DUCT COVER GEH-WR14X28536
...
29
LED BOARD GEH-WR55X28537
...
30
SCREW COVER GEH-WR01X28478
...
31
SCREW ST3.9 X 12 GEH-WR01X28395
...
32
AIR DAMPER GEH-WR14X28413
...
33
FRESH FOOD SENSOR GEH-WR55X28330
...
34
FRESH FOOD AIR TOWER GEH-WR14X28491
...
35
TAPPING SCREW ST9 X 13 GEH-WR01X28362
...
37
FREEZER SENSOR GEH-WR55X28411
...
38
EVAPORATOR FAN GEH-WR60X28538
...
40
EVAPORATOR GEH-WR87X28489
...
41
DEFROST HEATER GEH-WR09X28490
...
42
HARNESS DEFROST GEH-WR55X27772
...
43
DEFROST SENSOR GEH-WR55X28412
...
44
EVAPORATOR COVER GEH-WR14X28477
...
45
HUMIDITY SENSOR GEH-WR55X28483
...
46
TOP HINGE COVER RIGHT GEH-WR13X28484
...
47
TOP HINGE & PIN RIGHT GEH-WR13X28532
...
49
TOP HINGE COVER LEFT GEH-WR13X28476
...
50
SCREW M5 X 16 GEH-WR01X28375
...
51
TOP HINGE & PIN LEFT GEH-WR13X28531
...
52
LED COVER GEH-WR13X28498
...
54
DOOR SWITCH GEH-WR01X28529
...
55
MIDDLE HINGE LEFT GEH-WR13X28523
...
58
MIDDLE HINGE RIGHT GEH-WR13X28524
...
59
LEVELING LEG GEH-WR01X28530
...
61
DRAIN TRAY GEH-WR14X28473
...
62
CONNECTING PIPE GEH-WR01X28373
...
63
COMPRESSOR GEH-WR87X28539
...
64
COMPRESSOR INVERTER GEH-WR87X28475
...
65
REAR ACCESS COVER GEH-WR14X28472
...
66
SCREW ST3.9 X 16 GEH-WR01X28345
...
67
DRYER GEH-WR87X27294
...
68
MAIN BOARD CONTROL BOX GEH-WR01X28495
...
69
MAIN BOARD CONTROL GEH-WR55X28533
...
70
MAIN BOARD CONTROL COVER GEH-WR01X28479
...
71
COMBINATION SCREW GEH-WR01X27757
...
72
POWER CORD GEH-WR55X28528
...
73
EGG TRAY GEH-WR01X28488
...
74
WASHER GEH-WR01X28504
...
75
DRAIN TROUGH GEH-WR14X28505
...
78
MULLION STRIKER GEH-WR01X28470
...
79
DOOR CAM LEFT GEH-WR01X28471
...
80
ICE TRAY GEH-WR01X28486
...
81
UPPER MULLION GASKET GEH-WR14X31729
...
82
LOWER MULLION GASKET GEH-WR14X31730

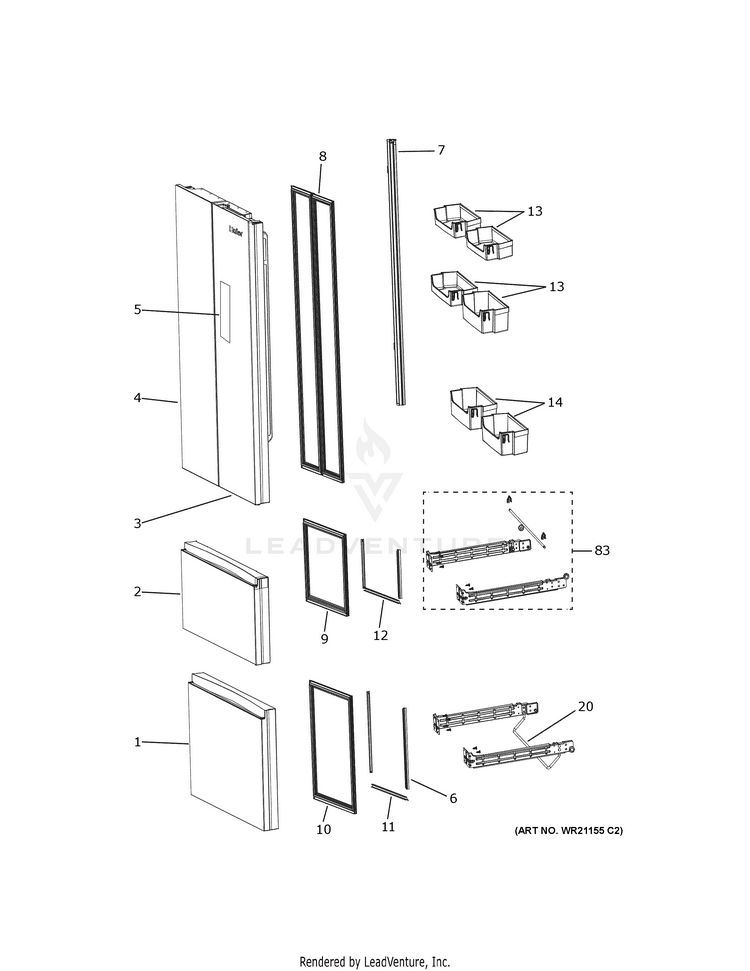

DOORS

...
...
1
REFRIGERATOR - FREEZER LOWER DOOR STAINL GEH-WR78X28542
...
2
REFRIGERATOR - FREEZER UPPER DOOR STAINL GEH-WR78X28541
...
3
REFRIGERATOR - FRESH FOOD RH STAINLESS S GEH-WR78X28544
...
4
REFRIGERATOR - FRESH FOOD LH STAINLESS S GEH-WR78X28543
...
5
UI DISPLAY GEH-WR55X28540
...
6
DAMPER GASKET GEH-WR14X28502
...
7
ARTICULATING MULLION GEH-WR14X28500
...
8
REFRIGERATOR - FRENCH DOOR GASKET GEH-WR14X28487
...
9
FREEZER UPPER DOOR GASKET GEH-WR14X28485
...
10
FREEZER LOWER DOOR GASKET GEH-WR14X28482
...
11
DAMPER GASKET GEH-WR14X28497
...
12
DAMPER GASKET GEH-WR14X28503
...
13
FRESH FOOD DOOR BIN GEH-WR71X28526
...
14
FRESH FOOD GALLON BIN GEH-WR71X28527
...
15
FREEZER RAIL LH GEH-WR72X28496
...
19
FREEZER RAIL RH GEH-WR72X28501
...
20
LOWER FREEZER DOOR RAIL GEH-WR72X34165
...
83
FREEZER RAIL BOTTOM GEH-WR72X28494

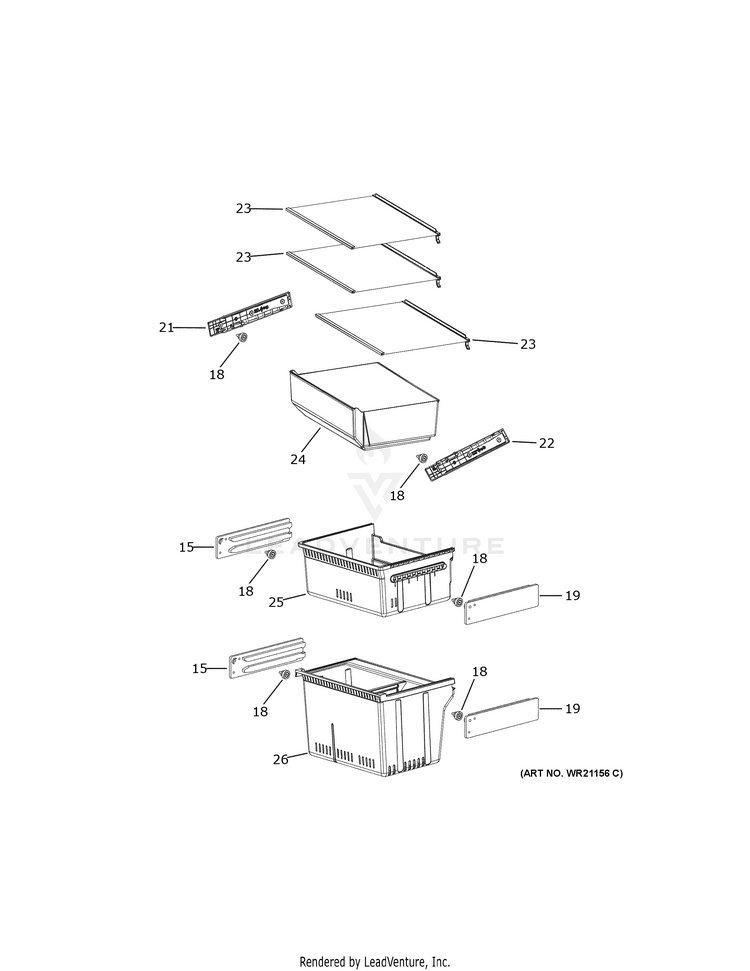

SHELVES & DRAWERS

...
...
21
FRESH FOOD RAIL LH GEH-WR72X28480
...
22
FRESH FOOD RAIL RH GEH-WR72X28474
...
23
GLASS SHELF FULL GEH-WR71X28534
...
24
VEGETABLE PAN GEH-WR71X28535
...
25
UPPER FREEZER DRAWER GEH-WR71X28499
...
26
LOWER FREEZER DRAWER GEH-WR71X28492
...
...
...
