Haier HCR2250ADS Gas Range Or Dual Fuel

Model: HCR2250ADS

Save
 Part Not Listed?Part Not Listed?
product name

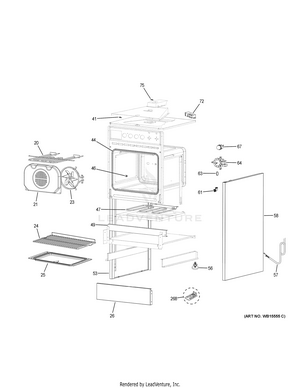

BODY PARTS

...
...
20
BROIL ELEMENT GEH-WB44X28270
...
21
CONVECTION FAN COVER GEH-WB34X28278
...
23
CONVECTION HEATING ELEMENT GEH-WB44X28279
...
24
OVEN RACK GEH-WB48X28313
...
25
GREASE COLLECTOR PAN GEH-WB32X28296
...
26
FRONT BOTTOM TRIM GEH-WB07X28291
...
41
THERMAL CUTOUT GEH-WB24X28320
...
44
DOOR GASKET GEH-WB35X28285
...
46
GUIDE RAIL NUT GEH-WB02X28297
...
47
HIDDEN BAKE ELEMENT GEH-WB44X28298
...
49
DRAWER TRIM GEH-WB07X28290
...
53
SIDE PANEL LT GEH-WB56X28317
...
56
LEVELING LEG GEH-WB02X28308
...
57
POWER CORD GEH-WB18X28315
...
58
SIDE PANEL RT GEH-WB56X28318
...
61
INLET ELBOW GEH-WB28X28304
...
63
GASKET GEH-WB35X28292
...
64
CONVECTION MOTOR AND FAN ASM GEH-WB26X28280
...
67
LAMP SOCKET AND LENS ASM GEH-WB18X28307
...
72
TOP BURNERS SPARK MODULE GEH-WB13X28324
...
75
COOLING FAN THERMOSTAT GEH-WB24X28282
...
268
BRACKET ANTI-TIP ASM GEH-WB02T10578

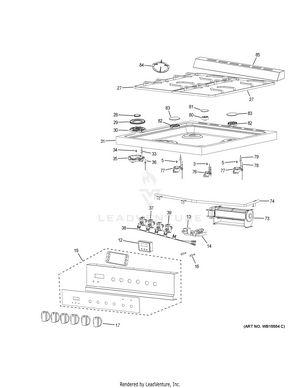

CONTROL PANEL & COOKTOP

...
...
3
NG ORIFICE GEH-WB28X30660
...
3
LP ORIFICE GEH-WB28X30653
...
5
LP ORIFICE GEH-WB28X30652
...
5
NG ORIFICE GEH-WB28X30661
...
12
TIMER GEH-WB24X28323
...
13
OVEN THERMOSTAT GEH-WB24X28314
...
14
SELECTOR SWITCH GEH-WB24X28316
...
16
LIGHT INDICATOR GEH-WB25X28309
...
17
KNOB GEH-WB03X28306
...
19
CONTROL PANEL OVERLAY GEH-WB07X30668
...
27
GRATE GEH-WB31X28295
...
28
BURNER CAP INNER GEH-WB29X28276
...
29
BURNER CAP OUTER GEH-WB29X28277
...
30
BURNER BASE GEH-WB16X28273
...
31
MAINTOP SS GEH-WB62X28310
...
33
THERMOCOUPLE GEH-WB13X28322
...
34
LP ORIFICE GEH-WB28X30651
...
34
NG ORIFICE GEH-WB28X30659
...
35
INJET GEH-WB28X28301
...
36
IGNITOR WITH WIRE GEH-WB13X28299
...
37
GAS VALVE GEH-WB21X28293
...
38
SWITCH HARNESS ASM GEH-WB18X28319
...
39
GAS VALVE GEH-WB21X28294
...
73
COOLING FAN GEH-WB26X28281
...
74
MANIFOLD GEH-WB28X28311
...
76
INJET GEH-WB28X28302
...
77
INJET GEH-WB28X28303
...
78
IGNITOR WITH WIRE GEH-WB13X28300
...
79
THERMOCOUPLE GEH-WB13X28321
...
80
BURNER BASE GEH-WB16X28271
...
81
BURNER CAP GEH-WB29X28274
...
82
BURNER BASE GEH-WB16X28272
...
83
BURNER CAP GEH-WB29X28275
...
84
WOK ADAPTER GEH-WB31X28325
...
85
BACKSPLASH GEH-WB34X28326

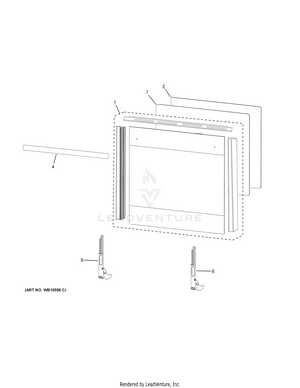

DOOR

...
...
1
OUTER DOOR ASM GEH-WB56X30681
...
2
INNER DOOR GLASS GEH-WB56X28305
...
4
DOOR HANDLE ASM GEH-WB15X28287
...
6
DOOR HINGE ASM GEH-WB10X28288
...
7
DOOR GLASS GEH-WB56X28286
...
...
...
