Haier 1U12LC2VHA Room Air Conditioner Built In

Model: 1U12LC2VHA

Save
 Part Not Listed?Part Not Listed?
product name

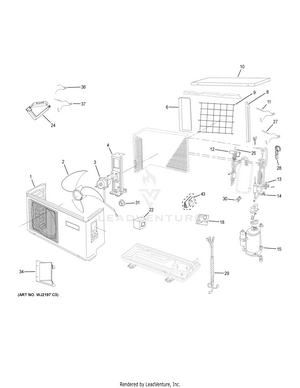

ROOM AIR CONDITIONER

...
...
1
CASING GEH-WJ76X23478
...
2
FAN BLADE GEH-WJ73X23190
...
3
OUTDOOR FAN MOTOR GEH-WJ94X22975
...
4
OUTDOOR FAN MOTOR BRACKET GEH-WJ65X23207
...
6
REAR BOARD GUARD GEH-WJ76X23197
...
8
RIGHT CORNER PANEL GEH-WJ73X24374
...
9
REAR GRILLE GEH-WJ71X23338
...
10
TOP COVER GEH-WJ76X23200
...
11
AMBIENT TEMPERATURE SENSOR GEH-WJ26X23278
...
12
4-WAY VALVE GEH-WJ53X22967
...
13
3-WAY VALVE GEH-WJ53X23143
...
14
2-WAY STOP VALVE GEH-WJ53X22991
...
15
COMPRESSOR GEH-WJ98X23186
...
18
OUTDOOR POWER CONTROL BOARD GEH-WJ26X23692
...
22
REACTOR GEH-WJ26X23694
...
24
STOP VALVE COVER GEH-WJ76X23201
...
25
DISCHARGE TUBE GEH-WJ53X23690
...
27
PIPE SENSOR GEH-WJ26X23334
...
28
ELECTRONIC EXPANSION VALVE GEH-WJ53X23691
...
29
OUTDOOR WIRING HARNESS GEH-WJ35X23332
...
30
TERMINAL BLOCK GEH-WJ27X22985
...
31
FLANGE NUT GEH-WJ01X23150
...
34
ELECTRICAL COVER GEH-WJ73X24375
...
36
COMPRESSOR TEMPERATURE SENSOR GEH-WJ26X23286
...
37
SUCTION TEMPERATURE SENSOR GEH-WJ26X23346
...
43
INVERTER ASSEMBLY GEH-WJ26X24099
...
...
...
