GE WCCN2050F0WC COIN-OP WASHER

Model: WCCN2050F0WC

Save
 Part Not Listed?Part Not Listed?
product name

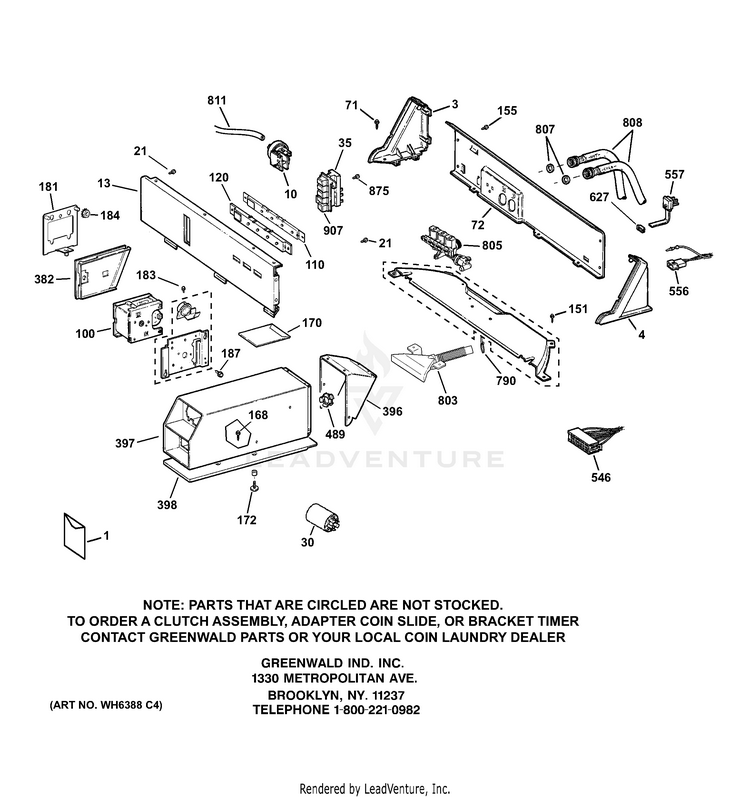

BACKSPLASH & COIN BOX ASSEMBLY

...
...
1
PM MANUAL U&C GEH-49-90493
...
1
PM INSTRUCTION INSTALL GEH-31-16513
...
1
PM SHEET MINI MANUAL GEH-31-16561
...
3
END CAP LH BK GEH-WH42X10735
...
4
END CAP RH BK GEH-WH42X10734
...
10
SWITCH PRESSURE GEH-WH12X20200
...
13
CONTROL PANEL ASM GEH-WH42X10737
...
21
SCR 8-18 B IHW 5/16 S GEH-WH02X1185
...
30
FILTER POWER LINE GEH-WH12X10408
...
35
SWITCH PUSHBUTTON GEH-WH12X10496
...
71
SCR 8-18 B 1/2 HXW P GEH-WH02X1205
...
72
PANEL BACK GEH-WH46X10083
...
100
TIMER COIN-OP GEH-WH12X10376
...
110
CONTROL COIN-OP ASM GEH-WH12X10363
...
120
PCB COVER COIN-OP GEH-WH01X10072
...
151
SCREW 8-18 B 1HW 1/2 SN GEH-WH02X10126
...
155
SCR 8-18 AB TRT 5/8 S GEH-WH02X1233
...
168
SCR 10-32 M HS 1/8 S GEH-WZ02X0468
...
170
PM ENVELOPE ASM LOCKDOWN GEH-WH49X10053
...
172
SCR 1/4-20MAC PNT .95 GEH-WH02X1234
...
181
ADAPTER COIN SLIDE GEH-* 74-1083
...
183
SCR 8-32 SN 5/16 S GEH-WH02X10280
...
184
NUT KEPS 10-32 SPECIAL GEH-WH02X10300
...
187
SCR 10-32 M HXW 1/4 S GEH-WH02X0946
...
382
DOOR AND LATCH ASM GEH-WH42X10804
...
396
ADAPTER METER CASE GEH-WH42X10806
...
397
METER CASE WH GEH-WH42X10805
...
398
GASKET COIN BOX WASHER GEH-WH08X10006
...
489
SLEEVE SPLIT GEH-WH01X2572
...
546
HOUSING TERMINAL BK GEH-WH12X0870
...
556
TERM HSNG GEH-WH12X538
...
557
CORD POWER ASM GEH-WH19X10069
...
627
SELF LOCKING STRAIN RELF GEH-WH12X10208
...
790
CLAMP HOSE GEH-WH01X2036
...
803
FUNNEL SHOWER HEAD GEH-WH41X10165
...
805
TRIPLE WATER VALVE GEH-WH13X10026
...
807
HOSE WASHER GEH-WH02X0042
...
811
HOSE PRES SW GEH-WH41X365
...
875
SCREW 8-18 AB HXW 3/8 GEH-WH02X0930
...
907
PUSHBUTTON GEH-WD09X0206

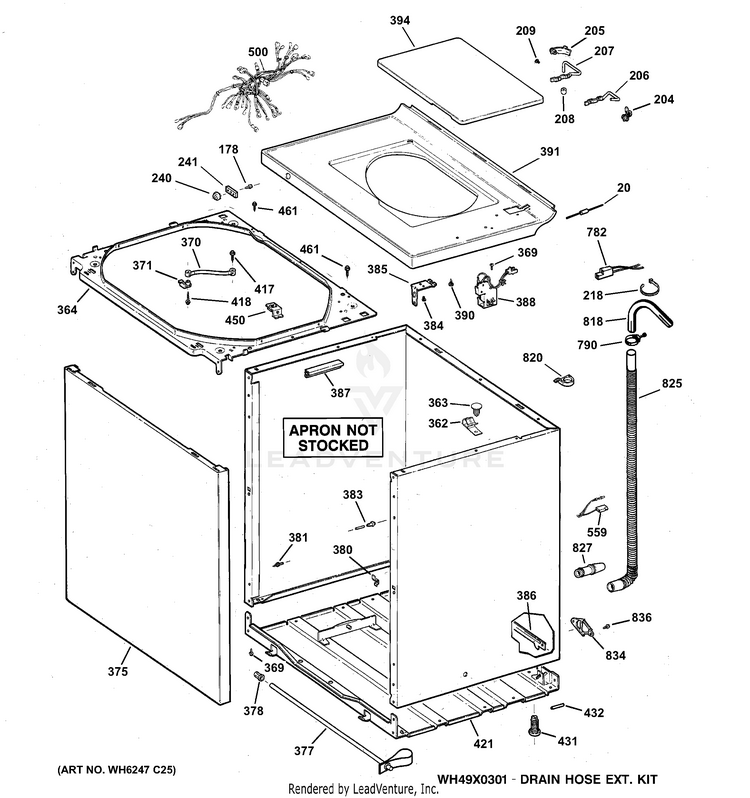

CABINET, COVER & FRONT PANEL

...
...
178
SCREW-NICKEL GEH-WB01X1158
...
204
BUSHING HINGE GEH-WH01X2741
...
205
BUSHING HINGE GEH-WH01X10025
...
206
WIREFORM HINGE GEH-WH01X2783
...
207
WIREFORM HINGE GEH-WH01X10033
...
208
BUMPER HINGE GEH-WH01X2742
...
209
SCREW GEH-WH02X1211
...
218
WIRE TIE/PLUG GEH-WH01X10217
...
240
BUTTON PLUG GEH-WH01X2266
...
241
RETAINER BUTTON GEH-WH01X2268
...
362
CHRISTMAS TREE WIRE CLIP GEH-WH02X10263
...
363
PLUG PINETREE GEH-WH02X10258
...
364
WELD ASM ROD SUPPORT GEH-WH46X10269
...
369
SCR 8-18 AB IHW 7/16 SN GEH-WH02X1217
...
370
WH1X2727 GEH-WH01X10046
...
371
RETAINER STRAP GEH-WH01X2726
...
375
PANEL & BRACE ASM WH/EXP GEH-WH46X10110
...
377
SHIPPING BAR ASM GEH-WH46X0344
...
378
BUTTON PLUG GEH-WH01X2745
...
380
CLIP GROUND GEH-WH02X1207
...
381
STUD GROUNDING GEH-WH02X1190
...
383
PIN ALIGNMENT GEH-WH02X1189
...
384
SCR 6-20 B TRT 3/8 S GEH-WH01X10423
...
384
SCREW 8-15 A 3/4 SP HXW GEH-WH01X10109
...
385
COVER CLIP GEH-WH01X10422
...
386
BAR SELF LEVELING GEH-WH46X10094
...
387
CONDUIT GEH-WH41X10161
...
388
LID SWITCH ASSY GEH-WH12X1051
...
390
ISOLATOR GEH-WH01X2724
...
391
COVER ASSY FINISHED WHIT GEH-WH44X1218
...
394
LID ASM FINISHED GEH-WH44X20363
...
417
SCR 10-12 A HX 1/2 S GEH-WH02X0694
...
418
SCR 8-18 B IHW 1 S GEH-WH02X10282
...
421
BASE ASM GEH-WH46X10148
...
431
LEG LEVELING GEH-WH02X1187
...
432
PIN ROLL GEH-WH02X1188
...
450
NUT & BRKT GEH-WH16X528
...
461
SCREW 8-32X3/8 GRD SCR GEH-WZ05X0158
...
500
HARNESS COIN OP WASHER GEH-WH19X20230
...
559
HOUSING TERMINAL GEH-WH12X0538
...
782
TERMINAL BLOCK ASSY (2 P GEH-WB17X5060
...
790
CLAMP HOSE GEH-WH01X2036
...
818
NOZZLE DRAIN GEH-WH41X0035
...
820
CLIP ANTI-SIPHON GEH-WH01X2725
...
825
HOSE & SPRING ASSY GEH-WH41X10053
...
827
ADAPTER DRAIN HOSE GEH-WH41X10020
...
834
RETAINER HOSE GEH-WH16X0513
...
836
SCREW 8-18 AB IHWP 7/8 S GEH-WH02X10002

SUSPENSION, PUMP & DRIVE COMPONENTS

...
...
320
SHAFT AND TUBE ASM GEH-WH38X10019
...
403
LEG AND PLATFORM ASM GEH-WH17X10025
...
405
SCR 1/4-20 B HXW 3/4 SNS GEH-WH02X1201
...
411
NUT PULLEY GEH-WH02X1203
...
413
HEX NUT OVERMOLD ASM GEH-WH02X10233
...
414
FRONT ROD & SPRING ASM GEH-WH16X10158
...
415
REAR ROD & SPRING ASM GEH-WH16X10159
...
419
SOCKET ROD SUPPORT GEH-WH01X10001
...
603
BELT - 6 RIB GEH-WH01X10302
...
630
MOTOR AND INVERTER ASM GEH-WH20X20225
...
651
SCREW 1/4-20 TPT 1H 1/2 GEH-WH02X10123
...
655
PUMP GEH-WH23X10043
...
678
COUNTERWEIGHT GEH-WH01X10643
...
679
BRACKET COUNTER WEIGHT GEH-WH49X20708
...
680
WASHER BOLT COMBO GEH-WH02X22434
...
725
DRIVE PULLEY GEH-WH07X10019

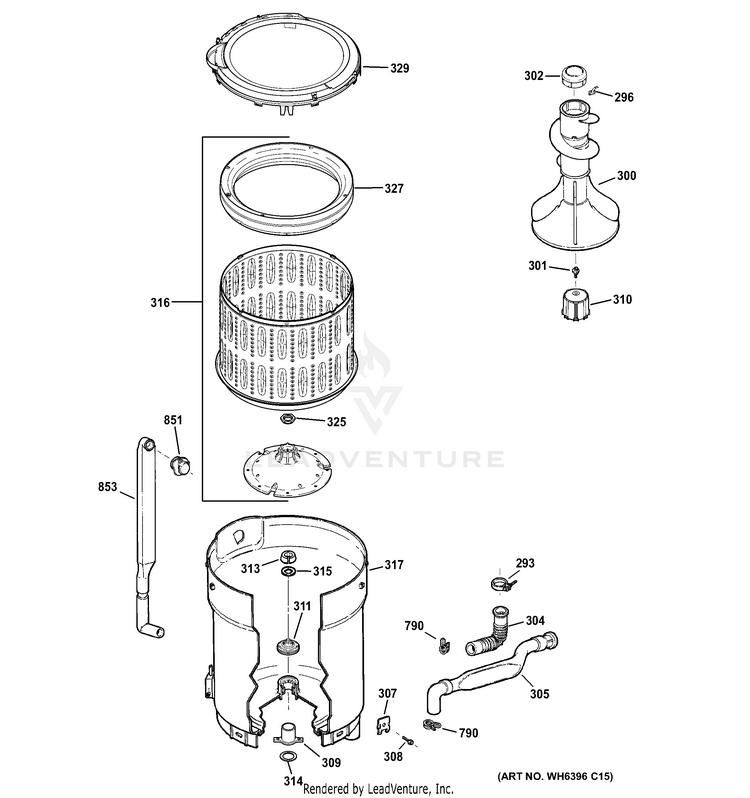

TUB, BASKET & AGITATOR

...
...
293
CLAMP HOSE GEH-WH01X10134
...
296
CLIP AGITATOR CAP GEH-WH01X2784
...
300
AGITATOR ASM MULTI GEH-WH43X10034
...
301
SCR 1/4-20 MCH HXW 5/8 S GEH-WH02X10237
...
302
CAP AGITATOR SHORT GEH-WH43X10005
...
304
HOSE DRAIN INLET GEH-WH41X10163
...
305
HOSE DRAIN ASM GEH-WH41X10285
...
307
CLAMP - TUB GEH-WH01X2730
...
308
SCR 5/16-18 TPT IHW S N GEH-WH02X10267
...
309
BEARING TUB GEH-WH02X1198
...
310
COUPLING AGITATOR GEH-WH43X10032
...
311
SEAL TUB GEH-WH02X10383
...
313
RING SPLIT GEH-WH02X1195
...
314
WASHER TUB BEARING GEH-WH02X1197
...
315
FLAT WASHER GEH-WH02X1199
...
316
BASKET HUB & RING GEH-WH45X10112
...
317
TUB ASM GEH-WH45X20473
...
325
NUT HUB GEH-WH02X1193
...
327
BALANCE RING ASM GEH-WH45X10114
...
329
COVER TUB ASM GEH-WH45X20483
...
790
CLAMP HOSE GEH-WH01X2036
...
851
GASKET FLOOD HEAD GEH-WH01X2729
...
853
HOSE FLOOD GEH-WH41X10297
...
...
...
