product name

GE PGP9830DJ1BB Gas Range

Model: PGP9830DJ1BB

Save
 Part Not Listed?Part Not Listed?
product name

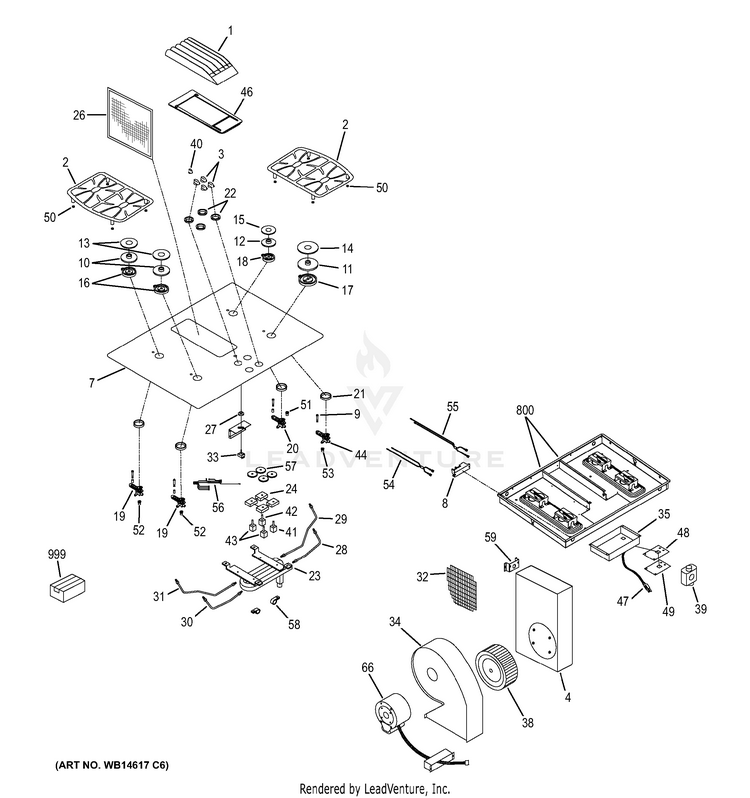

CONTROL PANEL & COOKTOP

...
...
1
VENT GRILL, BK MATTE GEH-WB34X24785
...
2
BURNER GRATES, LH / RH GEH-WB31X24784
...
3
KNOB CONTROL BLACK GEH-WB03X10122
...
4
PLENUM,WELD PAINT GEH-WB64X10019
...
7
MAINTOP GLASS, BK GEH-WB62X25215
...
8
MODULE SPARK (4+0) GEH-WB13T10046
...
9
IGNITER GEH-WB13T10073
...
10
BURNER HEAD "B" GEH-WB16X10030
...
11
BURNER HEAD "C" GEH-WB16X10031
...
12
BURNER HEAD-RR GEH-WB16X10001
...
13
BURNER CAP "B" BK MATTE GEH-WB29X24783
...
14
BURNER CAP "C" BK MATTE GEH-WB29X24782
...
15
BURNER CAP "A" BK MATTE GEH-WB29X24781
...
16
BURNER BASE ASM. "B" GEH-WB16X10032
...
17
BURNER BASE ASM. "C" GEH-WB16X10033
...
18
BURNER BASE-RR GEH-WB16X10002
...
19
JET HOLDER ASSY-L F&R GEH-WB16X10003
...
20
JET HOLDER ASSY-RR GEH-WB16X10004
...
21
BURNER GROMMET GEH-WB02X11372
...
22
GROMMET VALVE HOLE BLACK GEH-WB32X10019
...
23
MANIFOLD ASSY GEH-WB28X10120
...
24
SWITCH HARNESS GEH-WB18X21210
...
26
FILTER BLK GEH-WB02X10651
...
27
SEAL, SWITCH GEH-WB04X10033
...
28
TUBING RF GEH-WB28X10027
...
29
TUBING RR GEH-WB28X10028
...
30
TUBING LF GEH-WB28X10029
...
31
TUBING LR GEH-WB28X10030
...
32
WIRE GUARD GEH-WB02X11168
...
33
SWITCH, FAN GEH-WB24X10174
...
34
FAN HOUSING GEH-WB26X10129
...
35
WIRE COVER GEH-WB02X11370
...
38
FAN BLADE (BLOWER WHEEL) GEH-WB26X10130
...
38
REGULATOR GEH-WB19X10027
...
40
KNOB, BLOWER BLACK GEH-WB03X10322
...
41
VALVE RF GEH-WB21X10051
...
42
VALVE RR GEH-WB21X10052
...
43
VALVE L F&R GEH-WB21X10053
...
44
JET HOLDER ASSY-RF GEH-WB16X10005
...
46
GASKET PLENUM BLACK GEH-WB06X10274
...
47
POWER CORD GEH-WB08X10018
...
48
GASKET MANIFOLD GEH-WB06X10276
...
49
RETAINER PLATE GEH-WB02X11188
...
50
GRATE FEET GEH-WB02X11373
...
51
ORIFICE BURNER LP RR GEH-WB06X10278
...
51
ORIFICE SPUD ASSY-NAT GEH-WB28T10013
...
52
ORIFICE BURNER LP L F&R GEH-WB06X10277
...
52
ORIFICE SPUD LT FRT GEH-WB28T10014
...
53
ORIFICE SPUD ASSY-NAT GEH-WB28T10015
...
53
ORIFICE BURNER LP RF GEH-WB06X10279
...
54
IGNITOR HARNESS, LEFT GEH-WB18X10424
...
55
IGNITOR HARNESS, RIGHT GEH-WB18X10423
...
56
WIRE HARNESS, BLOWER GEH-WB18X10422
...
57
SPLASH GUARD GEH-WB02X11371
...
58
CLAMP CONDUIT GEH-WB02X11374
...
59
SUPPORT GEH-WB02X11364
...
66
FAN MOTOR GEH-WB26X10131
...
800
FOAM TAPE GEH-WB02X11192
...
999
INSTALLATION KIT GEH-WB02X11365
...
999
PM OWNERS & INSTALL GEH-49-80516
...
999
MINI MANUAL GEH-31-14724
...
999
LP CONVERSION INSTRUCTIO GEH-49-80554
...
999
PM OWNERS MANUAL GEH-49-80518
...
999
HI ALT NG KIT GEH-WB28X10114
...
999
HI ALT LP KIT GEH-WB28X10115
...
999
REFLECTIVE TAPE 150' ROL GEH-WB06X10694
...
...
...
