product name

GE JGP933SEF1SS Gas Range Or Dual Fuel

Model: JGP933SEF1SS

Save
 Part Not Listed?Part Not Listed?

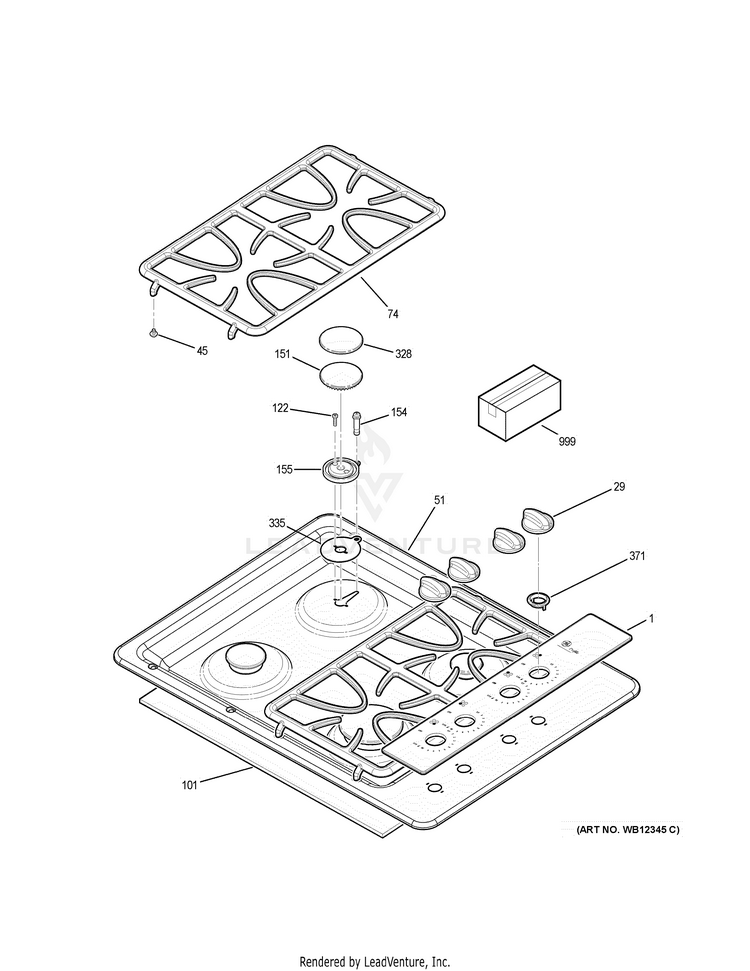

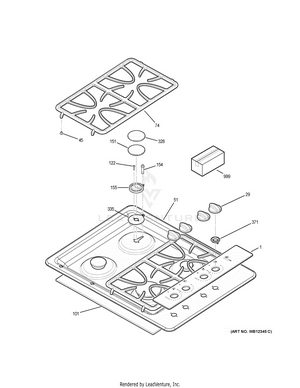

product name

CONTROL PANEL & COOKTOP

...
...
1
CNTL PNL ASM SS GEH-WB57T10200
...
29
KNOB VLV GAS (PRF) GEH-WB03T10171
...
45
GRATE FOOT GEH-WB02T10101
...
51
MAINTOP GEH-WB62T10131
...
74
BURNER GRATE DBL-MBLK GEH-WB31T10047
...
101
INSULATION SIDE GEH-WB35T10050
...
101
GLASS TOP INSULATION GEH-WB35T10052
...
101
INSULATION SDE GEH-WB35T10051
...
122
SCREW 6-32 MCH FHT15 984 GEH-WB01T10049
...
151
BURNER HEAD RF LF LR GEH-WB16T10017
...
151
BURNER HEAD RT FRT GEH-WB16T10019
...
151
BURNER HEAD LT FRT GEH-WB16T10018
...
151
BURNER HEAD SMALL GEH-WB16T10016
...
154
IGNITER-TOP BURNERS GEH-WB13T10010
...
155
BURNER BASE RT FRT GEH-WB16T10015
...
155
BURNER BASE SMALL GEH-WB16T10012
...
155
BURNER BASE LT FRT GEH-WB16T10007
...
155
BURNER BASE-RF GEH-WB16T10006
...
328
BURNER CAP LT FRT -SBK GEH-WB13T10036
...
328
BURNER CAP LT FRT -SBK GEH-WB13T10035
...
328
BURNER CAP RT FRT -SBK GEH-WB13T10033
...
328
BURN CAP RT FT CENT-SBK GEH-WB13T10034
...
335
BURNER GASKET D GEH-WB04T10014
...
335
BURNER GASKET LT RR GEH-WB04T10012
...
335
BURNER GASKET LT RR GEH-WB04T10011
...
335
BURNER GASKET RTR CENT GEH-WB16T10011
...
371
WB32K5024 GEH-WB32K5032
...
999
MINI MANUAL & WD ASM GEH-31-13936
...
999
INSTRUCTION LP GEH-31-10491
...
999
BURNER WIRE HARNESS GEH-WB18T10218
...
999
CLEANER-SS GEH-WB02T10111
...
999
MANUAL-USE & CARE GEH-49-80041
...
999
INSTRUCTIONS INSTALL GEH-31-10489

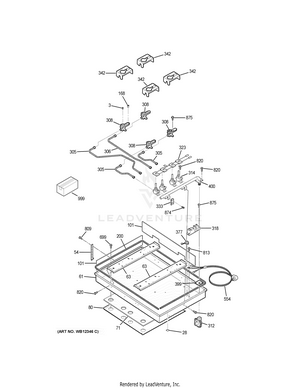

GAS & BURNER PARTS

...
...
3
ORIFICE SPUD ASSY GEH-WB28T10028
...
3
ORIFICE SPUD ASSY-NAT GEH-WB28T10015
...
3
ORIFICE SPUD ASSY-LP GEH-WB28T10016
...
3
ORIFICE SPUD ASSY-LP GEH-WB28T10017
...
3
ORIFICE SPUD RT FRT -LP GEH-WB28T10033
...
3
ORIFICE SPUD ASSY GEH-WB28T10011
...
3
ORIFICE SPUD RT FR-NG GEH-WB28T10027
...
3
ORIFICE SPUD LT FRT GEH-WB28T10014
...
28
PAD FELT GEH-WB02T10103
...
54
HOLD DOWN BRACKET GEH-WB02K5328
...
61
BOTTOM BURN BOX GEH-WB64T10027
...
63
BURNER BRACKET SUPPORT GEH-WB02T10105
...
71
BURNER BOX INSULATION GEH-WB35T10048
...
80
SHIELD BURN BOX BTTM GEH-WB34T10025
...
101
INSULATION SIDE GEH-WB35T10050
...
101
INSULATION SDE GEH-WB35T10051
...
101
GLASS TOP INSULATION GEH-WB35T10052
...
168
CLIP-ELECTRODE GEH-WB01K10007
...
200
GASKET GEH-WB06T10009
...
305
BURNER TUBE-LT FT GEH-WB28T10052
...
305
BURNER TUBE RT FT RT RR GEH-WB28T10051
...
306
BURNER TUBE LT RR GEH-WB28T10053
...
308
BURNER INJET LTRR RT FT GEH-WB28T10010
...
308
BURNER INJET LT FRT GEH-WB28T10029
...
308
BURNER INJET LT FRT GEH-WB28T10032
...
308
BURNER INJET LT FRT GEH-WB28T10031
...
312
PRESSURE REGULATOR GEH-WB19K5019
...
314
GAS VALVE CENTER GEH-WB19T10020
...
314
VALVE GAS 270 GEH-WB19T10021
...
314
VALVE GAS RT FRT GEH-WB19T10023
...
314
VALVE GAS LT RR GEH-WB19T10022
...
318
SPARK MODULE GEH-WB13T10038
...
323
SWITCH HARNESS GEH-WB18T10219
...
333
VALVE CLAMP GEH-WB06X0093
...
342
MAINTOP SUPPORT GEH-WB02T10104
...
377
STRAIN RELIEF-RT ANGLE GEH-WB02K5275
...
399
MANIFOLD SEAL GEH-WB04T10019
...
400
MANIFOLD PIPE 30 GEH-WB28T10054
...
554
RANGE CORD GEH-WB08K5040
...
699
SCREW ST10-16 X 7/16" GEH-WB01K5150
...
809
SCREW GEH-WB01X1137
...
813
SCREW GROUND GEH-WB01X1261
...
820
SCREW, TRANSFORMER GEH-WB01X1424
...
874
SCREW GEH-WB01M0014
...
875
SCREW 8-18 AB HXW 3/8 GEH-WH02X0930
...
999
INSTRUCTION LP GEH-31-10491
...
999
MINI MANUAL & WD ASM GEH-31-13936
...
999
CLEANER-SS GEH-WB02T10111
...
999
BURNER WIRE HARNESS GEH-WB18T10218
...
999
INSTRUCTIONS INSTALL GEH-31-10489
...
999
MANUAL-USE & CARE GEH-49-80041
...
...
...
