GE JGP5536SL1SS Gas Range Or Dual Fuel

Model: JGP5536SL1SS

Save
 Part Not Listed?Part Not Listed?
product name

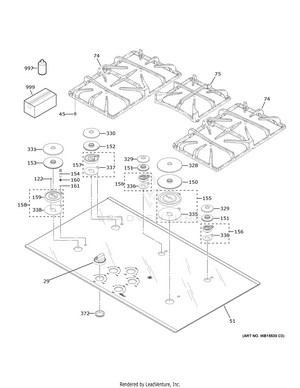

CONTROL PANEL & COOKTOP

...
...
10
TRIM ASM SS 30" GEH-WB07X27420
...
29
KNOB ASM SS GEH-WB03X29300
...
45
GRATE FOOT GEH-WB02T10461
...
51
MAINTOP GLASS AND TRIM ASM 36" BK GEH-WB62X29346
...
74
GRATE ASM GEH-WB31T10084
...
75
GRATE ASM GEH-WB31T10091
...
122
SCREW 6-32 MCH FHT15 984 GEH-WB01T10049
...
150
HEAD BURNER D GEH-WB16T10037
...
151
HEAD BURNER H GEH-WB16T10034
...
152
HEAD BURNER B GEH-WB16T10035
...
153
HEAD BURNER C GEH-WB16T10036
...
154
IGNITER GEH-WB13X27058
...
155
BASE BURNER RT FRT GEH-WB16T10032
...
156
BURNER BASE SMALL GEH-WB16T10031
...
157
BASE BURNER MED GEH-WB16T10030
...
158
BASE BURNER LARGE GEH-WB16T10033
...
159
BASE BURNER LARGE GEH-WB16T10025
...
160
SPRING GEH-WB09T10010
...
161
CLIP RING GEH-WB02T10304
...
328
CAP BURNER D (BK) GEH-WB13T10063
...
329
CAP BURNER H (BK) GEH-WB13T10060
...
330
CAP BURNER B (BK) GEH-WB13T10061
...
331
CAP BURNER C (BK) GEH-WB13T10062
...
335
BURNER GASKET D GEH-WB04T10014
...
336
BURNER GASKET RTR CENT GEH-WB16T10011
...
337
BURNER GASKET LT RR GEH-WB04T10011
...
338
BURNER GASKET LT RR GEH-WB04T10012
...
372
CONTROL SEAL GEH-WB04T10015
...
997
GLASS CLEANER GEH-WB64X0093
...
999
PM MINI MANUAL AND WIRING GEH-31-2001108
...
999
PM INSTALL INSTRUCTIONS GEH-31-2001096
...
999
PM INSTALL INSTRUCTIONS GEH-31-2001104
...
999
PM OWNERS MANUAL GEH-49-2001091

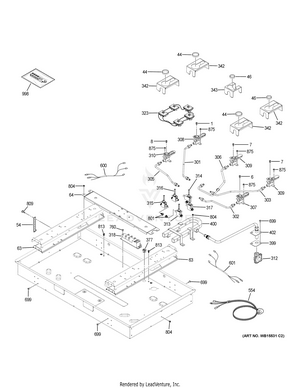

GAS & BURNER PARTS

...
...
1
ORIFICE SPUD LT FRT GEH-WB28T10014
...
6
ORIFICE SPUD RT FR-NG GEH-WB28T10027
...
7
ORIFICE SPUD ASSY GEH-WB28T10028
...
8
ORIFICE SPUD ASSY-LT FRT GEH-WB28T10030
...
44
BURNER GROMMET-LGE GEH-WB02T10095
...
46
BURNER GROMMET-SM GEH-WB02T10096
...
54
HOLD DOWN BRACKET GEH-WB02K5328
...
63
BRACKET BURN SUPT GEH-WB02T10262
...
64
BURNER SUPPORT BRACKET GEH-WB02X29000
...
301
GAS TUBE ASM LR GEH-WB28X29338
...
302
GAS TUBE ASM RF GEH-WB28X29335
...
303
GAS TUBE ASM RR GEH-WB28X29337
...
305
GAS TUBE ASM LF GEH-WB28X29336
...
306
GAS TUBE ASM MAIN CTR GEH-WB28X30164
...
307
BURNER INJET ASM GEH-WB28X32486
...
308
BURNER INJET ASM GEH-WB28X32488
...
309
BURNER INJET ASM GEH-WB28X32487
...
310
BURNER INJET ASM GEH-WB28X32485
...
312
REGULATOR CONVERT PRESS GEH-WB19T10078
...
313
GAS VALVE RF GEH-WB21X29344
...
314
GAS VALVE CTR GEH-WB21X29345
...
315
GAS VALVE LF GEH-WB21X29341
...
316
GAS VALVE LR GEH-WB21X29342
...
317
GAS VALVE RR GEH-WB21X29343
...
318
SPARK MODULE (0+6) GEH-WB13T10047
...
323
HARNESS AND SWITCH ASM GEH-WB18X31384
...
342
MAINTOP SUPPORT GEH-WB02T10102
...
343
MAINTOP SUPPORT GEH-WB02T10104
...
377
STRAIN RELIEF-RT ANGLE GEH-WB02K5275
...
399
MANIFOLD SEAL GEH-WB35X30709
...
400
MANIFOLD TUBE GEH-WB28X29293
...
402
INLET GAS TUBE ASM GEH-WB28X29340
...
554
CORD RANGE GEH-WB18X25912
...
600
IGNITERS AND HARNESS ASM LT GEH-WB18X29348
...
601
IGNITERS AND HARNESS ASM RT GEH-WB18X29347
...
699
SCREW ST10-16 X 7/16" GEH-WB01K5150
...
760
SCREW GEH-WB01K5028
...
801
SCR 8 HD 1/4 - 20 GEH-WB01K10067
...
804
SCR 8-18 GEH-WB01X24092
...
809
SCREW GEH-WB01X1137
...
813
SCR 10-32 GX HXW 7/16 S GEH-WS02X10087
...
875
WZ4X245D GEH-WB01T10046
...
998
NG HIGH ALTITUDE CONVERSION KIT GEH-WB28X29863
...
998
LP CONVERSION KIT GEH-WB28X29961
...
998
LP HIGH ALTITUDE CONVERSION KIT GEH-WB28X29860
...
...
...
