GE JGBS10DEK1WW Gas Range Or Dual Fuel

Model: JGBS10DEK1WW

Save
 Part Not Listed?Part Not Listed?
product name

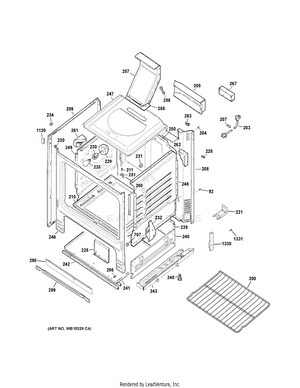

BODY PARTS

...
...
92
SCREW GROUND GEH-WB01X1261
...
200
OVEN RACK GEH-WB48X20249
...
203
LINE CORD GEH-WB18K10036
...
204
SCREW (BLK) GEH-WB01K0042
...
205
COVER BACK PANEL GEH-WB34K10144
...
206
SCREW GEH-WB01K10091
...
207
CLAMP CABLE GEH-WB02K0036
...
208
RANGE BACK GEH-WB63K0020
...
209
PANEL SIDE GEH-WB56X26931
...
210
BOTTOM OVEN GEH-WB35K10035
...
211
BOTTOM OVEN SCREW GEH-WB01K0005
...
220
GROMMET GEH-WB02K0008
...
221
CLIP CAPILLARY GEH-WB02K0010
...
225
SHIELD VALVE GEH-WB34K0002
...
228
CLIP WIRE GEH-WB02X7066
...
229
HOUSING RECEPTACLE GEH-WB08K0001
...
230
RECEPTACLE PUSH-IN GEH-WB08T10026
...
231
BRACKET ANTI-TIP ASM GEH-WB02K10254
...
232
HINGE GUARD RIGHT GEH-WB34K0003
...
232
HINGE GUARD LEFT GEH-WB34K0004
...
234
GUIDE SUPPORT RGTP GEH-WB02K0066
...
235
40A15 GEH-STD372401
...
239
PANEL REAR BROIL GEH-WB63K0001
...
240
PANEL BROILER GEH-WB63X26890
...
241
BOTTOM RANGE GEH-WB63K10029
...
242
BRACE BOTTOM GEH-WB63K0005
...
243
SUPPORT BASE RT GEH-WB63X20215
...
243
SUPPORT BASE LT GEH-WB63X20216
...
245
LEG LEVELER GEH-WB02K10182
...
246
FRAME WELD ASM GEH-WB63X20251
...
247
OVEN TOP GEH-WB53K10002
...
248
OVEN SIDE RIGHT GEH-WB53K10034
...
249
OVEN SIDE LEFT GEH-WB53K10035
...
250
OVEN BACK 24 INCH GEH-WB53K0004
...
251
ANGLE SUPPORT GEH-WB02K0003
...
256
GASKET VENT GEH-WB32K0001
...
257
VENT ASM GEH-WB38K10001
...
258
BRACE VENT GEH-WB38K0002
...
260
GASKET OVEN SEAL LG GEH-WB32K0002
...
261
INSULATION OVEN WRAP GEH-WB35K10157
...
262
INSULATION OVEN BACK GEH-WB35K0016
...
267
COUNTERWEIGHT GEH-WB06K10002
...
283
CLIP CABLE GEH-WB02K0031
...
290
SHIELD RADIATION GEH-WB34K0012
...
299
BRACKET SUPPORT GEH-WB01K0043
...
707
CLIP WIRE GEH-WB02K10267
...
1120
BUMPER GEH-WB02K10179
...
1330
RECEIVER HINGE GEH-WB10X20220
...
1331
SCREW MTG HINGE (TORX) GEH-WB01K0053

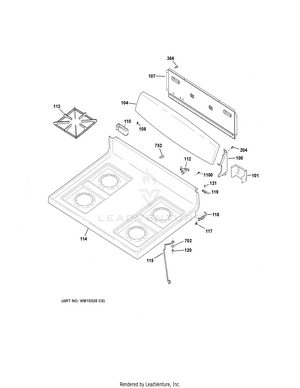

CONTROL PANEL & COOKTOP

...
...
100
END SUPPORT RIGHT GEH-WB07X20277
...
100
END SUPPORT LEFT GEH-WB07X20278
...
101
BRACKET COOK TOP GEH-WB37X20193
...
101
BRACKET COOK TOP GEH-WB37X20196
...
104
TRIM CONTROL GEH-WB36X21594
...
107
COVER BACK GEH-WB34X20669
...
108
SCREW WH GEH-WB01X5874
...
110
SPARK MODULE 2+0 GEH-WB13K10028
...
112
GUIDE HOLDER RIGHT GEH-WB14K0001
...
112
GUIDE HOLDER LEFT GEH-WB14K0002
...
113
GRATE (BLK) GEH-WB31K10028
...
114
RANGETOP STD GEH-WB62X21233
...
115
SUPPORT RANGE TOP GEH-WB06K0008
...
117
PIN LOCATOR FRONT GEH-WB02K0017
...
117
PIN LOCATOR REAER GEH-WB14K10004
...
118
GUIDE SLIDE LEFT GEH-WB14K0004
...
118
GUIDE SLIDE RIGHT GEH-WB14K0003
...
119
PIN HINGE GEH-WB14K0005
...
120
SCREW WASHER ASM GEH-WB01K0045
...
121
SCREW GEH-WB01K0001
...
204
SCREW (BLK) GEH-WB01K0042
...
366
SCREW - DOOR ASM (4 PER) GEH-WB01X0593
...
702
WASHER GEH-WB01K10034
...
752
SCREW 8-18X5/8 HXW GEH-WZ04X0345
...
1100
SCREW 8-18 AB HXW 5/8 S GEH-WB01T10016

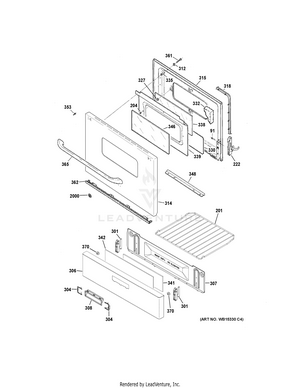

DOOR & DRAWER PARTS

...
...
91
SCREW 10-32 TR T GEH-WB01T10008
...
201
OVEN RACK GEH-WB48X26677
...
204
SCREW (BLK) GEH-WB01K0042
...
222
HINGE DOOR GEH-WB10X21977
...
301
HINGE DOOR GEH-WB10X26678
...
304
CLIP BROIL HANDLE GEH-WB01X26891
...
306
PANEL DRAWER GEH-WB56X26688
...
307
LINER DRAWER GEH-WB56X26676
...
308
HANDLE BROIL GEH-WB15X26670
...
312
CONTOURED WASHER GEH-WB01X0119
...
314
PANEL DOOR GEH-WB56X21232
...
315
LINER ASM WELD DOOR GEH-WB56X21217
...
318
GASKET DOOR ASM GEH-WB56X21215
...
327
SPEEDNUT GEH-WB01K10093
...
330
REFLECTOR LG GEH-WB55K0001
...
332
INSULATION DOOR GEH-WB35K10151
...
335
SPACER GEH-WB02K10156
...
338
CRYSTAL WINDOW GEH-WB56K0005
...
339
GUARD INSULATION GEH-WB56K10032
...
341
RANGE SIDE INSULATION GEH-WB35X26709
...
342
PANEL SIDE FOIL GEH-WB35X26892
...
346
CRYSTAL WINDOW GEH-WB57K0018
...
348
CLIP CRYSTAL GEH-WB02K0050
...
353
SCREW 8-22 PL 1HX 71 GEH-WB01K10012
...
361
SCREW 10-16 PL PNT 2.5 S GEH-WB01K0031
...
362
BARRIER DOOR GEH-WB07X20288
...
365
HANDLE WH GEH-WB15K10096
...
370
BUMPER DOOR GEH-WB02K10330
...
2000
GE BADGE GRAY GEH-WB02T10589X

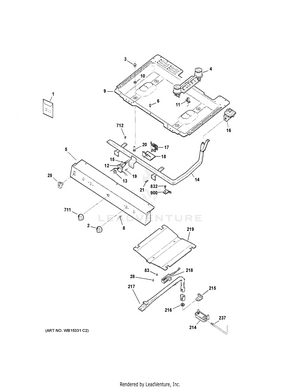

GAS & BURNER PARTS

...
...
1
PM MINI MANUAL GEH-31-17083
...
1
HINGE SERVICE KIT GEH-WB49X21392
...
1
PM GAS QUICK GUIDE GEH-49-85230
...
1
LP CONVERSION INST GEH-31-10927
...
2
KNOB VALVE GEH-WB03X21228
...
3
ORIFICE LP GAS GEH-WB28K0008
...
4
DOUBLE BURNER WB16K10026 GEH-WB16K10003
...
5
MANIFOLD PANEL GEH-WB36X21230
...
6
GROMMET GEH-WB02K0009
...
8
SCREW 8-32 GEH-WB01K10002
...
9
BURNER BOX GEH-WB64K10001
...
10
NUT GEH-WB01K0004
...
11
SPARK ELECTRODE TOP GEH-WB19K10075
...
11
SPARK ELECTRODE TOP GEH-WB19K10076
...
12
HARNESS BURNER BOX GEH-WB34K10117
...
13
COVER VALVE GEH-WB02K0024
...
14
ROUND MANIFOLD PIPE GEH-WB28K10579
...
15
ROUND VALVE BURNER 140 GEH-WB28K10578
...
16
PRESSURE REGULATOR GEH-WB19K10055
...
17
ELECTRIC THERMOSTAT GEH-WB24X20656
...
18
COVER THERMOSTAT GEH-WB02K0006
...
19
SCREW THERMOSTAT GEH-WB01K10080
...
20
TUBE-BURNER RT REAR GEH-WB28K10012
...
20
FRONT TUBE ASSY RIGHT GEH-WB28K10010
...
20
TUBE-BURNER LT REAR GEH-WB28K10011
...
20
FRONT TUBE ASSY LEFT GEH-WB28K10009
...
21
SCREW THERMOSTAT GEH-WB01K0008
...
25
ROCKER LIGHT SWITCH (WH) GEH-WB24K0011
...
28
SCREW MTG IGNITER GEH-WB01K0050
...
83
OVEN ORIFICE SPUD GEH-WB28X21079
...
214
SAFETY VALVE SINGLE GEH-WB21X21212
...
215
BRACKET SAFETY VALVE GEH-WB02K0065
...
216
NUT LOCK GEH-WB01K0006
...
217
BURNER OVEN ASSY GEH-WB16X20253
...
218
IGNITER-OVEN BAKE GEH-WB13K0021
...
219
FLAME SPREADER GEH-WB49K0044
...
237
TUBE VALVE SUPPLY GEH-WB28K0147
...
711
KNOB THERMOSTAT ASM GEH-WB03X21229
...
712
SCREW GEH-WB01K0037
...
832
SCREW GEH-WB01K10043
...
900
ROUND VALVE BRACKET GEH-WB02K10263
...
...
...
