product name

GE JGBP27DEM9WW Gas Range

Model: JGBP27DEM9WW

Save
 Part Not Listed?Part Not Listed?
product name

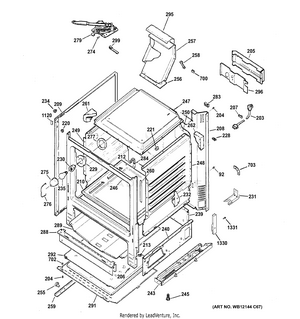

BODY PARTS

...
...
92
SCREW GROUND GEH-WB01X1261
...
203
LINE CORD GEH-WB18K0007
...
204
SCREW 8-18X5/8 HXW GEH-WZ04X0345
...
205
COVER BACK LAMP GEH-WB34K10124
...
206
SCREW GEH-WB01K10091
...
207
CLAMP CABLE GEH-WB02K0036
...
208
RANGE BACK GEH-WB63K10188
...
209
PANEL SIDE GEH-WB56X22009
...
210
BOTTOM OVEN GEH-WB35K10035
...
212
SPEEDNUT GEH-WB01K0002
...
213
NUT SPEED GEH-WB01K0003
...
220
GROMMET GEH-WB02K0008
...
221
CLIP CAPILLARY GEH-WB02K0010
...
228
CLIP WIRE GEH-WB02X7066
...
229
HOUSING RECEPTACLE GEH-WB08K0001
...
230
RECEPTACLE PUSH-IN GEH-WB08T10026
...
231
BRACKET ANTI-TIP ASM GEH-WB02K10254
...
232
HINGE GUARD LEFT GEH-WB34K0004
...
232
HINGE GUARD RIGHT GEH-WB34K0003
...
234
GUIDE SUPPORT RGTP GEH-WB02K0066
...
235
40A15 GEH-STD372401
...
239
PANEL REAR BROIL GEH-WB63K10203
...
240
PANEL SIDE BROIL LFT GEH-WB63K0003
...
240
PANEL SIDE BROIL RT GEH-WB63K0002
...
243
SUPPORT BASE RIGHT GEH-WB63K10232
...
243
SUPPORT BASE LEFT GEH-WB63K10233
...
245
LEG LEVELER GEH-WB02K10182
...
246
FRAME WELD ASM GEH-WB63X20290
...
247
OVEN TOP GEH-WB53K10004
...
248
OVEN SIDE RIGHT GEH-WB53K10034
...
249
OVEN SIDE LEFT GEH-WB53K10035
...
250
OVEN BACK GEH-WB53K10028
...
255
DRAWER SUPPORT GEH-WB02K10163
...
256
GASKET VENT GEH-WB32K0001
...
257
VENT ASM GEH-WB38K10001
...
258
BRACE VENT GEH-WB38K0002
...
259
RAIL DRAWER GEH-WB39K0016
...
260
GASKET OVEN SEAL LG GEH-WB32K0002
...
261
INSULATION OVEN WRAP GEH-WB35K10210
...
262
INSULATION OVEN BACK GEH-WB35K10161
...
274
SCREW LATCH GEH-WB01K0044
...
275
GLASS OVEN LAMP GEH-WB08K0005
...
276
BAIL GEH-WB02K0027
...
277
GASKET OVEN LIGHT GEH-WB32K0005
...
279
LATCH ASSEMBLY GEH-WB02K10148
...
283
CLIP CABLE GEH-WB02K0031
...
284
BOTTOM OVEN BRACKT SUPPO GEH-WB02K0032
...
288
BRACE BOTTOM GEH-WB63K0015
...
289
LOWER HEAT SHIELD GEH-WB34K10086
...
291
GUARD BOTTOM GEH-WB63K0016
...
292
BOTTOM INNER GUARD GEH-WB63K10187
...
295
VENT INSULATION GEH-WB35K10003
...
296
SHIELD HEAT INNER GEH-WB34K0013
...
299
CLIP WIRE GEH-WB02K0038
...
700
RETAINER-INSULATION VENT GEH-WB02K0030
...
702
WASHER GEH-WB01K10034
...
703
BRACKET OVEN CORNER GEH-WB02K0041
...
1120
BUMPER GEH-WB02K10179
...
1330
RECEIVER HINGE GEH-WB10X20220
...
1331
SCREW MTG HINGE (TORX) GEH-WB01K0053

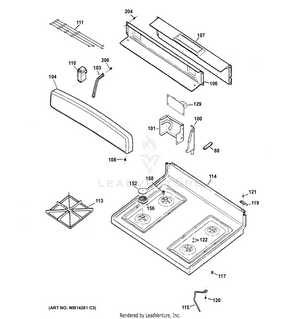

CONTROL PANEL & COOKTOP

...
...
88
PAD FELT (2") GEH-WB02K0062
...
100
END SUPPORT RT GEH-WB07K10265
...
100
END SUPPORT LF GEH-WB07K10266
...
101
BRACKET COOK TOP LF GEH-WB37K10004
...
101
BRACKET COOK TOP RG GEH-WB37K10003
...
103
BRACKET CONTROL GEH-WB02K10155
...
104
TRIM CONTROL GEH-WB36K10670
...
106
COVER BACK UPPER GEH-WB34K10093
...
107
COVER BACK LOWER GEH-WB34K10129
...
108
SCREW (CR) GEH-WB01X5364
...
110
SPARK MODULE 4+0 GEH-WB13K10029
...
111
ELECTRODES & HARNESS HV GEH-WB18K10098
...
113
GRATE (GRAY) GEH-WB31K10035
...
114
RANGE TOP S.B. GEH-WB62K10159
...
115
SUPPORT RANGETOP GEH-WB02K0091
...
117
PIN LOCATOR FRONT GEH-WB02K0017
...
119
PIN HINGE GEH-WB14K0005
...
120
SCREW WASHER ASM GEH-WB01K0045
...
121
SCREW 12-14, 5/8S GEH-WB01K0078
...
121
SCREW GEH-WB01K0001
...
122
CKT SCREW GEH-WB01K10106
...
129
ELECTRONIC TIMER GEH-WB11K10041
...
152
BURNER CAP (GRAY) MED GEH-WB29K10004
...
156
BURNER MEDIUM (9500) GEH-WB16K10055
...
168
CLIP ELECTRODE GEH-WB01K10112
...
204
SCREW 8-18X5/8 HXW GEH-WZ04X0345
...
206
SCREW GEH-WB01K10091

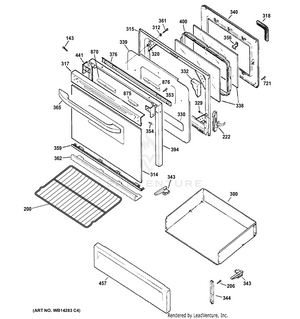

DOOR & DRAWER PARTS

...
...
143
SCREW WH GEH-WB01X5874
...
200
RACK OVEN GEH-WB48K10034
...
206
SCREW GEH-WB01K10091
...
222
HINGE DOOR GEH-WB10X21982
...
300
DRAWER BODY GEH-WB58K10015
...
312
CONTOURED WASHER GEH-WB01X0119
...
314
GLASS OVEN DOOR GEH-WB57K10110
...
315
LINER ASM WELD DOOR GEH-WB56X21344
...
317
TRIM TOP DOOR (WH) GEH-WB07K0400
...
318
GASKET ASM. DOOR GEH-WB04K10029
...
320
SPACER GEH-WB02K10161
...
330
REFLECTOR 9.5 INCH GEH-WB35K0022
...
332
INSULATION DOOR GEH-WB35K10084
...
332
INSULATION SIDE DOOR GEH-WB35K10149
...
332
INSULATION BOTTOM DOOR GEH-WB35K10150
...
338
CRYSTAL WINDOW GEH-WB56X23809
...
339
GUARD INSULATION GEH-WB56K0012
...
340
PANEL ASM WELD INNER GEH-WB55K0013
...
343
GLIDER DRAWER GEH-WB02K0068
...
344
BRACKET MOUNTING DRAWER GEH-WB39K0020
...
353
SCREW 8-22 PL 1HX 71 GEH-WB01K10012
...
354
SCREW MTG END CAP (WH) GEH-WB01K0066
...
356
CLIP WINDOW GEH-WB02K0056
...
359
TRIM BOTTOM ASM GEH-WB07K10250
...
361
SCR 10-16PL PNT 2.22S GEH-WB01K10073
...
362
BARRIER DOOR GEH-WB07X20288
...
365
HANDLE WH GEH-WB15K10096
...
376
DEFLECTOR HEAT GEH-WB35K0023
...
394
TRIM DOOR (WH) GEH-WB07X20359
...
400
WINDOW SPACER ASM GEH-WB34K10087
...
441
END CAP DOOR - RH (WH) GEH-WB07X7187
...
441
END CAP DOOR - LF (WH) GEH-WB07X7188
...
457
PANEL DRAWER (WHITE) GEH-WB36K10033
...
721
SCREW - DOOR ASM (4 PER) GEH-WB01X0593
...
870
COVER VENT GEH-WB35K10085
...
875
COVER VENT GEH-WB35K10086
...
876
COVER VENT GEH-WB35K10087

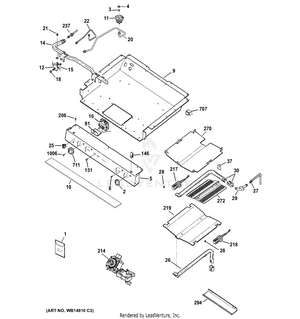

GAS & BURNER PARTS

...
...
1
PM INSTALL INSTRUCTIONS GEH-31-10781
...
1
CONVERSION STEPS SHEET GEH-31-21390
...
1
PM MINI MANUAL / ELEC DI GEH-31-21329
...
1
PM OWNERS AND INSTALL GEH-49-85205
...
2
KNOB MINIVALVE GEH-WB03K10218
...
3
ORIFICE-LP 89MM GEH-WB28K10023
...
4
ECONOMIC NUT GEH-WB01K10037
...
5
MANIFOLD PANEL GEH-WB36K10671
...
8
SCREW 8-32 GEH-WB01K10002
...
9
BOX BURNER SP GEH-WB63K10193
...
10
INSULATION BURNER BOX GEH-WB35K10029
...
11
CKT BRACKET MDM & LGE GEH-WB02K10361
...
12
HARNESS BURNER BOX GEH-WB24K10071
...
14
MANIFOLD PIPE GEH-WB28K10377
...
15
VALVE BURNER 140 GEH-WB21K0038
...
16
THERMOSTAT SCG GEH-WB20K10021
...
18
COVER VALVE GEH-WB02K0024
...
20
REAR ORIFICE H L 150N 95 GEH-WB28K10191
...
20
REAR ORIFICE H R 150N 95 GEH-WB28K10188
...
21
SCREW-MTG VALVE BURNER GEH-WB01K0083
...
22
FRONT ORIFICE HOLDER GEH-WB28K10190
...
22
FRONT ORIFICE H R 150N 9 GEH-WB28K10192
...
25
ROCKER LIGHT SWITCH (WH) GEH-WB24K0011
...
26
BURNER BAKE GEH-WB16K10035
...
27
TUBE BURNER SUPPLY GEH-WB28X20296
...
28
SCREW MTG IGNITER GEH-WB01K0050
...
29
ELBOW HI BROIL GEH-WB28K10310
...
30
BURNER BROIL GEH-WB16K10067
...
37
IGNITER COVER GEH-WB34K0014
...
81
COVER THERMOSTAT GEH-WB37K10012
...
131
LENS GEH-WB25K0002
...
146
CLIP RANGETOP GEH-WB02K0052
...
206
SCREW GEH-WB01K10091
...
214
VALVE CONTROL ASM NOR. D GEH-WB19K10041
...
217
IGNITER-OVEN BAKE GEH-WB13K0021
...
218
IGNITER GLOWBAR GEH-WB13K10026
...
219
FLAME SPREADER GEH-WB49K0044
...
237
TUBE MANIFOLD SUPPLY ASM GEH-WB28K10477
...
270
DEFLECTOR GEH-WB49K10025
...
272
SHIELD BROIL GEH-WB49K10026
...
294
COVER TERMINAL GEH-WB63K10040
...
707
CLIP WIRE GEH-WB02K10267
...
711
KNOB THERMOSTAT ASM GEH-WB03K10224
...
1006
SCREW 8-32 TPT FLR 215 S GEH-WB01T10020
...
...
...
