product name

GE GPV10FGNBBB Refrigerator

Model: GPV10FGNBBB

Save
 Part Not Listed?Part Not Listed?
product name

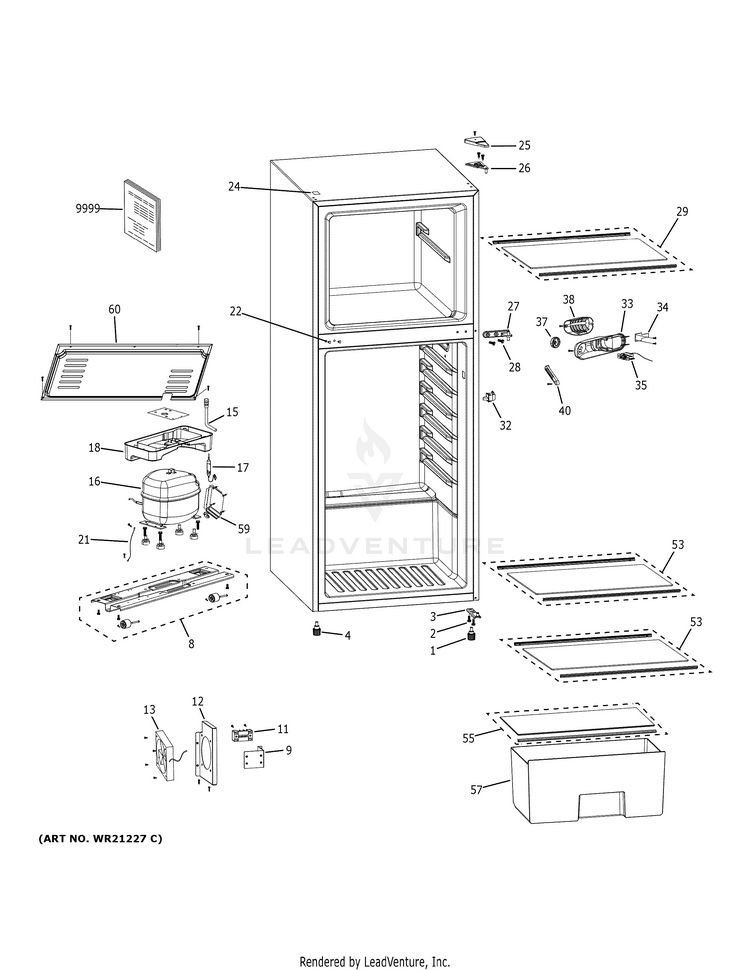

CABINET

...
...
1
LEVELING LEG LEFT GEH-WR01X29272
...
2
SCREW GEH-WR01X10829
...
3
BOTTOM HINGE GEH-WR13X10903
...
4
LEVELING LEG RIGHT GEH-WR01X29273
...
8
COMPRESSOR BASE GEH-WR17X32533
...
9
TERMINAL BLOCK MOUNTING PLATE GEH-WR02X32534
...
11
TERMINAL BLOCK GEH-WR55X32535
...
12
FAN SUPPORT GEH-WR02X32734
...
13
DC FAN GEH-WR60X32537
...
15
ACCESS VALVE GEH-WJ56X61
...
16
COMPRESSOR GEH-WR87X32538
...
17
DRIER GEH-WR86X93
...
18
DRIP TRAY GEH-WR14X32539
...
21
GROUNDING WIRE GEH-WR23X10615
...
22
SCREW PLUG GEH-WR01X32540
...
24
TOP HINGE HOLE COVER BLACK GEH-WR13X30954
...
25
UPPER HINGE COVER GEH-WR02X13433
...
26
TOP HINGE GEH-WR13X32541
...
27
MIDDLE HINGE GEH-WR13X32542
...
28
HEXAGON BOLT CROSS RECESSED GEH-WR01X29268
...
29
FREEZER GLASS SHELF GEH-WR71X32543
...
32
LAMP SWITCH GEH-WR02X31715
...
33
THERMOSTAT BOX GEH-WR17X12941
...
34
LED LAMP GEH-WR55X32544
...
35
THERMOSTAT GEH-WR09X32545
...
37
CONTROL KNOB GEH-WR02X13435
...
38
LAMP SHADE GEH-WR02X13436
...
40
THERMOSTAT PROBE COVER GEH-WR02X32546
...
53
REFRIGERATOR GLASS SHELF GEH-WR71X32551
...
55
CRISPER COVER GEH-WR71X32552
...
57
CRISPER DRAWER GEH-WR71X32553
...
59
CONTROL BOARD GEH-WR87X32735
...
60
MACHINE COVER GEH-WR13X32718
...
9999
PM MINI MANUAL AND WIRING GEH-31-1000420

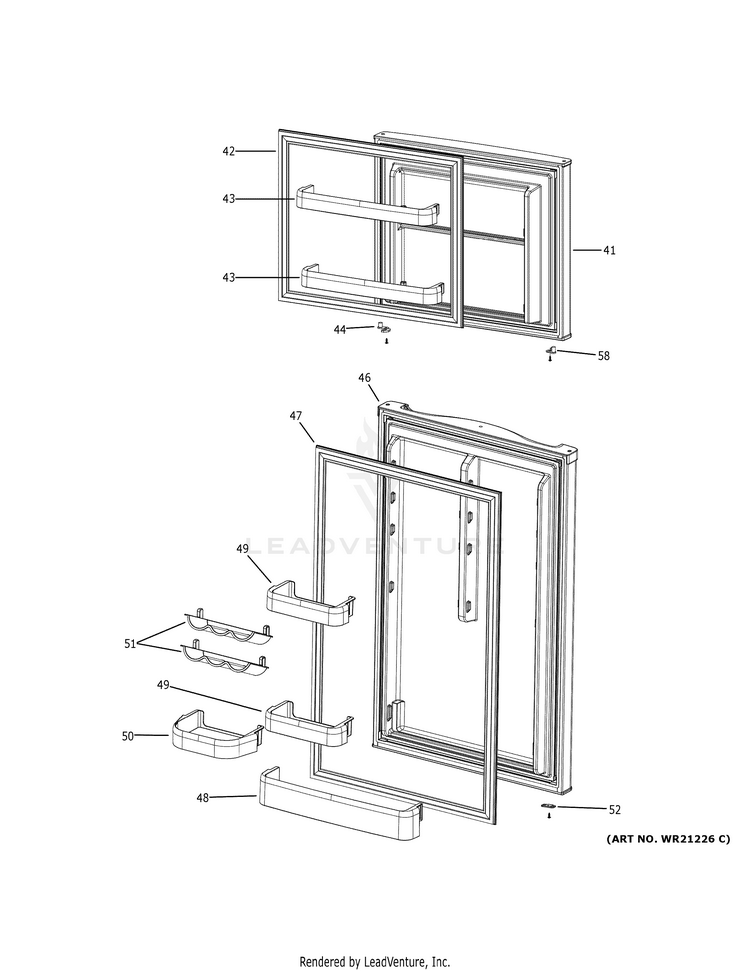

DOORS

...
...
41
BLACK FREEZER DOOR GEH-WR78X32429
...
42
REFRIGERATOR - FREEZER DOOR GASKET BLACK GEH-WR14X29278
...
43
FREEZER DOOR RAIL BIN GEH-WR71X29260
...
44
RIGHT DOOR HINGE BUCKLE GEH-WR01X30952
...
46
BLACK FRESH FOOD DOOR GEH-WR78X32430
...
47
REFRIGERATOR - FRESH FOOD DOOR GASKET BL GEH-WR14X29283
...
48
REFRIGERATOR BOTTOM DOOR BIN GEH-WR71X32547
...
49
REFRIGERATOR SMALL DOOR BIN GEH-WR71X32548
...
50
GALLON DOOR BIN GEH-WR71X32549
...
51
COLA DOOR BIN GEH-WR71X32550
...
52
DOOR STOP GEH-WR17X22162
...
58
LEFT DOOR HINGE BUCKLE GEH-WR01X32412
...
...
...
