GE GNW128SSM0WW Washer

Model: GNW128SSM0WW

Save
 Part Not Listed?Part Not Listed?
product name

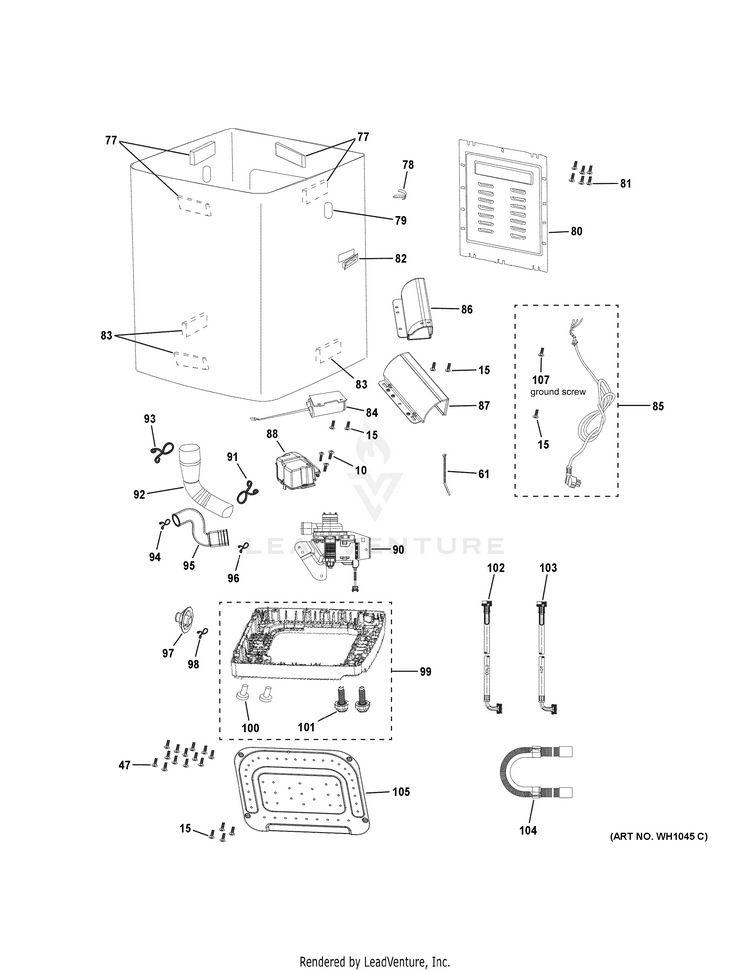

CABINET

...
...
10
SCREW GEH-WH02X26247
...
15
TAPPING SCREW GEH-WH02X26155
...
47
TAPPING SCREW GEH-WH02X26189
...
61
LONG WIRE TIE GEH-WH01X27678
...
77
FELT PAD GEH-WH08X26934
...
78
HARNESS CLIP GEH-WH02X26928
...
79
HOOK GEH-WH01X26929
...
80
REAR ACCESS PANEL GEH-WH46X26926
...
81
CAPACITOR SCREWS GEH-WH02X26927
...
82
CABINET HANDLE GEH-WH01X26974
...
83
LOWER CABINET FOAM PAD GEH-WH08X27270
...
84
CAPACITOR GEH-WH12X26932
...
85
POWER CORD ASM GEH-WH19X27454
...
86
PROTECTIVE COVER GEH-WH19X27455
...
87
OUTER HARNESS PROTECTIVE COVER GEH-WH19X27677
...
88
PUMP COVER GEH-WH23X27456
...
90
PUMP GEH-WH23X28134
...
91
INTERNAL DRAIN HOSE CLAMP TUB OUTLET GEH-WH41X26954
...
92
INTERNAL TUB TO PUMP DRAIN HOSE GEH-WH41X26956
...
93
INTERNAL DRAIN HOSE CLAMP - PUMP INLET GEH-WH41X26955
...
94
INTERNAL DRAIN HOSE TO HOSE ADAPTER CLAM GEH-WH41X26957
...
95
INTERNAL DRAIN HOSE PUMP TO HOSE ADAPTE GEH-WH41X26958
...
96
INTERNAL DRAIN HOSE CLAMP TO PUMP OUTLE GEH-WH41X26959
...
97
DRAIN BUSHING GEH-WH41X27462
...
98
EXTERNAL DRAIN HOSE CLAMP GEH-WH41X26962
...
99
BASE GEH-WH46X26960
...
100
FIXED FOOT GEH-WH46X27463
...
101
LEVELING LEGS GEH-WH46X26965
...
102
INLET FILL HOSE COLD GEH-WH41X27464
...
103
INLET FILL HOSE HOT GEH-WH41X27465
...
104
DRAIN HOSE ASSEMBLY GEH-WH41X26963
...
105
ACCESS PANEL BOTTOM GEH-WH46X26966
...
107
GROUND SCREW GEH-WH02X27451

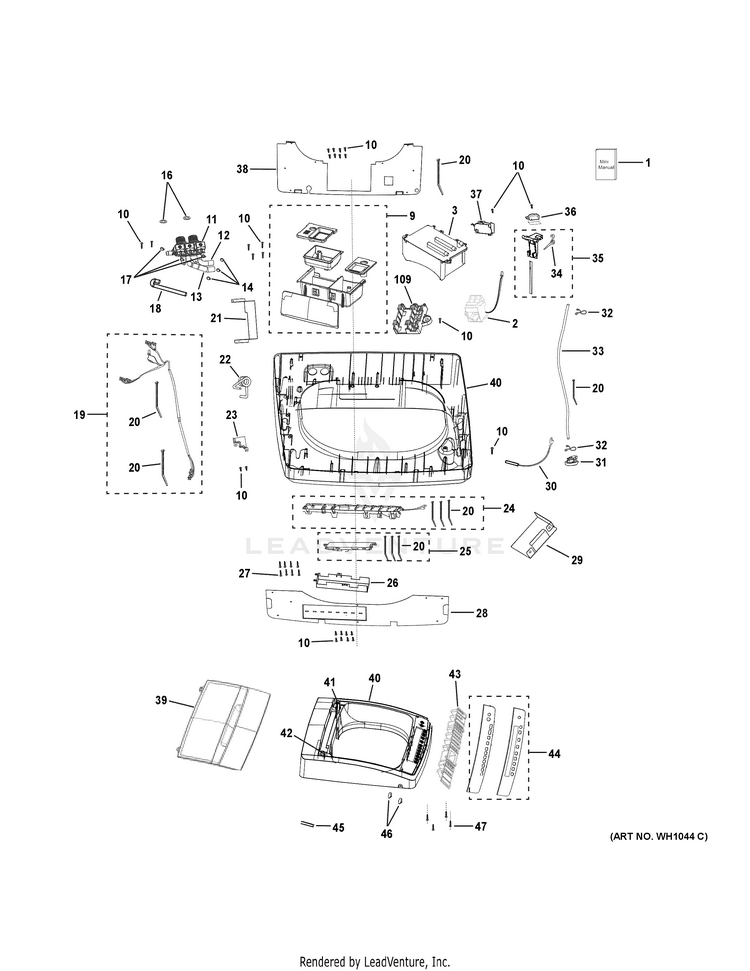

CONTROLS & LID

...
...
1
PM OWNERS MANUAL GEH-49-90587
...
1
PM MINI MANUAL GEH-31-16936
...
2
RJ45 PORT GEH-WH18X26847
...
3
DISPENSER BOX GEH-WH47X26967
...
9
DISPENSER DRAWER ASM GEH-WH47X26968
...
10
SCREW GEH-WH02X26247
...
11
WATER VALVE INLET TUBE GEH-WH13X26856
...
12
WATER VALVE INLET TUBE HOT GEH-WH13X26858
...
13
WATER VALVE INLET TUBE COMBINED GEH-WH13X27262
...
14
WATER VALVE INLET TUBE CLAMP GEH-WH13X26857
...
16
WATER VALVE ABSORPTION GASKET GEH-WH08X26187
...
17
WATER VALVE INLET TUBE CLAMP GEH-WH13X26859
...
18
WATER VALVE INLET TUBE COLD GEH-WH13X26975
...
19
HARNESS MAIN GEH-WH19X27439
...
20
WIRE TIE GEH-WH02X26866
...
21
THERMOVOLT WATER VALVE GEH-WH13X27440
...
22
LID SPRING GEH-WH02X26860
...
23
HINGE SPRING COVER GEH-WH44X26861
...
24
USER INTERFACE BOARD GEH-WH18X27441
...
25
MAIN BOARD GEH-WH18X27442
...
26
MAIN BOARD SHIELD METAL GEH-WH18X26864
...
27
FRONT DISPENSER HOUSING SCREW ST4X14 GEH-WH02X26514
...
28
TOP COVER SPLASH COVER FRONT GEH-WH44X27477
...
29
THERMOVOLT PCB GEH-WH18X27443
...
30
LID REED SWITCH GEH-WH44X27476
...
31
WATER LEVEL SENSOR GEH-WH12X26869
...
32
WATER LEVEL SENSOR TUBE CLAMP GEH-WH02X26870
...
33
WATER LEVEL SENSOR TUBE GEH-WH41X26871
...
34
OUT OF BALANCE SWITCH LEVER SPRING GEH-WH02X26900
...
35
OUT OF BALANCE SWITCH LEVER GEH-WH01X27444
...
36
OUT OF BALANCE SWITCH GEH-WH12X26877
...
37
LID SWITCH GEH-WH12X26878
...
38
TOP COVER SPLASH COVER REAR GEH-WH15X26879
...
39
LID GEH-WH44X26880
...
40
TOP COVER GEH-WH44X26846
...
41
LEFT HINGE GEH-WH44X27264
...
42
RIGHT HINGE GEH-WH44X27263
...
43
LIGHT PIPE GEH-WH42X26901
...
44
FRONT CONTROL PANEL GEH-WH42X27445
...
45
LID HINGE CLIP GEH-WH02X26903
...
46
SCREW COVER GEH-WH02X26902
...
47
TAPPING SCREW GEH-WH02X26189
...
109
HARNESS CONNECTOR HOLDER GEH-WH19X27478

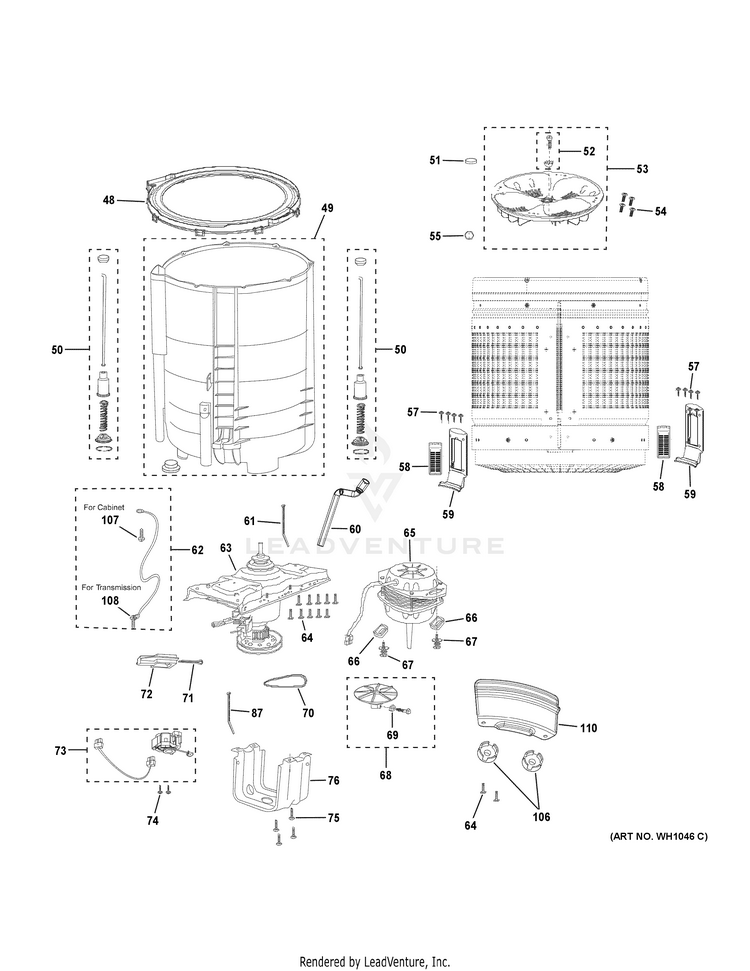

TUB & MOTOR

...
...
48
TUB COVER GEH-WH45X26894
...
49
TUB ASSEMBLY GEH-WH45X26895
...
50
ROD AND SPRING ASSEMBLY QTY 4 GEH-WH16X27446
...
51
IMPELLER CAP GEH-WH43X26916
...
52
IMPELLER MOUNTING BOLT AND WASHER GEH-WH02X26896
...
53
IMPELLER GEH-WH43X27447
...
54
BOLT COMPONENTS GEH-WH02X27266
...
55
IMPELLER WASHER GEH-WH02X26898
...
57
TAPPING SCREW GEH-WH02X26188
...
58
LINT FILTER GEH-WH01X27265
...
59
LINT FILTER HOUSING GEH-WH01X26917
...
60
OVERFLOW PIPE GEH-WH34X27674
...
61
LONG WIRE TIE GEH-WH01X27678
...
62
GROUND WIRE AND FASTENERS GEH-WH19X27450
...
63
TRANSMISSION AND PLATFORM ASM GEH-WH38X27453
...
64
TRANSMISSION AND PLATFORM ASSEMBLY BOLT GEH-WH02X26904
...
65
DRIVE MOTOR GEH-WH20X26918
...
66
DRIVE MOTOR INSULATOR GEH-WH08X26919
...
67
DRIVE MOTOR BOLT GEH-WH02X26905
...
68
BELT PULLEY GEH-WH07X27267
...
69
MOTOR PULLEY BOLT GEH-WH02X27268
...
70
V-BELT GEH-WH07X27269
...
71
COTTER PIN GEH-WH02X26920
...
72
CONNECTING ARM GEH-WH01X26921
...
73
DRAIN/MODE SHIFT MOTOR GEH-WH05X26922
...
74
DRAIN/MODE SHIFTER BOLT GEH-WH02X26923
...
75
BOLT GEH-WH02X26924
...
76
BELT PROTECTOR GEH-WH15X26925
...
87
OUTER HARNESS PROTECTIVE COVER GEH-WH19X27677
...
106
MOTOR COVER FITTING GEH-WH20X27676
...
107
GROUND SCREW GEH-WH02X27451
...
108
GROUND SCREW GEH-WH02X27452
...
110
MOTOR PROTECTIVE COVER GEH-WH20X27675
...
...
...
