product name

GE GLE12HSLARSS Refrigerator

Model: GLE12HSLARSS

Save
 Part Not Listed?Part Not Listed?
product name

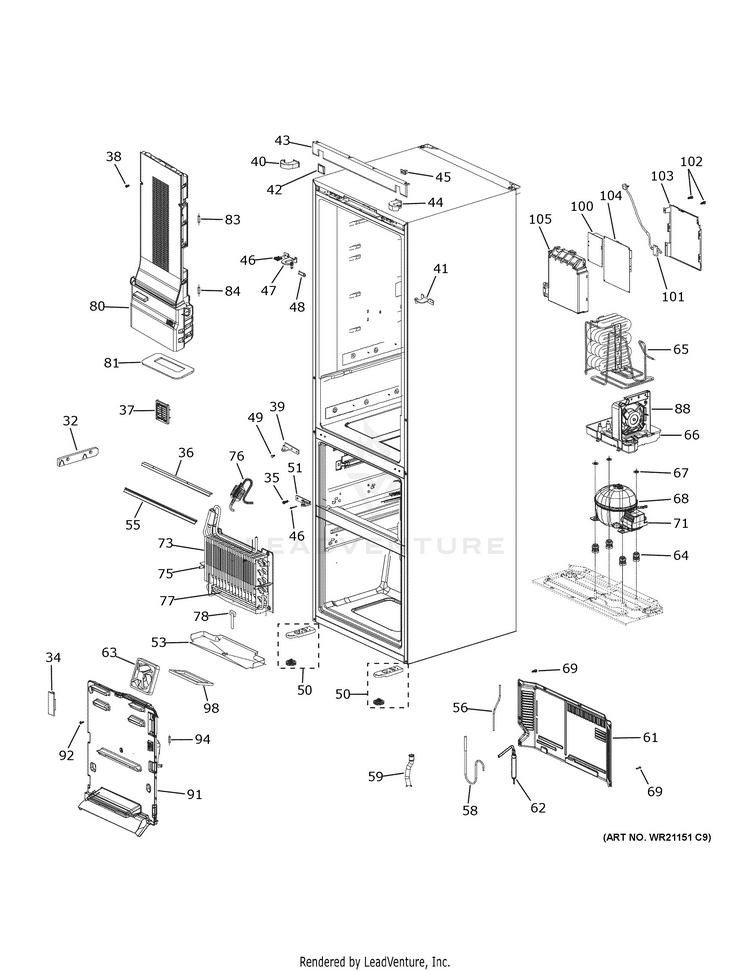

CABINET

...
...
34
HARNESS COVER GEH-WR13X28381
...
35
SCREW M5 X 16 GEH-WR01X28375
...
36
FREEZER MULLION UPPER GASKET GEH-WR14X28377
...
37
FRESH FOOD AIR RETURN DUCT COVER GEH-WR14X28393
...
38
SCREW AIR TOWER GEH-WR01X28394
...
39
LEFT MIDDLE HINGE GEH-WR13X30970
...
40
LEFT HAND TOP HINGE COVER GEH-WR13X28396
...
41
LEFT TOP HINGE & PIN GEH-WR13X30971
...
42
FRONT CAP INSERT GEH-WR01X28367
...
43
TOP FRONT CAP GEH-WR01X28369
...
44
RIGHT HAND TOP HINGE COVER GEH-WR13X28365
...
45
MAGNETIC REED SWITCH GEH-WR55X28366
...
46
SCREW ST3.5 X 9.5 GEH-WR01X27789
...
47
TOP HINGE & PIN GEH-WR13X28363
...
48
FRONT CAP HINGE INSERT GEH-WR01X28364
...
49
PLUG BUTTON WHITE GEH-WR01X28360
...
50
LEVELING LEG GEH-WR01X28530
...
51
MIDDLE HINGE GEH-WR13X28361
...
53
DRAIN PAN GEH-WR14X28371
...
55
FREEZER MULLION LOWER GASKET GEH-WR14X28372
...
56
DISCHARGE TUBE GEH-WR87X28553
...
58
CONNECTING PIPE GEH-WR01X28373
...
59
DRAIN TUBE GEH-WR01X28354
...
61
REAR ACCESS COVER GEH-WR14X28355
...
62
DRYER GEH-WR86X96
...
63
CONDENSER FAN GEH-WR60X29549
...
64
COMPRESSOR GROMMET GEH-WR01X28353
...
65
CONDENSER GEH-WR87X28624
...
66
AUXILIARY CONDENSER DRAIN PAN GEH-WR14X28350
...
67
COMPRESSOR CLIP GEH-WR01X28351
...
68
COMPRESSOR GEH-WR87X28348
...
69
SCREW M4 X 8 GEH-WR01X28349
...
71
INVERTER BOARD GEH-WR55X28370
...
73
EVAPORATOR GEH-WR87X28356
...
75
THERMAL FUSE GEH-WR55X28357
...
76
EVAPORATOR THERMISTOR GEH-WR55X28338
...
77
DEFROST HEATER GEH-WR87X28340
...
80
FRESH FOOD AIR TOWER GEH-WR14X28334
...
81
FRESH FOOD AIR TOWER GASKET GEH-WR14X28336
...
83
FRESH FOOD SENSOR GEH-WR55X28330
...
84
FRESH FOOD THERMISTOR LOWER GEH-WR55X28332
...
88
CONDENSER FAN GEH-WR60X34125
...
91
EVAPORATOR COVER GEH-WR14X28327
...
92
SCREW ST3.9 X 16 GEH-WR01X28345
...
94
FREEZER THERMISTOR GEH-WR55X28347
...
98
FREEZER TRANSITION GASKET GEH-WR14X28342
...
100
POWER SUPPLY BOARD GEH-WR55X33545
...
101
POWER CORD GEH-WR55X28528
...
102
SCREW Y-HEAD GEH-WR01X28343
...
103
MAIN BOARD COVER GEH-WR13X28389
...
104
MAIN BOARD GEH-WR55X28392
...
105
MAINBOARD ENCLOSURE GEH-WR13X28384

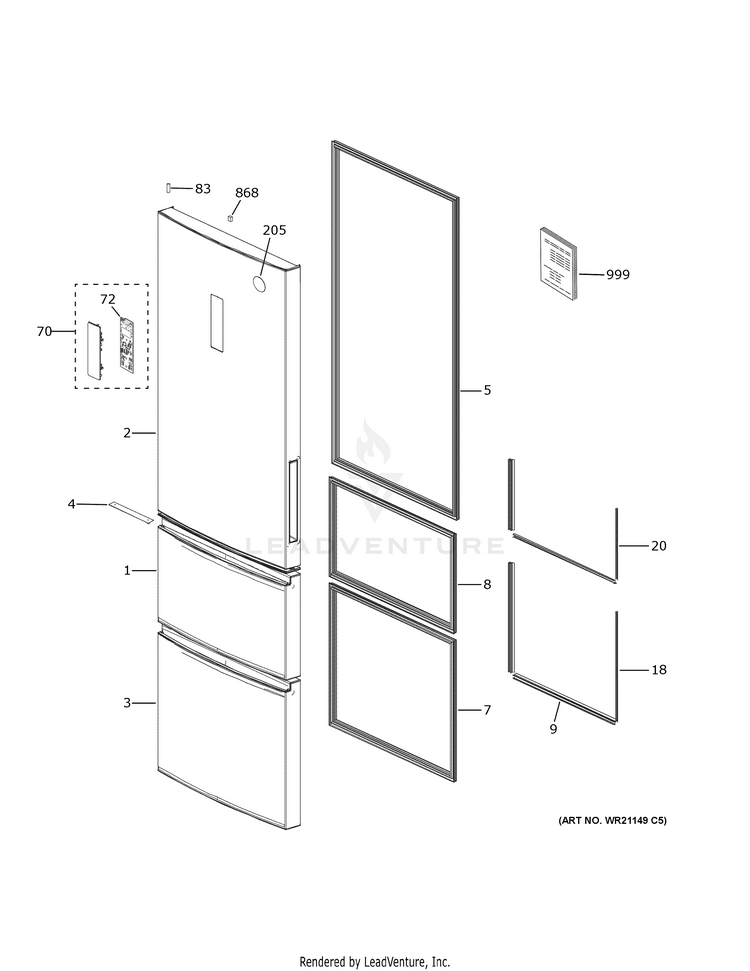

DOORS

...
...
1
REFRIGERATOR - FREEZER UPPER DOOR STAINL GEH-WR78X28358
...
2
REFRIGERATOR - FRESH FOOD DOOR STAINLESS GEH-WR78X28335
...
3
REFRIGERATOR - FREEZER LOWER DOOR STAINL GEH-WR78X28333
...
4
FREEZER LED LIGHT GEH-WR55X29550
...
5
REFRIGERATOR - FRESH FOOD GASKET STAINLE GEH-WR14X28339
...
7
REFRIGERATOR - FREEZER UPPER GASKET STAI GEH-WR14X28337
...
8
REFRIGERATOR - FREEZER LOWER GASKET STAI GEH-WR14X28328
...
9
DAMPER GASKET GEH-WR14X28326
...
18
DAMPER GASKET GEH-WR14X28382
...
20
DAMPER GASKET GEH-WR14X28388
...
70
UI DISPLAY GEH-WR55X28359
...
83
FRESH FOOD SENSOR GEH-WR55X28330
...
205
GEA BADGE FLAT CHROME GEH-WR04X29375
...
868
MAGNET GEH-WR01X29720
...
999
PM OWNERS & INSTALL GEH-49-60769
...
999
PM QUICK INSTALL GEH-31-49136
...
999
PM MINI MANUAL GEH-31-49135

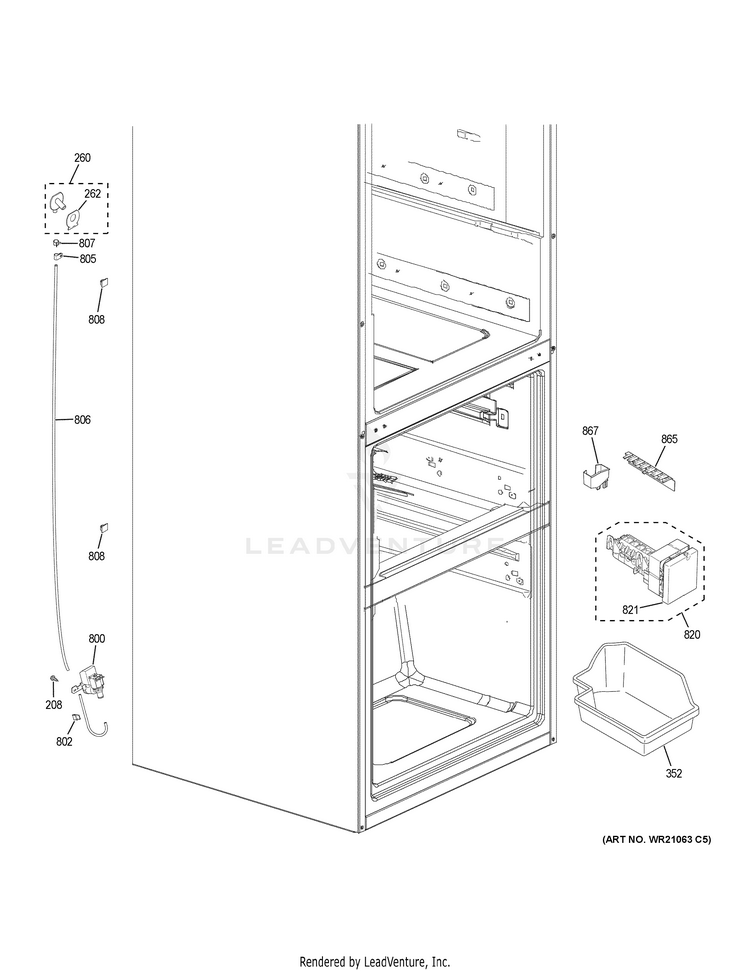

ICE MAKER

...
...
208
SCR 8-36 T GEH-WR1K1
...
260
WR2X9161 GEH-WR2X9224
...
262
GASKET DONUT GEH-WR02X9223
...
352
BUCKET ICE GEH-WR30X21245
...
800
VALVE AND TUBE ASM GEH-WR57X21246
...
802
CLIP U GEH-WR01X10182
...
805
STR RELIEF GEH-WR02X3736
...
806
TUBE PLASTIC GEH-WR17X10893
...
807
CLAMP GEH-WR02X11437
...
808
ADHESIVE CLIP GEH-WR02X4039
...
820
KIT RPLCMT WR30X10093 GEH-WR30X10093
...
821
COVER ICEMAKER GEH-WR29X10082
...
865
STRIPPER IM GEH-WR29X10083
...
867
CUP FILL IM GEH-WR29X10021

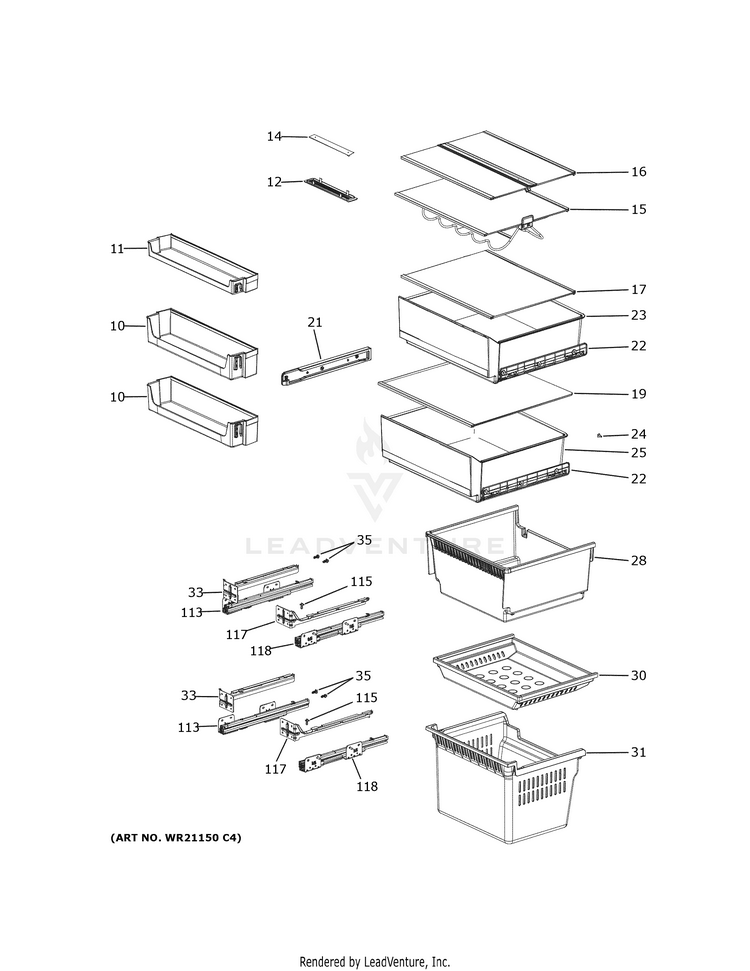

SHELVES & DRAWERS

...
...
10
LOWER FRESH FOOD DOOR BIN GEH-WR71X28331
...
11
UPPER FRESH FOOD DOOR BIN GEH-WR71X28329
...
12
LED LIGHT COVER GEH-WR13X28341
...
14
LED BOARD GEH-WR55X28346
...
16
QUICK SPACE SHELF GEH-WR71X28344
...
17
GLASS SHELF FULL GEH-WR71X28385
...
19
VEGETABLE PAN COVER GEH-WR71X28390
...
21
LEFT HAND VEGETABLE RAIL GEH-WR72X28376
...
22
RIGHT HAND VEGETABLE RAIL GEH-WR72X28374
...
23
VEGETABLE PAN GEH-WR71X28380
...
24
TAPPING SCREW ST9 X 13 GEH-WR01X28362
...
25
TEMPERATURE ZONE PAN GEH-WR71X31065
...
28
UPPER FREEZER BASKET GEH-WR71X28391
...
30
LOWER FREEZER BASKET TRAY GEH-WR71X28383
...
31
LOWER FREEZER BASKET GEH-WR71X28386
...
33
FREEZER RAIL SUPPORT LEFT GEH-WR72X28378
...
35
SCREW M5 X 16 GEH-WR01X28375
...
113
FREEZER RAIL LEFT GEH-WR72X28398
...
115
SCREW ST3.9 X 12 GEH-WR01X28395
...
117
FREEZER RAIL SUPPORT RIGHT GEH-WR72X28397
...
118
FREEZER RAIL RIGHT GEH-WR72X28368
...
...
...
