GE GBS22KBSCWW Bottom Mount Refrigerator

Model: GBS22KBSCWW

Save
 Part Not Listed?Part Not Listed?

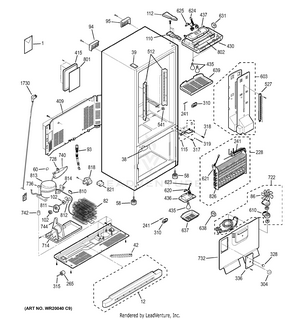

product name

CABINET

...
...
1
PM GUIDE OWNERS GEH-40-60503
...
1
MINI MANUAL GEH-31-51728
...
12
CVR ASM LOWER WH GEH-WR74X10206
...
38
CAP,HINGE(C) GEH-WR02X11722
...
39
CAP,HINGE(U) GEH-WR02X11721
...
42
SKIRT,LOWER GEH-WR02X12064
...
58
LEVELLING LEG GEH-WR02X12262
...
60
RUBBER-Q GEH-4J04328A
...
82
CONDENSER ASSEMBLY GEH-WR84X10057
...
93
DRAIN TUBE GEH-WR02X11697
...
95
SUPPORT CAB LEFT WW GEH-WR02X12141
...
102
GROMMET - RUBBER GEH-WR02X11694
...
110
HINGE ASSEMBLY,U GEH-WR13X10303
...
112
COVER,HINGE(U) GEH-WR02X11719
...
228
EVAPORATOR ASS'Y GEH-WR85X10057
...
241
SENSOR TEMP FF GEH-WR55X10025
...
265
ROLLER GEH-WR02X11698
...
304
COVER,CONNECTOR GEH-WR02X11318
...
310
COVER,SENSOR GEH-WR02X11664
...
315
ROLLER PIN GEH-4J04238A
...
317
SCREW HINGE CENTER WH GEH-WR01X10472
...
318
SCREW HINGE CENTER WH GEH-WR01X10473
...
319
WASHER GEH-WR01X10786
...
328
COVER,TUBE GEH-WR02X11668
...
336
COVER,GRILLE FAN GEH-WR02X11669
...
415
COVER PWB GEH-WR02X12269
...
430
CASE,DISPLAY GEH-WR17X11610
...
435
60A - 2BULBS GEH-60A
...
436
REFLECTOR,LAMP(FZ) GEH-WR02X11656
...
437
REFLECTOR,LAMP(FF) GEH-WR02X11657
...
512
HOLDER,SHELF R/L GEH-WR72X10151
...
527
HOLDER,SHELF C GEH-WR71X10541
...
541
VEG PAN FRT SUPPORT GEH-WR02X11683
...
603
DAMPER ASS'Y GEH-WR09X10115
...
610
MOTOR ASM REF FAN GEH-WR60X10196
...
620
THERMOSTAT-BI-METAL GEH-WR50X10044
...
621
THERMODISC(FUSE-M) GEH-WR50X10047
...
623
SOCKET ASSEMBLY,LAMP(F) GEH-WR02X11699
...
624
SOCKET ASSEMBLY,LAMP(R) GEH-WR02X11700
...
638
SWITCH LIGHT FF GEH-WR23X10342
...
639
COVER LAMP FZ GEH-WR02X11658
...
639
SWITCH LIGHT FZ GEH-WR23X10341
...
639
COVER LAMP FF GEH-WR02X11661
...
714
TRAY DRIP GEH-WR30X10048
...
722
EVAP FAN MOTOR ASS'Y GEH-WR60X10146
...
728
HOLDER,DRIER GEH-WR02X11702
...
732
EVAP FAN CVR ASS'Y GEH-WR17X11594
...
736
STOPPER,COMP GEH-WR02X11306
...
740
P/S DRYER KIT R134A GEH-WR86X0096
...
742
RUBBER GROMMET GEH-WR02X11787
...
744
GUIDE,FAN GEH-WR17X11583
...
801
BOARD ASM MAIN CONTROL GEH-WR55X10416
...
802
BOARD ASSY ENCODER GEH-WR55X10095
...
810
O.L.P GEH-WR07X10110
...
811
P.T.C GEH-WR08X10092
...
812
FAN CONDENSER ASS'Y GEH-WR60X10148
...
812
CONDENSER FAN MOTOR GEH-WR84X10055
...
818
COVER PTC GEH-WR02X11786
...
821
CAPACITOR GEH-WR62X10040
...
826
DEFROST HEATER GEH-WR50X10042
...
1730
POWER CORD GEH-WR23X10300

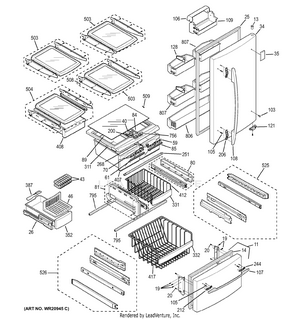

DOORS & SHELVES

...
...
11
DOOR FOAM ASS'Y,FZ GEH-WR78X10955
...
13
BUSHING GEH-WR01X10493
...
14
GASKET ASSEMBLY,F GEH-WR14X10184
...
25
GASKET ASSEMBLY,R GEH-WR14X10185
...
26
GUIDE,RAIL(ICE)BIN GEH-WR17X11585
...
34
DOOR FOAM ASS'Y,R GEH-WR78X10944
...
35
NAME PLATE GEH-WR04X10139
...
40
GUIDE RAIL(MIDDLE T/V) GEH-WR02X11684
...
43
TRAY, ICE GEH-WR30X10049
...
46
SHELF ICE TRAY GEH-WR30X10050
...
59
LINK,HUMIDITY(L) GEH-WR02X11673
...
61
LINK,HUMIDITY(R) GEH-WR02X11674
...
70
RAIL SLIDE(C) GEH-WR02X11701
...
80
RAIL SLIDE ASM (RH-FZ) GEH-WR17X12421
...
81
RAIL SLIDE ASM (LH-FZ) GEH-WR17X12422
...
84
FAN ASS'Y BLADE GEH-WR60X10147
...
84
MIDDLE GASKET GEH-WR14X10176
...
85
FRONT GASKET GEH-WR14X10175
...
89
GLASS COVER VEG PAN GEH-WR32X10465
...
103
PLUG BUTTON - WW GEH-WR02X11750
...
105
BOLT-DOOR HNDL GEH-WR01X10446
...
106
DAIRY DOOR CVR GEH-WR02X11665
...
107
HANDLE FZR DOOR GEH-WR12X10678
...
108
HANDLE FF DOOR GEH-WR12X10677
...
109
DAIRY BIN GEH-WR71X10536
...
121
STOPPER,DOOR GEH-WR02X11720
...
128
BASKET DOOR,F GEH-WR71X10552
...
128
SNUGGER GEH-WR02X11680
...
200
SHUTTER SLIDE GEH-WR02X11689
...
206
BRACKET,HANDLE FF GEH-WR02X11679
...
212
BRACKET,HANDLE FZR(L) GEH-WR02X11678
...
244
BRACKET,HANDLE FZR GEH-WR02X11677
...
251
SUPPORTOR COVER T/V GEH-WR02X11703
...
268
ADJUSTER GEH-WR02X11671
...
311
COVER,T/V GREY GRAPHICS GEH-WR72X10154
...
331
DECO,TRAY F/U GEH-WR12X10679
...
332
FZR BASKET W/TRIM GEH-WR12X10680
...
352
ICE BIN GEH-WR30X10052
...
387
COVER ICE BIN GEH-WR02X11662
...
407
VEG PAN GEH-WR32X10471
...
408
SNACK PAN GEH-WR32X10472
...
412
TRAY DRAWER, F/U GEH-WR21X10089
...
417
FZR BASKET GEH-WR21X10088
...
503
SHELF ASSEMBLY,R GEH-WR71X10570
...
504
SHELF ASSEMBLY,R GEH-WR71X10571
...
508
SHELF STOPPER GEH-WR02X12053
...
509
COVER STOPPER GEH-WR02X12054
...
756
SHUTTER SLIDE GEH-WR02X11688
...
795
SUPPORTOR,DIVIDER GEH-WR30X10051
...
806
BASKET,DOOR GEH-WR71X10557
...
807
MODULE DOOR FZ GEH-WR71X10606
...
...
...
