product name

GE FUF17DHRBWW Freezer

Model: FUF17DHRBWW

Save
 Part Not Listed?Part Not Listed?
product name

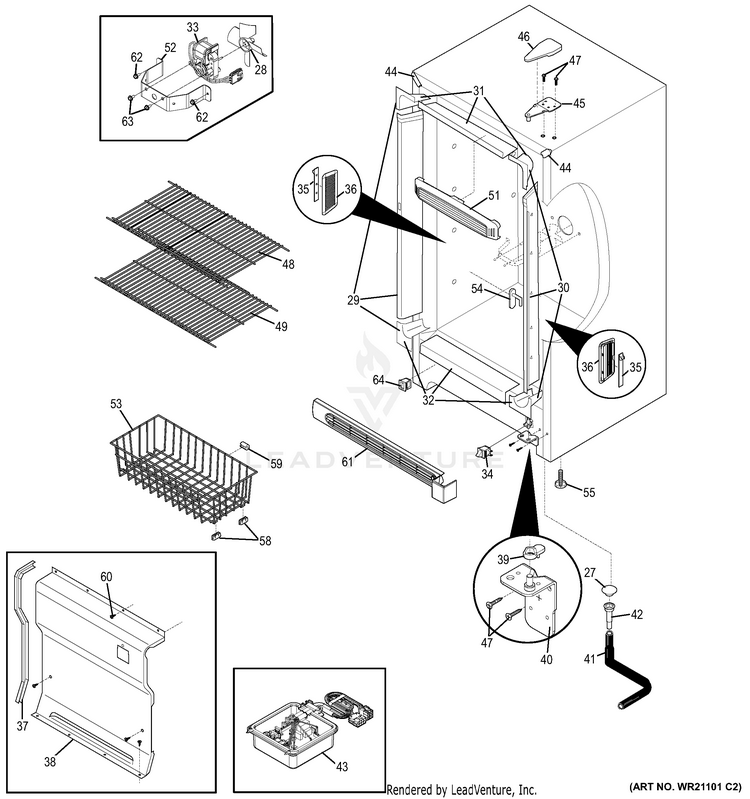

CABINET

...
...
27
PLUG-DRAIN GEH-WR01X10031
...
28
FAN BLADE GEH-WR60X24020
...
29
BREAKER GEH-WR40X24041
...
30
BREAKER,W/LOCK GEH-WR40X24040
...
31
BREAKER,TOP GEH-WR40X23513
...
32
BREAKER,BOTTOM GEH-WR40X23512
...
33
MOTOR,FAN ,115 V GEH-WR60X10293
...
34
SWITCH LIGHT GEH-WR23X10303
...
35
LIGHT BOARD,3 LED CLUSTE GEH-WR23X24025
...
36
LENS,3 LED CLUSTER GEH-WR23X24024
...
37
GASKET-EVAP COVER GEH-WR14X10293
...
38
COVER-EVAPORATOR GEH-WR17X12665
...
39
RAMP,DOOR CLOSER GEH-WR02X23543
...
40
HINGE,1/2" PIN ,BOTTOM R GEH-WR12X23534
...
41
HOSE-DRAIN 17 50" GEH-WR17X4120
...
42
DRAIN GEH-WR17X23526
...
43
CONTROL BOARD,ASSEMBLY , GEH-WR09X24018
...
44
TRIM-CABINET CORNER, WHI GEH-WR02X13348
...
45
HINGE-UPPER GEH-WR12X10891
...
46
COVER-HINGE GEH-WR02X12689
...
47
SCREW BOTTOM HINGE GEH-WR01X10997
...
48
SHELF,16.69 X 23.88 ,WIR GEH-WR71X24032
...
49
SHELF,14.50 X 23.88 ,WIR GEH-WR71X24038
...
51
BAFFLE, AIR GEH-WR17X12658
...
52
BRACKET FAN MOTOR GEH-WR02X9496
...
53
BASKET,BOTTOM GEH-WR21X24035
...
54
STOP-BASKET GEH-WR02X11446
...
55
LEG,LEVELING GEH-WR02X24034
...
58
GLIDE-BASKET GEH-WR02X23530
...
59
BUMPER GEH-WR2X6361
...
60
SCREW, 8-18AB X.470 QX" GEH-WR01X10958
...
61
GRILLE/KICKPLATE GEH-WR74X24021
...
63
SCREW,HEX WASHER HEAD ,8 GEH-WR01X10798
...
64
VALVE, BREATHER GEH-WR86X10064

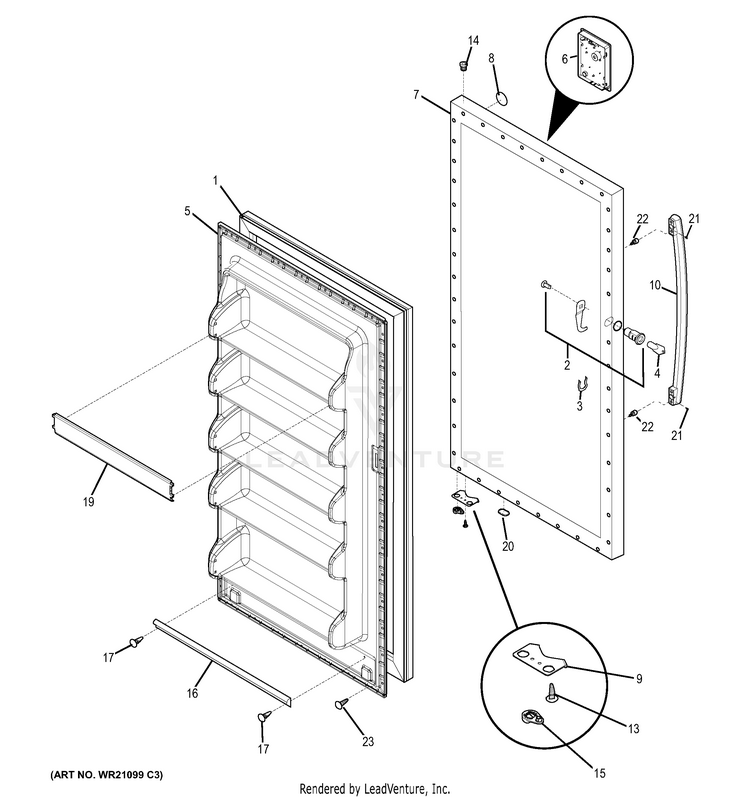

DOOR

...
...
1
GASKET-DOOR,WHITE GEH-WR24X24039
...
2
LOCK ASSY GEH-WR05X10038
...
3
CLIP, SPRING GEH-WR01X10870
...
4
KEY GEH-WR05X10005
...
5
PANEL-INNER DOOR,FRZR GEH-WR77X24037
...
6
CONTROL,ELECTRONIC GEH-WR09X24017
...
7
PANEL-,OUTER DOOR ,WHITE GEH-WR78X24036
...
8
NAMEPLATE GEH-WR04X23538
...
9
DOOR STOP GEH-WR02X23525
...
10
HANDLE,GE ,METAL GEH-WR12X23532
...
13
SCREW, DOOR STOP MTG, FH GEH-WR02X12989
...
14
BEARING,HINGE ,BLACK ,TO GEH-WR02X23506
...
15
CLOSER,BEARING HINGE GEH-WR02X23518
...
16
GASKET,SECONDARY GEH-WR14X23528
...
17
CLIP, PANEL MTG GEH-WR01X10916
...
19
RACK,DOOR GEH-WR17X24031
...
20
PLUG-BUTTON,DOOR BASE GEH-WR02X23542
...
21
SCREW-SET GEH-WR01X10922
...
22
SCREW HOURGLASS GEH-WR01X11042
...
23
SCREW,PH TRUSS HEAD ,8-1 GEH-WR01X10797

MACHINE COMPARTMENT

...
...
70
CONDENSER EXT GEH-WR84X5007
...
71
STRAP-EVAP/HEATER,ALUMIN GEH-WR02X11458
...
72
DRIER-FILTER GEH-WR86X10067
...
73
HARNESS,MAIN GEH-WR23X24023
...
74
DEFROST HEATER GEH-WR51X24019
...
75
EVAPORATOR ASSY GEH-WR85X10033
...
76
HEAT EXCHANGER, SUCT/CAP GEH-WR86X10052
...
77
INSULATOR-EVAP, STYROFOA GEH-WR02X13242
...
78
INSULATOR-EVAP, STYROFOA GEH-WR02X13243
...
79
SCREW, HWH, 10-24 X 0.50 GEH-WR01X10888
...
80
COMPRESSOR,DGK57C GEH-WR87X23519
...
81
CONTROLLER,COMPRESSOR GEH-WR07X23521
...
82
PAN-DRAIN GEH-WR02X24027
...
83
CLIP,CONTROLLER GEH-WR02X12032
...
84
SCREW COMP. MTG GEH-WR01X10999
...
85
CLIP, WIRE GEH-WR01X10931
...
86
CAPACITOR-RUN GEH-WR62X23515
...
87
SCREW,RWHD ,8-32A X 0.50 GEH-WR02X12764
...
88
CORD,POWER GEH-WR23X23523
...
89
SUPPORT, EVAPORATOR MTG GEH-WR02X12991
...
...
...
