product name

GE FUF14SVFRWW Freezer

Model: FUF14SVFRWW

Save
 Part Not Listed?Part Not Listed?
product name

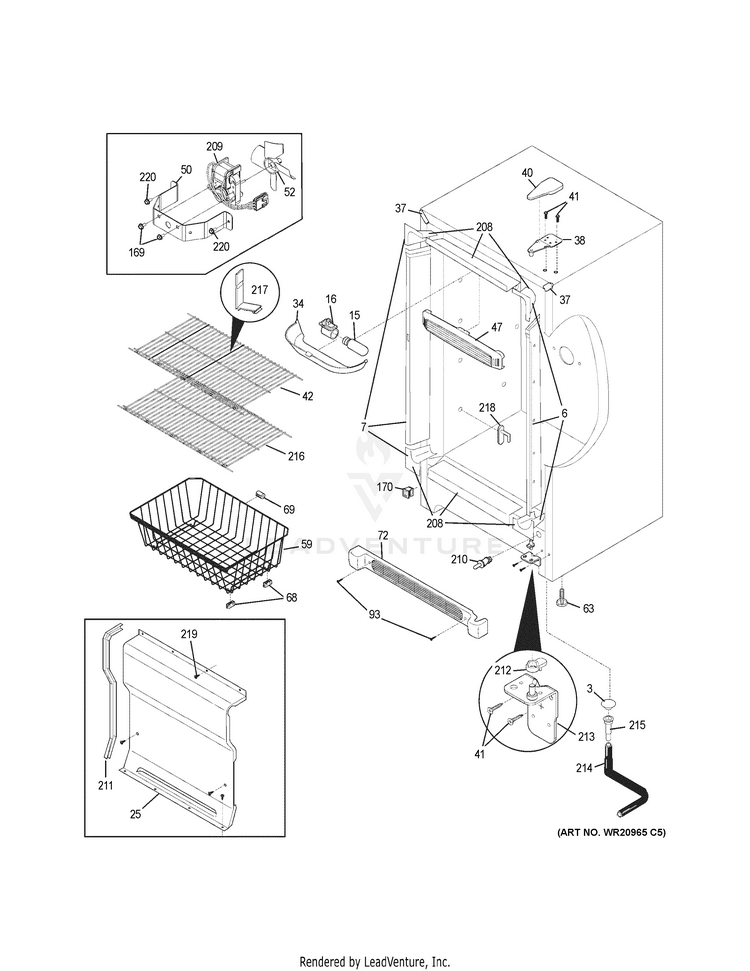

CABINET

...
...
3
PLUG-DRAIN GEH-WR01X10031
...
6
BREAKER KIT W/CORNERS,NO GEH-WR40X10062
...
7
BREAKER KIT W/CORNERS,IN GEH-WR40X10063
...
15
LIGHT BULB/LAMP GEH-PURCH. LOCAL1
...
16
LIGHT SOCKET GEH-WR23X10302
...
25
COVER-EVAPORATOR GEH-WR17X12657
...
34
SHIELD-LIGHT GEH-WR02X12994
...
37
TRIM-CABINET CORNER, WHI GEH-WR02X13348
...
38
HINGE-UPPER GEH-WR12X10963
...
40
COVER-HINGE GEH-WR02X12689
...
41
SCREW, TAMPER PROOF, 1/4 GEH-WR01X10874
...
42
SHELF, 16.69 X 23.88, WH GEH-WR71X10907
...
47
BAFFLE, AIR GEH-WR17X12658
...
50
BRACKET,FAN MOTOR MOUNT GEH-WR02X12686
...
52
WR60X139 GEH-WR60X5082
...
59
BOTTOM BASKET GEH-WR21X10236
...
63
LEVELING LEG ADJUSTABLE GEH-WR02X9485
...
68
SLIDE BASKET GEH-WR02X6808
...
69
BUMPER BASKET GEH-WR02X6361
...
72
GRILLE/KICKPLATE, 28", W GEH-WR74X10299
...
93
SCREW,PH TRUSS HEAD ,8-1 GEH-WR01X10797
...
169
SCREW,HEX WASHER HEAD ,8 GEH-WR01X10798
...
170
VALVE, BREATHER GEH-WR86X10064
...
208
BREAKER KIT W/CORNERS,28 GEH-WR40X10061
...
209
MOTOR,FAN ,115 V GEH-WR60X10293
...
210
SWITCH LIGHT GEH-WR23X10303
...
211
GASKET EVAP COVER GEH-WR14X0489
...
212
RAMP DOOR CLOSURE GEH-WR02X10393
...
213
HINGE-BOTTOM, STEPPED PI GEH-WR12X10964
...
214
HOSE-DRAIN GEH-WR17X12652
...
215
DRAIN GEH-WR02X6353
...
216
SHELF, LOWER, WH GEH-WR71X10921
...
217
DIVIDER, WHITE, WIRE SHE GEH-WR02X12993
...
218
STOP-BASKET GEH-WR02X11446
...
219
SCREW, 8-18AB X.470 QX" GEH-WR01X10958
...
220
SCREW, #8, 18X.63, SELF GEH-WR01X10915

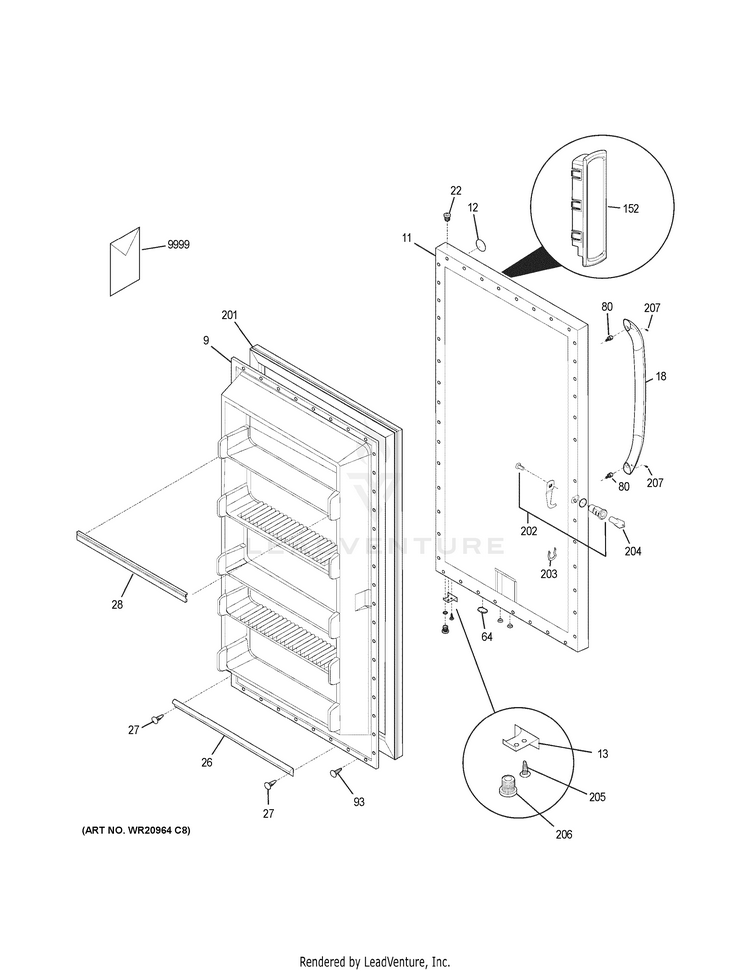

DOOR

...
...
9
PANEL-INNER DOOR,FRZR GEH-WR77X10059
...
11
PANEL-OUTER DOOR, WHITE GEH-WR78X12591
...
12
NAMEPLATE GEH-WR04X10159
...
13
DOOR STOP, CHROME, RH/LH GEH-WR02X12995
...
18
HANDLE DOOR GEH-WR12X11025
...
22
BEARING,HINGE ,TOP GEH-WR02X12067
...
26
GASKET, SECONDARY GEH-WR14X10320
...
27
CLIP, PANEL MTG GEH-WR01X10916
...
28
RACK-DOOR,(5) GEH-WR17X11923
...
64
PLUG BUTTON BASE DOOR GEH-WR02X10087
...
80
SCREW HOURGLASS GEH-WR01X11042
...
93
SCREW,PH TRUSS HEAD ,8-1 GEH-WR01X10797
...
152
CONTROL EZ SET GE 115V W GEH-WR55X11084
...
201
GASKET, DOOR SEAL, WHIT GEH-WR24X10253
...
202
LOCK ASSY GEH-WR05X10038
...
203
CLIP, SPRING GEH-WR01X10870
...
204
KEY GEH-WR05X10005
...
205
SCREW, DOOR STOP MTG, FH GEH-WR02X12989
...
206
BEARING-HINGE BOTTOM GEH-WR02X12310
...
207
SCREW-SET GEH-WR01X10922
...
9999
MINI MANUAL GEH-31-51656

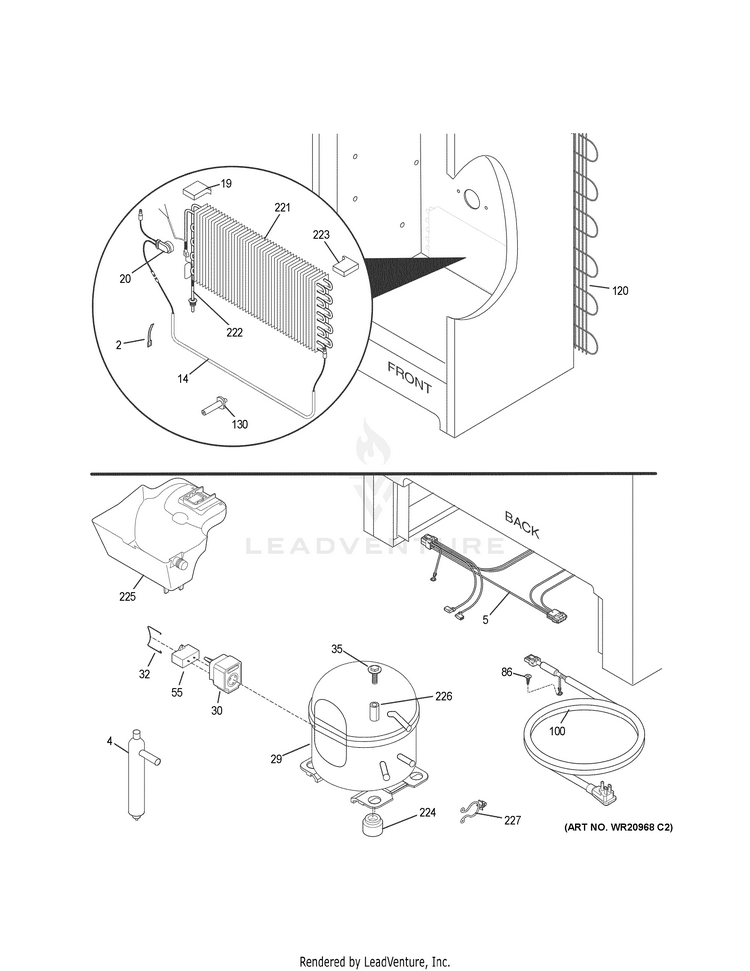

MACHINE COMPARTMENT

...
...
2
STRAP-EVAP/HEATER,ALUMIN GEH-WR02X11458
...
4
DRIER-FILTER GEH-WR86X10067
...
5
HARNESS-MAIN GEH-WR23X10631
...
14
HEATER DEFROST GEH-WR51X10059
...
19
INSULATOR-EVAP, STYROFOA GEH-WR02X13243
...
20
THERMOSTAT GEH-WR50X10031
...
29
COMPRESSOR, W/O ELECTRIC GEH-WR87X10194
...
30
CONTROLLER, COMPRESSOR GEH-WR07X10119
...
32
CLIP,CONTROLLER GEH-WR02X12032
...
35
SCREW COMP. MTG GEH-WR01X10999
...
55
CAPACITOR-RUN, 15 MF GEH-WR62X10079
...
86
SCREW,RWHD ,8-32A X 0.50 GEH-WR02X12764
...
100
CORD-POWER GEH-WR23X10724
...
120
CONDENSER EXT GEH-WR84X5007
...
130
SUPPORT, EVAPORATOR MTG GEH-WR02X12991
...
221
EVAPORATOR ASSY GEH-WR85X10032
...
222
HEAT EXCHANGER GEH-WR86X10007
...
223
INSULATOR-EVAP, STYROFOA GEH-WR02X13242
...
224
GROMMET GEH-WR01X5134
...
225
PAN-DRAIN GEH-WR02X12996
...
226
SLEEVE SCREW GEH-WR02X9497
...
227
CLIP, WIRE GEH-WR01X10931
...
...
...
