GE DSKS433EB5WW Electric Dryer

Model: DSKS433EB5WW

Save
 Part Not Listed?Part Not Listed?
product name

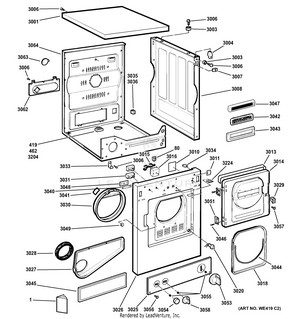

BACKSPLASH, CABINET & FRONT PANEL

...
...
1
INSTALLATION INSTRUCTION GEH-31-16710
...
1
PM OWNERS MANUAL GEH-49-90284-1
...
80
RESISTOR GEH-WE4M255
...
419
TERM BLK & GRND STRAP GEH-WE4M525
...
462
SCREW GEH-WE2M169
...
3001
COVER TOP GEH-WE20X20491
...
3003
BUMPER GEH-WE1M226
...
3006
SCR GEH-WE2M97
...
3008
SIDE PANEL GEH-WE20M533
...
3010
SHIELD CONTROL GEH-WE1M398
...
3011
NUT SPEED U 5/8 X 7/16 GEH-WE02X20519
...
3013
DOOR OUTER WHITE GEH-WE10M86
...
3014
INNER DOOR (WHITE) GEH-WE10M138
...
3015
KIT HARNESS AND TIMER GEH-WE49X23896
...
3015
HARNESS ELECT ASM GEH-WE26X20268
...
3016
TIMER ASM GEH-WE4M285
...
3018
DOOR GASKET GEH-WE9M16
...
3020
DOOR SWITCH GEH-WE4M415
...
3025
SWITCH TRIM WHITE GEH-WE19M1249
...
3026
PANEL FRONT GEH-WE20M532
...
3027
TRAP DUCT GEH-WE14X23276
...
3028
FELT SEAL AS GEH-WE9X38
...
3029
LATCH GEH-WE1M536
...
3030
BEARING DRUM & FELT KIT GEH-WE25X20096
...
3031
SWITCH PTS GEH-WE4M416
...
3033
BRACKET FRONT GEH-WE1M1095
...
3035
PLATE RECEPTACLE GEH-WE1M455
...
3036
RECEPTACLE (120V) GEH-WE4M297
...
3040
BEARING SLIDE GEH-WE03X20492
...
3041
BEARING SLIDE GEH-WE03X20493
...
3042
METAL SCREEN GEH-WE18M15
...
3043
SLIDE GRID GEH-WE1M407
...
3044
GASKET GEH-WE9M17
...
3045
INSULATION CABINET GEH-WE01X20494
...
3046
SCREW GEH-WE2M302
...
3047
GRID GEH-WE1M406
...
3049
STRIKE DOOR GEH-WE01X1192
...
3051
HINGE GEH-WE1M1033
...
3053
KNOB ASM DRYER GEH-WE01X1263
...
3054
SWITCH KNOB GEH-WE01X20521
...
3055
CLIP (KNOB) GEH-WE1M140
...
3057
SCREW WH GEH-WE02M0149
...
3058
KNOB & CLIP ASM WH GEH-WH01X2721
...
3062
KNOCKOUT GEH-WE1M194
...
3063
COVER KNOCKOUT GEH-WE1M225
...
3064
CHASSIS BASE GEH-WE20M534
...
3204
SCREW-PKG 12 GEH-WZ4X241D
...
3224
CLIP GROUNDING GEH-WE01X0762

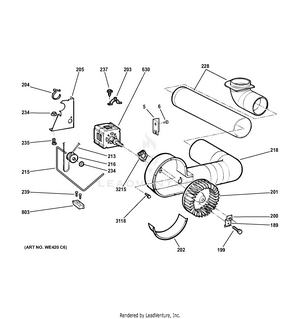

BLOWER & MOTOR

...
...
5
BRACKET BELT SWITCH GEH-WE1M493
...
6
SCREW GEH-WE2M154
...
189
CLAMP GEH-WE1M984
...
199
SCREW GEH-WE2M98
...
200
CLAMP GEH-WE1M983
...
201
WHEEL BLOWER GEH-WE16X0016
...
202
BAFFLE GEH-WE01X20516
...
202
BAFFLE BLOWER HOUSING GEH-WE1X689
...
203
STRAP MOTOR GEH-WE13X200
...
204
MOTOR BRACKET GEH-WE01X0921
...
205
MOTOR SUPPORT GEH-WE13M39
...
213
BELT DRIVE GEH-WE12M24
...
215
IDLER ARM GEH-WE3M18
...
216
PULLEY GEH-WE12X20517
...
218
BLOWER HOUS & ELBOW ASM GEH-WE14X23275
...
228
ELBOW GEH-WE14M41
...
234
CAP NUT GEH-WE2M96
...
235
SCREW GEH-WE00X86
...
237
SCREW GEH-WE2M187
...
239
SCREWS GEH-WE2M167
...
630
MOTOR AND PULLEY GEH-WE17X23619
...
3118
SCREW # 10 GEH-WE2M174

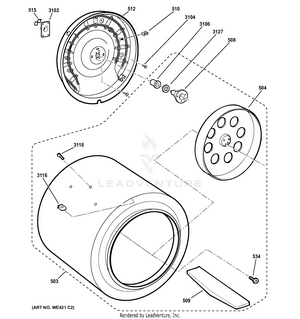

DRUM

...
...
503
DRUM ASM GEH-WE21X20095
...
504
DEFLECTOR GEH-WE19X20526
...
508
SHAFT & BRACKET ASS'Y GEH-WE3X39
...
509
BAFFLE GEH-WE14X20094
...
510
CERAMIC INSULATOR GEH-WE1M452
...
512
HEATER ASM. GEH-WE11M25
...
515
GROUND STRAP ASM GEH-WE1M1015
...
534
SCREW #10 GEH-WE2M163
...
3102
BEARING RETAINER GEH-WE1M300
...
3104
SCREW GEH-WE1M280
...
3106
SLEEVE DRUM GEH-WE1M462
...
3116
CLIP GEH-WR2M1052
...
3118
SCREW # 10 GEH-WE2M174
...
3127
O RING GEH-WE1M461
...
...
...
