GE DISR473CGAWW Electric Dryer

Model: DISR473CGAWW

Save
 Part Not Listed?Part Not Listed?
product name

BACKSPLASH, BLOWER & MOTOR ASSEMBLY

...
...
1
MINI-MANUAL WIRING GEH-31-16106
...
1
PM INSTALL INSTRUCTIONS GEH-31-16682
...
1
PM OWNERS MANUAL GEH-49-90309-1
...
3
END CAP LH SNOW WH GEH-WE19M1418
...
4
END CAP RH SNOW WH GEH-WE19M1419
...
5
SWITCH SUPPORT GEH-WE19M1772
...
7
KNOB ASM DRYER GEH-WE01X1263
...
11
SCREW 8-18 AB FLT 9/16 S GEH-WH02X10089
...
12
BUZZER VARIABLE GEH-WE04X20556
...
13
SWITCH TRIM GEH-WE19M1519
...
19
KNOB & CLIP ASM WH GEH-WE1M920
...
35
ROTARY START SWITCH REG GEH-WE4M402
...
72
PANEL BACK GEH-WE20M343
...
75
SCREW GEH-WE2M173
...
80
RESISTOR GEH-WE4M255
...
81
RESISTOR ASM 2X4000OHMS GEH-WE4M214
...
85
R.SWITCH (XCARE) ON/OFF GEH-WE4M405
...
87
ROTARY SWITCH 4TEMP REG GEH-WE4M407
...
100
TIMER GEH-WE4M213
...
201
BLOWER WHEEL W/INSERT GEH-WE16M17
...
203
STRAP MOTOR GEH-WE13X200
...
204
STRAP MOTOR GEH-WE1X921
...
205
MOTOR SUPPORT GEH-WE13M39
...
206
SCREW GEH-WE2M200
...
213
BELT DRIVE GEH-WE12M29
...
215
IDLER ARM SPRING GEH-WE3M25
...
216
PULLEY IDLER GEH-WE12M8
...
218
GASKET SEAL GEH-WE1M473
...
219
BLOWER HOUSING ASM GEH-WE14M199
...
223
SCREWS GEH-WE2M189
...
228
EXAUST PIPE GEH-WE14M90
...
230
THERMOSTAT OUTLET CONTRL GEH-WE4M251
...
231
SCREW GEH-WE2M187
...
232
SCREW GEH-WE2M202
...
233
PLATE MOTOR GEH-WE13M65
...
234
CAP NUT GEH-WE2M96
...
235
SCR 10-16 X 1/2 AB GEH-WE2M307
...
237
SCREW GEH-WE2M154
...
239
SCREWS GEH-WE2M167
...
240
SCREW GEH-WE1M280
...
461
SCREW GROUND GEH-WZ5X158
...
502
SCREW # 10 GEH-WE2M174
...
630
MOTOR KIT 240/50 W/WHEEL GEH-WE17M47
...
631
CONNECTOR MOTOR GEH-WE1M650
...
803
SWITCH INTERLOCK GEH-WD21X557

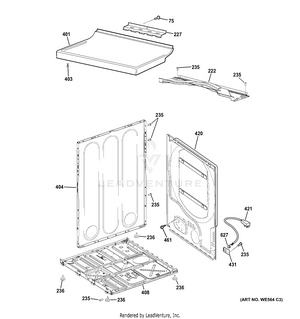

CABINET & TOP PANEL

...
...
75
SCREW GEH-WE2M173
...
222
BOTTOM COVER (E-COAT) GEH-WE20M494
...
227
REAR HEAT SHEILD GEH-WE1M723
...
235
SCR 10-16 X 1/2 AB GEH-WE2M307
...
236
LEVELLING LEG-1PC PLASTI GEH-WE1M771
...
401
COVER WH GEH-WE20M286
...
403
SCREW #8 GEH-WE2M160
...
404
SIDE PANEL WW GEH-WE20M478
...
408
CHASSIS BASE GEH-WE20M492
...
420
REAR PANEL 7 C.F. GEH-WE20M493
...
421
CORD SET GEH-WE26M333
...
431
COVER PLATE GEH-WE1M460
...
461
SCREW GROUND GEH-WZ5X158
...
627
STRAIN RELIEF GEH-WE1M430

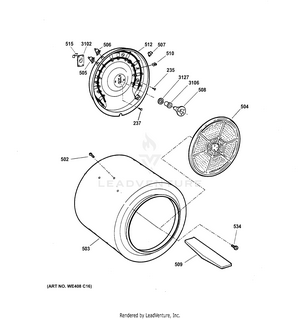

DRUM

...
...
235
SCR 10-16 X 1/2 AB GEH-WE2M307
...
237
SCREW GEH-WE2M154
...
502
SCREW # 10 GEH-WE2M174
...
503
DRUM 7 CU FT GEH-WE21M13
...
504
DEFLECTOR HEAT GEH-WE14M77
...
505
THERMOSTAT SAFETY LEFT GEH-WE4M160
...
506
THERMOSTAT, INLET CONTRO GEH-WE4M250
...
507
THERMOSTAT HI-LIMIT GEH-WE4M137
...
508
SHAFT & BRACKET ASS'Y GEH-WE3X39
...
509
BAFFLE GEH-WE14M75
...
510
PROTECTION BRACKET GEH-WE1M780
...
512
HEATER AND HOUSING ASM GEH-WE11M24
...
515
GROUND STRAP ASM GEH-WE1M1015
...
534
SCREW #10 GEH-WE2M163
...
3102
BEARING RETAINER GEH-WE1M300
...
3106
SLEEVE DRUM GEH-WE1M462
...
3127
O RING GEH-WE1M461

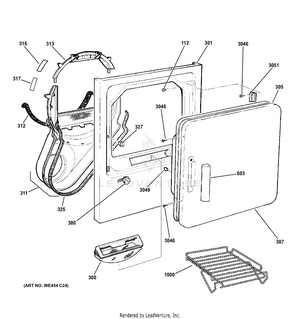

FRONT PANEL & DOOR

...
...
112
BEAUTY BUTTON-WHT GEH-WR02X8693
...
300
FILTER GEH-WE18M53
...
301
FRONT PANEL GEH-WE20M528
...
305
INNER DOOR ASM. W GEH-WE10M171
...
307
DOOR PANEL (WHITE) GEH-WE10M102
...
311
AIR DUCT ASSY GEH-WE14M92
...
312
FELT GEH-WE9M30
...
313
TOP BEARING GEH-WE3M26
...
316
SLIDE GREEN GEH-WE1M1067
...
317
SLIDE WHITE GEH-WE1M504
...
325
GASKET (SEAL) GEH-WE00M169
...
327
LATCH GEH-WE1M536
...
380
DOOR SWITCH GEH-WE4M415
...
603
HANDLE DOOR GEH-WE1M1026
...
1000
RACK DRYING GEH-WE1M396
...
3046
SCREW #8 GEH-WE2M196
...
3049
STRIKE GEH-WE1X1192
...
3051
HINGE GEH-WE1M505
...
...
...
