GE BCS42ELB Refrigerator

Model: BCS42ELB

Save
 Part Not Listed?Part Not Listed?
product name

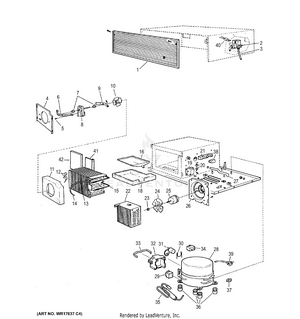

UNIT ASSEMBLY

...
...
1
MEDALLION GEH-WR03X5133
...
1
6-32 X 3/8 PHIL S/S TYPE GEH-WR01X5684
...
1
5C0384-03 GEH-WR79X5173
...
2
WATER VALVE ASM GEH-WR57X0092
...
3
WR17X2107 GEH-WR17X2049
...
4
FAN ORIFICE GEH-WR17X6351
...
5
SCREW GEH-WZ05X0194
...
6
BRACKET EVAP FAN GEH-WR02X4792
...
7
GROMMET GEH-WR02X2945
...
8
MOTOR EVAP FAN GEH-WR60X0172
...
9
BRACKET EVAP FAN GEH-WR02X7137
...
10
FAN BLADE EVAP MOTOR GEH-WR60X0123
...
11
FOAM BLOCK GEH-WR17X6311
...
12
DEFROST THERMOSTAT GEH-WR50X0109
...
13
EVAPORATOR GEH-WR85X0223
...
14
SUCTION & CAPILLARY TUBE GEH-WR86X0089
...
15
DEFROST HEATER GEH-WR51X0322
...
18
BASE-PAN GEH-WR17X6313
...
19
CONTROL DEF-SANKYO SEIKI GEH-WR09X0412
...
20
CURRENT SENSOR GEH-WR23X0319
...
21
5B7325-00 GEH-WR23X5163
...
22
CONDENSER GEH-WR84X0137
...
23
NUT LOCKING GEH-WR01X1515
...
24
BLADE COND FAN GEH-WR60X0167
...
25
WASHER GEH-WR01X1710
...
25
MOTOR COND FAN GEH-WR60X0179
...
26
HOUSING COND FAN GEH-WR17X2161
...
27
NO ITEM DESCRIPTION GEH-WR87X6314
...
28
P/S KIT-MATSUSHITA HI-SI GEH-WR87X0238
...
29
RELAY (PTCR) GEH-WR07X0190
...
30
CLIP GUARDETTE GEH-WR02X7227
...
31
GUARDETTE ASM. GEH-WR08X0094
...
32
COVER GEH-WR02X7834
...
33
CLAMP COVER GEH-WR02X7226
...
34
CAPACITOR GEH-WR62X0049
...
35
MONGRAM SERIES P/S GEH-WR86X0086
...
36
GROMMET COMP MTG GEH-WR02X7238
...
37
CLIP COMP MTG GEH-WR02X7228
...
38
RELAY GEH-WR07X0193
...
39
WR23X420 GEH-WR23X5177
...
40
HARNESS-VALVE GEH-WR23X5176
...
41
BAFFLE GEH-WR17X6462
...
42
INSULATION GEH-WR82X5056
...
...
...
