product name

GE AGBS45DEF2WS Gas Range

Model: AGBS45DEF2WS

Save
 Part Not Listed?Part Not Listed?
product name

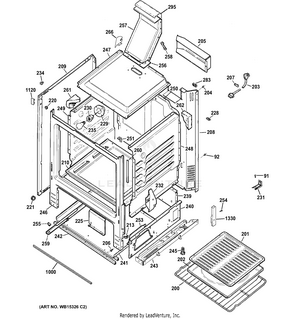

BODY PARTS

...
...
91
SCREW 10-32 TR T GEH-WB01T10008
...
92
SCREW GROUND GEH-WB01X1261
...
200
OVEN RACK GEH-WB48X20249
...
201
RACK BROILER PAN GEH-WB48K10008
...
202
BROILER PAN - RACK NOT I GEH-WB48K10017
...
203
LINE CORD GEH-WB18K10036
...
204
SCREW 8-18X5/8 HXW GEH-WZ04X0345
...
205
COVER BACK PANEL GEH-WB34K0021
...
206
SCREW GEH-WB01K10091
...
207
CLAMP CABLE GEH-WB02K0036
...
208
RANGE BACK GEH-WB63K0021
...
209
PANEL SIDE GEH-WB56X26931
...
210
BOTTOM OVEN GEH-WB35K10035
...
213
NUT SPEED GEH-WB01K0003
...
220
GROMMET GEH-WB02K0008
...
221
GROMMET GEH-WB02K10294
...
225
SHIELD VALVE GEH-WB34K0002
...
228
CLIP WIRE GEH-WB02X7066
...
229
HOUSING RECEPTACLE GEH-WB08K0001
...
230
RECEPTACLE PUSH-IN GEH-WB08T10026
...
231
BRACKET ANTI-TIP ASM GEH-WB02K10254
...
232
HINGE GUARD RIGHT GEH-WB34K0003
...
232
HINGE GUARD LEFT GEH-WB34K0004
...
234
GUIDE SUPPORT RGTP GEH-WB02K0066
...
235
40A15 GEH-STD372401
...
239
PANEL REAR BROIL GEH-WB63X26606
...
240
PANEL SIDE BROIL RT GEH-WB63K0002
...
240
PANEL SIDE BROIL LFT GEH-WB63K0003
...
241
BOTTOM RANGE GEH-WB63K10029
...
242
BRACE BOTTOM GEH-WB63X26259
...
243
SUPPORT BASE RT GEH-WB63X20215
...
243
SUPPORT BASE LT GEH-WB63X20216
...
245
LEG LEVELER GEH-WB02K10182
...
246
FRAME WELD ASM GEH-WB63X20251
...
247
OVEN TOP GEH-WB53K10002
...
248
OVEN SIDE RIGHT GEH-WB53K10034
...
249
OVEN SIDE LEFT GEH-WB53K10035
...
250
OVEN BACK 24 INCH GEH-WB53K0004
...
251
ANGLE SUPPORT GEH-WB02K0003
...
253
COVER ACCESS SPRING GEH-WB02K0004
...
254
SCREW MTG HINGE (TORX) GEH-WB01K0053
...
255
BROILER STOP GEH-WB02K0005
...
256
GASKET VENT GEH-WB32K0001
...
257
VENT ASM GEH-WB38K10001
...
258
BRACE VENT GEH-WB38K0002
...
259
SLIDE RANGE BOTTOM RIGHT GEH-WB39K0001
...
259
SLIDE RANGE BOTTOM LEFT GEH-WB39K0002
...
260
GASKET OVEN SEAL LG GEH-WB32K0002
...
261
INSULATION OVEN WRAP GEH-WB35K10157
...
262
INSULATION OVEN BACK GEH-WB35K0016
...
266
BACKGUARD DEFLECTOR GEH-WB34X21080
...
283
CLIP CABLE GEH-WB02K0031
...
295
INSULATION VENT GEH-WB35X21564
...
1000
RUBBER STRIP FRONT FRAME GEH-WB04K10021
...
1120
BUMPER GEH-WB02K10179
...
1330
RECEIVER HINGE GEH-WB10X20220

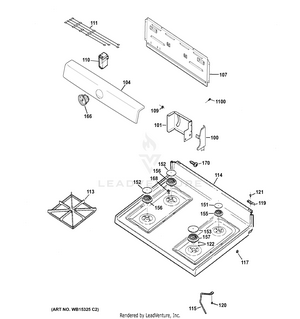

CONTROL PANEL & COOKTOP

...
...
100
END SUPPORT RIGHT GEH-WB07X20659
...
100
END SUPPORT LEFT GEH-WB07X20660
...
101
BRACKET COOK TOP RG GEH-WB37K10003
...
101
BRACKET COOK TOP LF GEH-WB37K10004
...
104
TRIM CONTROL GEH-WB36X20662
...
107
COVER BACK GEH-WB34X20669
...
109
SPEEDNUT GEH-WB01X5743
...
110
SPARK MODULE 4+0 GEH-WB13K10029
...
111
ELECTRODES & HARNESS H.V GEH-WB18X26312
...
113
GRATE ASM HAIRPIN HV GEH-WB31X20643
...
114
RANGE TOP GEH-WB62X26314
...
115
SUPPORT COOKTOP GEH-WB02K10276
...
117
PIN LOCATOR REAER GEH-WB14K10004
...
119
PIN HINGE GEH-WB14K0005
...
120
SCREW WASHER ASM GEH-WB01K0045
...
121
SCREW GEH-WB01K0001
...
122
CKT SCREW GEH-WB01X24735
...
151
ASM. CAP, BURNER SMALL V GEH-WB29X24720
...
152
ASM BURNER CAP (9500) GEH-WB29K10023
...
153
ASM BURNER CAP (12000) GEH-WB29K10024
...
155
BURNER, SMALL V2 GEH-WB16X24721
...
156
BURNER, MEDIUM V2 GEH-WB16X24724
...
157
BURNER, LARGE V2 GEH-WB16X24723
...
166
CLOCK GEH-WB24X20666
...
168
CLIP, IGNITER V2 GEH-WB02X24976
...
170
SCREW (BLK) GEH-WB01X5716
...
1100
SCREW 8-18 AB HXW 5/8 S GEH-WB01T10016

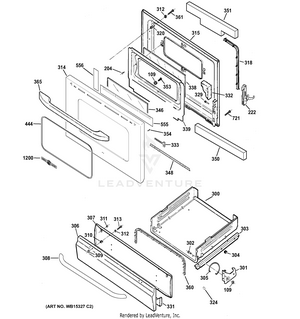

DOOR & DRAWER PARTS

...
...
109
SPEEDNUT GEH-WB01X5743
...
204
SCREW 8-18X5/8 HXW GEH-WZ04X0345
...
222
HINGE DOOR GEH-WB10X21979
...
300
BROILER WELD ASM GEH-WB39K0006
...
301
HINGE BROILER LEFT GEH-WB10K0006
...
301
HINGE BROILER RIGHT GEH-WB10K0005
...
302
PIN BROILER CR GEH-WB01K0007
...
303
SLIDE BROILER PAN GEH-WB39K10029
...
303
SLIDE BROILER PAN GEH-WB39K10030
...
304
SLIDE BROILER GEH-WB39K0009
...
305
SPRING BROILER RIGHT GEH-WB09K0002
...
305
SPRING BROILER LEFT GEH-WB09K0003
...
306
PANEL DRAWER GEH-WB56X21199
...
307
LINER DRAWER GEH-WB39K10028
...
308
HANDLE GEH-WB15X20668
...
310
SPACER GEH-WB02K0014
...
312
CONTOURED WASHER GEH-WB01X0119
...
313
SCREW GEH-WB01X5731
...
314
PANEL DOOR GEH-WB56X20674
...
315
LINER ASM WELD DOOR GEH-WB56X20206
...
318
GASKET DOOR ASM GEH-WB35X21191
...
320
SPACER GEH-WB02K10161
...
324
SCREW COVER GEH-WB02X21091
...
331
INSULATION DRAWER GEH-WB35K0003
...
332
SIDE INSULATION DOOR GEH-WB35K10146
...
333
BRACKET GLASS GEH-WB02X20705
...
338
CRYSTAL WINDOW GEH-WB56X20654
...
339
GUARD INSULATION GEH-WB56K10033
...
346
CRYSTAL WINDOW GEH-WB56X20655
...
348
CLIP CRYSTAL GEH-WB02X20682
...
350
BOTTOM INSULATION DOOR GEH-WB35K10147
...
351
INSULATION TOP DOOR GEH-WB35K10148
...
353
SCREW GEH-WB01K10070
...
354
SCREW 8-22 PL 1HX 71 GEH-WB01K10012
...
360
GASKET DRAWER ASM GEH-WB35X21089
...
361
SCR 10-32 TT PNT 2.05 GEH-WB01K10074
...
365
HANDLE DOOR (WH) GEH-WB15K0017
...
444
TRIM CRYSTAL GEH-WB56X20683
...
555
FOIL DOOR GEH-WB35X21084
...
556
FOIL DOOR GEH-WB35X21085
...
721
SCREW - DOOR ASM (4 PER) GEH-WB01X0593
...
1200
BADGE GEH-WB02X20703

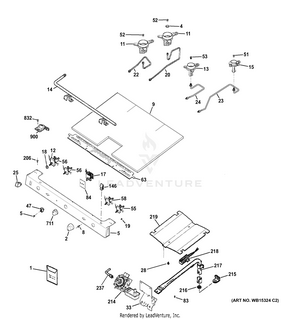

GAS & BURNER PARTS

...
...
1
PM MANUAL MINI & WD ASM GEH-31-17238
...
1
PM INSTALL INSTRUCTIONS GEH-31-11029
...
1
PM GAS QUICK GUIDE GEH-49-85230
...
1
KIT HIGH ALTITUDE ASM GEH-WB28X20684
...
1
PM INSTALL INSTRUCTIONS GEH-31-10905
...
1
HINGE SERVICE KIT GEH-WB49X21392
...
2
KNOB ASM GEH-WB03X20670
...
4
ECONOMIC NUT GEH-WB01K10037
...
5
MANIFOLD PANEL GEH-WB36X20652
...
9
ALUMINUM FOIL GEH-WB35X20681
...
11
INJET, MEDIUM V2 GEH-WB02X24727
...
12
SWITCHES & HARNESS BURNE GEH-WB24K10060
...
13
INJET, LARGE V2 GEH-WB02X24726
...
14
MANIFOLD PIPE GEH-WB28K10427
...
15
INJET, SMALL V2 GEH-WB02X24728
...
17
ELECTRIC THERMOSTAT GEH-WB24X20656
...
18
COVER VALVE GEH-WB02K0024
...
19
SCREW THERMOSTAT GEH-WB01K0008
...
20
REAR ORIFICE HOLDER LEFT GEH-WB28X26308
...
22
FRONT ORIFICE HOLDER LEF GEH-WB28X26306
...
23
REAR ORIFICE HOLDER RIGH GEH-WB28X26309
...
24
FRONT ORIFICE HOLDER GEH-WB28X26604
...
25
SWITCH ROCKER SEALED GEH-WB24X20459
...
28
SCREW MTG IGNITER GEH-WB01K0050
...
33
BRACKET REGULATOR GEH-WB02X22890
...
47
LAMP PILOT GEH-WB25K10002
...
51
ORIFICE SPUD GEH-WB28K10834
...
52
ORIFICE-LP 89MM GEH-WB28K10023
...
53
ORIFICE-LP LG 99MM GEH-WB28K10032
...
55
ROUND VALVE BURNER 140 GEH-WB21K10170
...
56
ROUND VALVE BURNER 140 GEH-WB28K10578
...
58
ROUND VALVE BURNER 140 GEH-WB21K10169
...
63
MANIFOLD SUPPORT GEH-WB34X20680
...
83
OVEN ORIFICE SPUD GEH-WB28X21079
...
84
COVER THERMOSTAT GEH-WB02K0006
...
146
CLIP RANGETOP GEH-WB02X26569
...
206
SCREW GEH-WB01K10091
...
214
VALVE CONTROL ASM NOR. S GEH-WB21X26605
...
215
BRACKET SAFETY VALVE GEH-WB02K0065
...
216
NUT LOCK GEH-WB01K0006
...
217
BURNER OVEN ASSY GEH-WB16X20253
...
218
IGNITER GLOWBAR GEH-WB13X25265
...
219
FLAME SPREADER GEH-WB49K0044
...
237
TUBE MANIFOLD SUPPLY ASM GEH-WB28X25363
...
711
KNOB ASM GEH-WB03X21086
...
832
SCREW THERMOSTAT GEH-WB01K10080
...
900
ROUND VALVE BRACKET GEH-WB02K10263
...
...
...
