product name

GE AEE12DTL1 Room Air Conditioner Portable

Model: AEE12DTL1

Save
 Part Not Listed?Part Not Listed?
product name

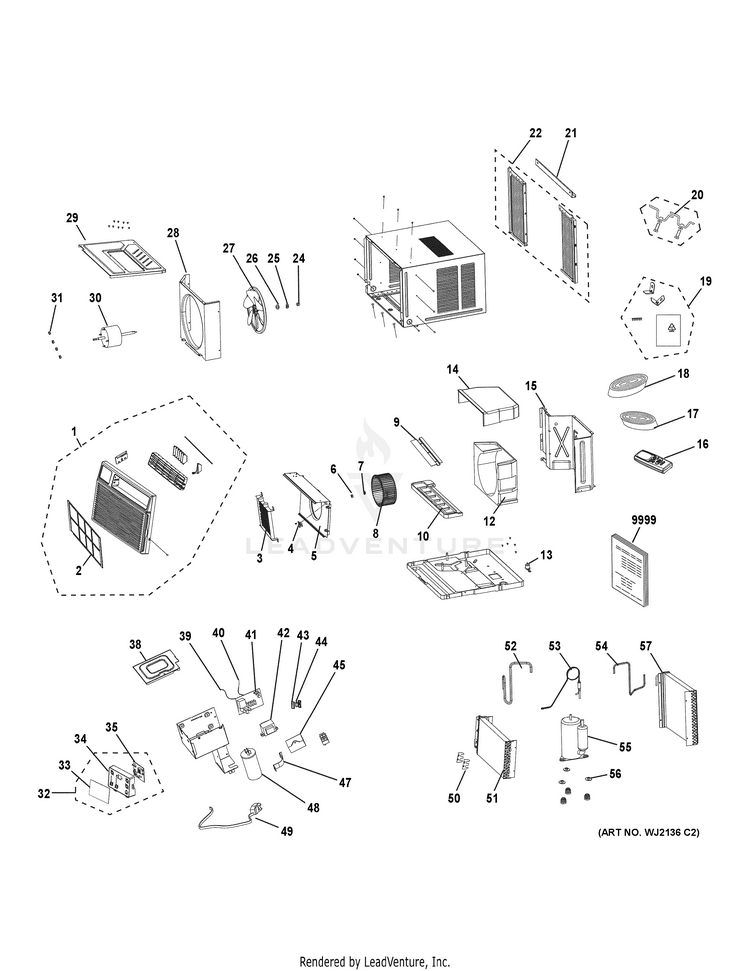

ROOM AIR CONDITIONER

...
...
1
PANEL ASM, FRONT GEH-WJ71X10777
...
2
FILTER GEH-WJ71X20614
...
3
ELECTRIC HEATER GEH-WJ27X10155
...
4
TCO GEH-WJ26X10332
...
5
COVER GEH-WJ79X20609
...
6
NUT (M8) GEH-WJ01X10358
...
6
NUT (M8) GEH-WJ01X20351
...
7
SPRING WASHER(DIA 8MM) GEH-WJ03X10075
...
7
SPRING WASHER (DIA 8MM) GEH-WJ01X20355
...
8
CENTRIFUGAL FAN ASM GEH-WJ73X10167
...
8
CENTRIFUGAL FAN SUB-ASSY GEH-WJ73X20320
...
9
SHIELD GEH-WJ70X10057
...
10
DRAINAGE PAN GEH-WJ70X10058
...
12
LOWER PROPELLER HOUSING GEH-WJ76X20345
...
12
LOWER SNAIL SHELL GEH-WJ76X10255
...
13
DRAIN VALVE GEH-WJ58X10044
...
14
UPPER AIRFLOW HOUSING GEH-WJ76X10340
...
15
MOTOR SUPPORTING ASSY GEH-WJ94X20347
...
16
REMOTE CONTROL GEH-WJ26X20522
...
17
FORM GASKET 1 GEH-WJ43X20337
...
17
SEAL STRIP 1 GEH-WJ44X10015
...
18
SEAL STRIP 2 GEH-WJ44X10016
...
18
FORM GASKET 2 GEH-WJ43X20338
...
19
HARDWARE ASM, INSTALL GEH-WJ01X20615
...
20
MOUNTING RACK SUB-ASSY GEH-WJ01X20349
...
20
MOUNTING RACK SUB ASM GEH-WJ79X10208
...
21
TOP GUIDE SUB-ASSY GEH-WJ01X20358
...
21
TOP GUIDE SUB ASM GEH-WJ68X10063
...
22
CURTAIN ASM GEH-WJ01X10359
...
22
CURTAIN ASM GEH-WJ68X20325
...
24
NUT WITH WASHER GEH-WJ01X10314
...
25
WASHER GEH-WJ01X10313
...
26
WASHER GEH-WJ01X10312
...
27
AXIAL FLOW FAN GEH-WJ73X10168
...
27
AXIAL FLOW FAN GEH-WJ73X20314
...
28
CONDENSOR COVER GEH-WJ79X10206
...
28
CONDENSER COVER GEH-WJ71X20324
...
29
TOP CONNETING PLATE GEH-WJ11X10023
...
30
MOTOR , FAN GEH-WJ95X10034
...
31
NUT(M4) GEH-WJ01X10412
...
31
NUT (M4) GEH-WJ01X20350
...
32
DISPLAY BOARD SUB ASM GEH-WJ26X20612
...
33
ESCUTCHEON GEH-WJ07X10265
...
34
PANEL, CONTROL GEH-WJ82X10099
...
35
DISPLAY BOARD GEH-WJ26X20611
...
38
ELECTRIC BOX COVER GEH-WJ26X10279
...
39
SENSOR, ROOM TEMP. GEH-WJ27X10168
...
40
SENSOR, AIR DISCHARGE GEH-WJ27X10169
...
41
MAIN BOARD GEH-WJ29X10052
...
42
TRANSFORMER GEH-WJ27X10154
...
43
COVER, OLP GEH-WJ79X10255
...
44
PROTECTOR, MOTOR GEH-WJ23X10165
...
45
CAPACITOR GEH-WJ20X20606
...
47
CAPACITOR CLAMP GEH-WJ02X10032
...
48
CAPACITOR CBB65 GEH-WJ20X20435
...
49
POWER CORD GEH-WJ35X10181
...
50
SENSOR SUPPRT GEH-WJ02X10036
...
51
EVAPORATOR ASM GEH-WJ88X20613
...
52
SUCTION TUBE GEH-WJ57X20616
...
53
CAPILLARY SUB ASM GEH-WJ53X20607
...
54
DISCHARGE TUBE GEH-WJ49X20610
...
55
COMPRESSOR AND FITTINGS GEH-WJ98X20608
...
56
NUT WITH WASHER M6 GEH-WJ01X10432
...
56
BOLT GEH-WJ01X20241
...
57
CONDENSER ASSY GEH-WJ87X20366
...
9999
PM MINI MANUAL GEH-31-30728
...
...
...
