GE AEE12DSW1 Room Air Conditioner

Model: AEE12DSW1

Save
 Part Not Listed?Part Not Listed?
product name

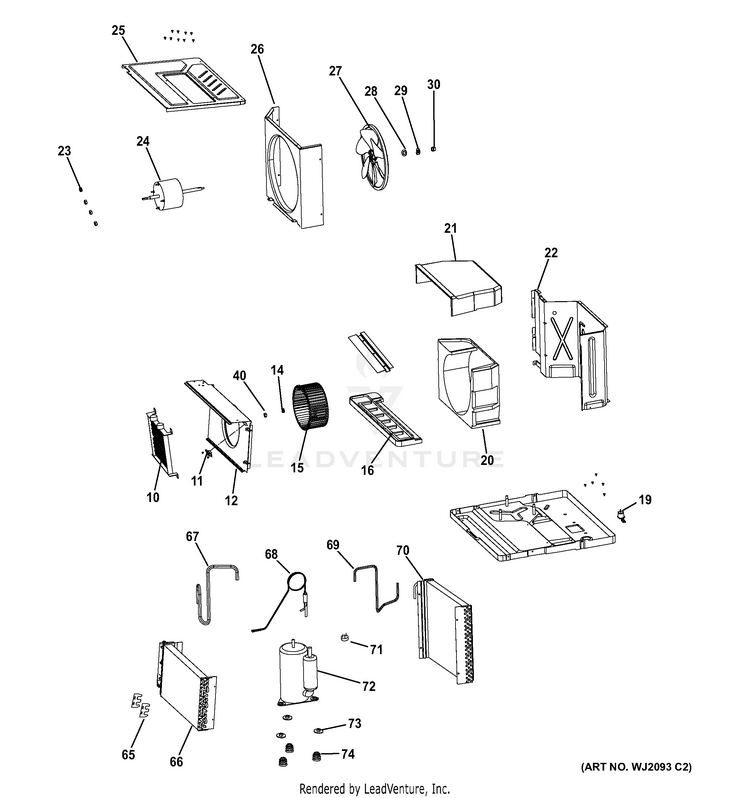

BASE PAN & UNIT PARTS

...
...
10
ELECTRIC HEATER GEH-WJ27X10155
...
11
TCO GEH-WJ26X10332
...
12
COVER, EVAPORATOR GEH-WJ79X10272
...
14
SPRING WASHER(DIA 8MM) GEH-WJ03X10075
...
15
CENTRIFUGAL FAN GEH-WJ73X10224
...
16
DRAINAGE PAN GEH-WJ70X10058
...
19
DRAIN VALVE GEH-WJ58X10044
...
20
LOWER SNAIL SHELL GEH-WJ76X10255
...
21
UPPER AIRFLOW HOUSING GEH-WJ76X10340
...
22
MIDDLE INSULATION PLATE GEH-WJ45X10031
...
23
NUT(M4) GEH-WJ01X10412
...
24
MOTOR , FAN GEH-WJ95X10034
...
25
TOP CONNETING PLATE GEH-WJ11X10023
...
26
REAR INSULATION PLATE GEH-WJ76X10257
...
27
AXIAL FLOW FAN GEH-WJ73X10168
...
28
WASHER GEH-WJ01X10313
...
29
WASHER GEH-WJ01X10312
...
30
NUT WITH WASHER GEH-WJ01X10314
...
40
NUT (M8) GEH-WJ01X10358
...
65
SENSOR SUPPRT GEH-WJ02X10036
...
66
EVAPORATOR ASM GEH-WJ88X10265
...
67
SUCTION TUBE GEH-WJ57X10057
...
68
CAPILLARY TUBES GEH-WJ53X10274
...
69
DISCHARGE TUBE GEH-WJ49X10059
...
70
CONDENSER ASM GEH-WJ87X10291
...
71
OVERLOAD PROTECTOR GEH-WJ23X10168
...
72
COMPRESSOR ASM GEH-WJ98X10331
...
73
RUBBER GROMMET GEH-WJ01X10361
...
74
NUT WITH WASHER M8 GEH-WJ01X10335

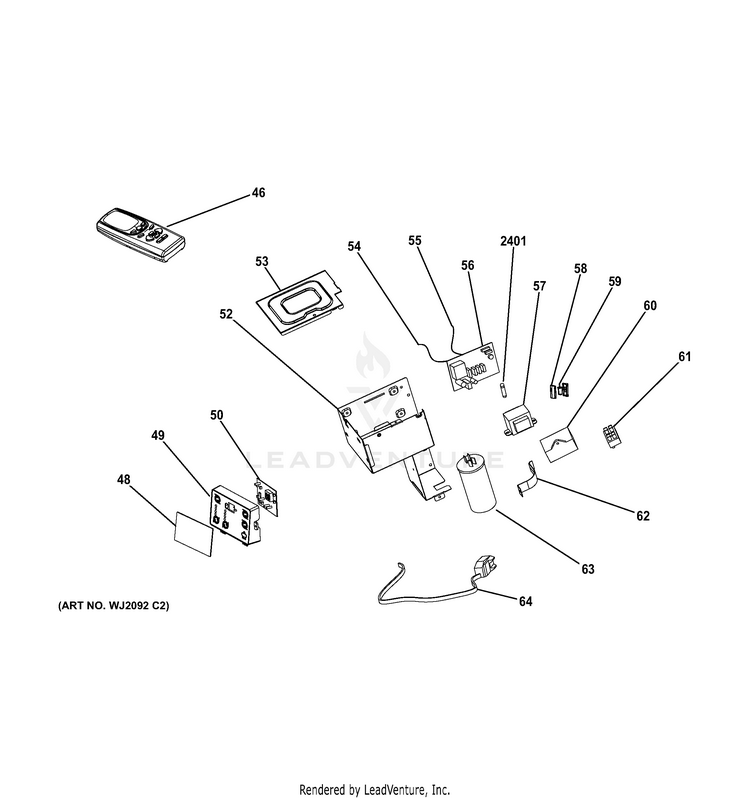

CONTROL PARTS

...
...
46
CONTROL, REMOTE GEH-WJ26X10354
...
46
SCREW 8-16 B FLP 625 ZN GEH-NCN
...
48
ESCUTCHEON GEH-WJ07X10265
...
49
PANEL, CONTROL GEH-WJ82X10099
...
50
BOARD, DISPLAY GEH-WJ26X10375
...
52
ELECTRIC BOX GEH-WJ79X10271
...
53
ELECTRIC BOX COVER GEH-WJ26X10279
...
54
SENSOR, ROOM TEMP. GEH-WJ27X10168
...
55
SENSOR, AIR DISCHARGE GEH-WJ27X10169
...
56
MAIN BOARD GEH-WJ29X10052
...
57
TRANSFORMER GEH-WJ27X10154
...
58
COVER, OLP GEH-WJ79X10255
...
59
PROTECTOR, MOTOR GEH-WJ23X10165
...
60
COMPRESSOR CAPACITOR GEH-WJ20X10148
...
61
TERMINAL BOARD GEH-WJ26X10310
...
62
CAPACITOR CLAMP GEH-WJ02X10032
...
63
CAPACITOR GEH-WJ20X10202
...
64
POWER CORD GEH-WJ35X10181
...
2401
FUSE, MAIN BOARD GEH-WJ23X10174

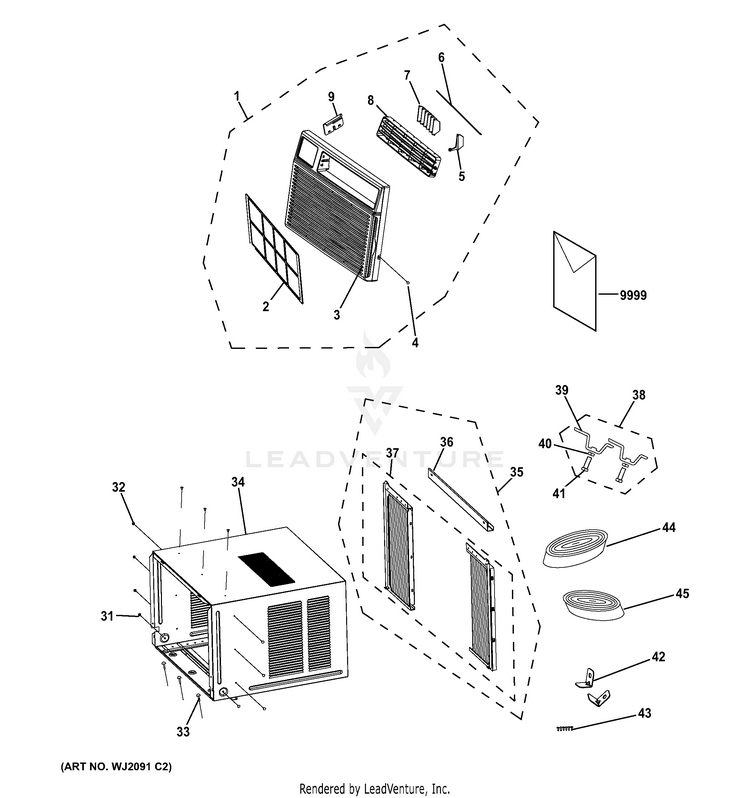

GRILLE & CHASSIS PARTS

...
...
1
PANEL ASM, FRONT GEH-WJ71X10777
...
2
FILTER GEH-WJ71X10571
...
3
FRONT PANEL DOOR GEH-WJ71X10636
...
4
SCREW GEH-WJ01X10430
...
5
SWING LOUVER 1 GEH-WJ71X10573
...
6
AIR GUIDE LEVER GEH-WJ14X10079
...
7
SWING LOUVER 2 GEH-WJ71X10574
...
8
DIRECTIONAL VENT GEH-WJ71X10572
...
9
SUPPORT OF LOUVER GEH-WJ01X10310
...
31
SELF-TAPPING SCREW GEH-WJ01X10352
...
32
SCREW GEH-WJ01X10413
...
33
SCREW GEH-WJ01X10414
...
34
CABINET ASM GEH-WJ90X10134
...
35
FLEX MOUNTED FRAME GEH-WJ71X10575
...
36
TOP GUIDE SUB ASM GEH-WJ68X10063
...
37
CURTAIN ASM GEH-WJ01X10359
...
38
MOUNTING RACK SUB ASM GEH-WJ79X10208
...
39
MOUNTING RACK GEH-WJ79X10209
...
40
NUT (M8) GEH-WJ01X10358
...
41
BOLT (M8) GEH-WJ01X10360
...
42
WINDOW LOCKING BRACKET GEH-WJ66X10098
...
43
SCREW GEH-WJ01X10351
...
44
SEAL STRIP 1 GEH-WJ44X10015
...
45
SEAL STRIP 2 GEH-WJ44X10016
...
9999
USE & CARE MANUAL GEH-49-7665-1
...
9999
MINI MANUAL GEH-31-61698
...
...
...
