Echo GT-140 Grass Trimmer

Model: GT-140

Save
 Part Not Listed?Part Not Listed?
product name

Clutch, Exhaust, Fan Case, Fuel System, Intake, Starter

...
...

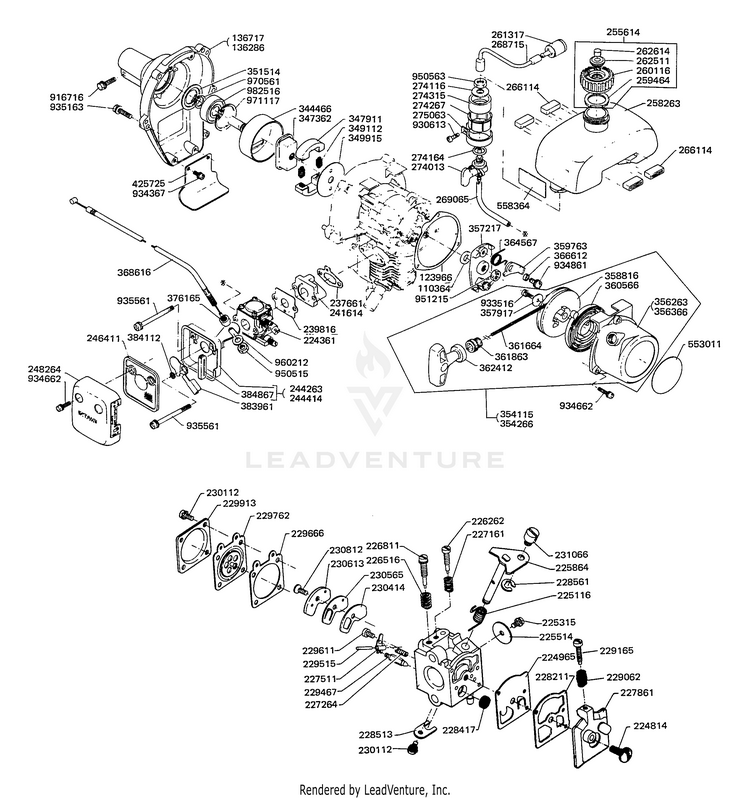

110364
WASHER ECH-10014605930
...
123966
GASKET, STARTER ECH-10061506530
...
136286
CASE, FAN (F-2/1 ONLY) ECH-10151105420
...
136717
CASE, FAN (KE-140DA, F-2/2, 3 ONLY) ECH-10151107330
...
224361
CARBURETOR - WA-80 ECH-12300006320
...
224814
SCREW ECH-12311003930
...
224965
DIAPHRAGM, FUEL PUMP Included in Dia/Gskt Kit 12310103930 or Rebuild Kit 12310006520 ECH-12311203930
...
225116
SPRING, THROTTLE RETURN ECH-12311309660
...
225315
SCREW ECH-12311403930
...
225514
VALVE, THROTTLE ECH-12311606530
...
225864
SHAFT, THROTTLE ECH-12311706530
...
226262
NEEDLE, IDLE ECH-12311806530
...
226516
SPRING, NEEDLE ECH-12311903930
...
226811
NEEDLE, HIGH SPEED ECH-12312006530
...
227161
SPRING, NEEDLE ECH-12312103930
...
227264
SPRING, METERING LEVER Included in Rebuild Kit 12310006520 ECH-12312203660
...
227511
LEVER, METERING Included in Rebuild Kit 12310006520 ECH-12312338330
...
227861
COVER, PUMP ECH-12312407330
...
228211
GASKET, FUEL PUMP Included in Dia/Gskt Kit 12310103930 or Rebuild Kit 12310006520 ECH-12312503930
...
228417
SCREEN, FUEL INLET Included in Rebuild Kit 12310006520 ECH-12312610631
...
228513
CLIP, THROTTLE SHAFT ECH-12312703930
...
228561
RING, RETAINING ECH-12312710630
...
229062
SPRING, IDLE ADJUST ECH-12313311130
...
229165
SCREW, IDLE ADJUST ECH-12313406530
...
229467
VALVE, INLET NEEDLE Included in Rebuild Kit 12310006520 ECH-12313703930
...
229515
PIN, METERING LEVER ECH-12313803930
...
229611
SCREW, METERING LEVER PIN ECH-12313903930
...
229666
GASKET, METERING DIAPHRAGM Included in Dia/Gskt Kit 12310103930 or Rebuild Kit 12310006520 ECH-12314003930
...
229762
DIAPHRAGM, METERING Included in Dia/Gskt Kit 12310103930 or Rebuild Kit 12310006520 ECH-12314103930
...
229913
COVER, METERING DIAPHRAGM ECH-12314203930
...
230112
SCREW ECH-12314403930
...
230414
GASKET, CIRCUIT PLATE Included in Dia/Gskt Kit 12310103930 or Rebuild Kit 12310006520 ECH-12316403930
...
230565
VALVE, CHECK Included in Dia/Gskt Kit 12310103930 or Rebuild Kit 12310006520 ECH-12316503930
...
230613
PLATE, CIRCUIT ECH-12316603930
...
230812
SCREW, CIRCUIT PLATE ECH-12316705230
...
231066
SWIVEL ECH-12317204320
...
237661
GASKET, INTAKE ECH-13001006530
...
239816
PACKING ECH-13001606531
...
241614
INSULATOR, INTAKE ECH-13001707330
...
244263
CASE, AIR FILTER (KE-140DA ONLY) ECH-13030105021
...
244414
CASE, AIR FILTER (F2/1, 2, 3 ONLY) ECH-13030107430
...
246411
FILTER, AIR ECH-13031006530
...
248264
COVER, AIR FILTER ECH-13031305020
...
255614
CAP ASSY ECH-13100406320
...
258263
FUEL TANK KIT ECH-13100207330
...
259464
PACKING ECH-13101604920
...
260116
CAP ASSY ECH-13100406320
...
261317
FILTER, FUEL ECH-A369000480
...
262511
VENT ASSY ECH-13131406320
...
262614
FILTER, CHECK VALVE ECH-13131505020
...
266114
FUEL TANK KIT ECH-13100207330
...
268715
PIPE, FUEL ITEM IS NO LONGER AVAILABLE ECH-13201004630
...
269065
PIPE, FUEL 3x6x85 BLACK ECH-13201006531
...
274013
FUEL VALVE ASSY ECH-13220006530
...
274116
WASHER ECH-13221706530
...
274164
GASKET ECH-13221806530
...
274267
COLLAR ECH-13221907330
...
274315
SEAL ECH-13222005020
...
275063
CLAMP ECH-13250506530
...
344466
DRUM, CLUTCH ECH-17501004920
...
347362
HUB, CLUTCH ECH-17501607330
...
347911
SHOE, CLUTCH ECH-17501704631
...
349112
SPRING, CLUTCH ECH-17501806530
...
349915
PLATE, CLUTCH ECH-17501906530
...
351514
STOPPER ECH-175053-04920
...
354115
STARTER ASSY (KE-140DA, F-2/2, 3 ONLY) ECH-17720006030
...
354266
STARTER ASSY (F-2/1 ONLY) ECH-17720006530
...
356263
CASE, STARTER (KE-140DA, F-2/2, 3 ONLY) ECH-17720906030
...
356366
CASE, STARTER (F-2/1 ONLY) ECH-17720906530
...
357217
PAWL CATCHER ECH-17721006530
...
357917
WASHER 4.1x15.5x1T ECH-17721404630
...
358816
REEL, ROPE ECH-17721506530
...
359763
RATCHET ECH-17721806530
...
360566
SPRING, RECOIL ECH-17722006530
...
361664
ROPE, STARTER 3.0x850 RePower BULK OPTION: 99944445000 ECH-17722606530
...
361863
GUIDE, ROPE ECH-17722705330
...
362412
GRIP, STARTER ECH-17722806530
...
364567
SPRING ECH-17723406530
...
366612
SPACER 5.2x8x2.1 ECH-17724704630
...
368616
CABLE, THROTTLE ECH-17800104320
...
376165
NUT (KE-140DA ONLY) ECH-17802107330
...
383961
SHUTTER, CHOKE ECH-17851506530
...
384112
WASHER 5.2x8x0.8T ECH-17851600830
...
384867
GROMMET ECH-17881005020
...
425725
BRACKET ECH-30511007331
...
553011
LABEL - ECHO (KE-140DA ONLY) ECH-X502000320
...
558364
LABEL - FUEL VALVE ECH-89015906530
...
916716
BOLT 5x20 ECH-90014205020
...
930613
SCREW 4x14 ECH-90022004014
...
933516
SCREW 4x10 ECH-90024204010
...
934367
SCREW 4x10 ECH-90024204010
...
934662
SCREW 4x20 ECH-90024204020
...
934861
SCREW 5x10 ECH-90024205010
...
935163
SCREW 5x22 ECH-90024205022
...
935561
SCREW 5x57 ECH-90024205057
...
950515
NUT M6 (KE-140DA ONLY) ECH-90050200006
...
950563
NUT 8x1.25 ECH-90050200008
...
951215
NUT 8 ECH-90051200008
...
960212
WASHER 6.5x11.5x0.8 (KE-140DA ONLY) ECH-90060000006
...
970561
RING, SNAP 12 ECH-90070100012
...
971117
RING, SNAP 32 ECH-90070200032
...
982516
BEARING, BALL 6201 ECH-90081206201
...
xx
GASKET / DIAPHRAGM KIT ECH-12310103930
...
xx
REPAIR KIT, CARBURETOR ECH-12310006520

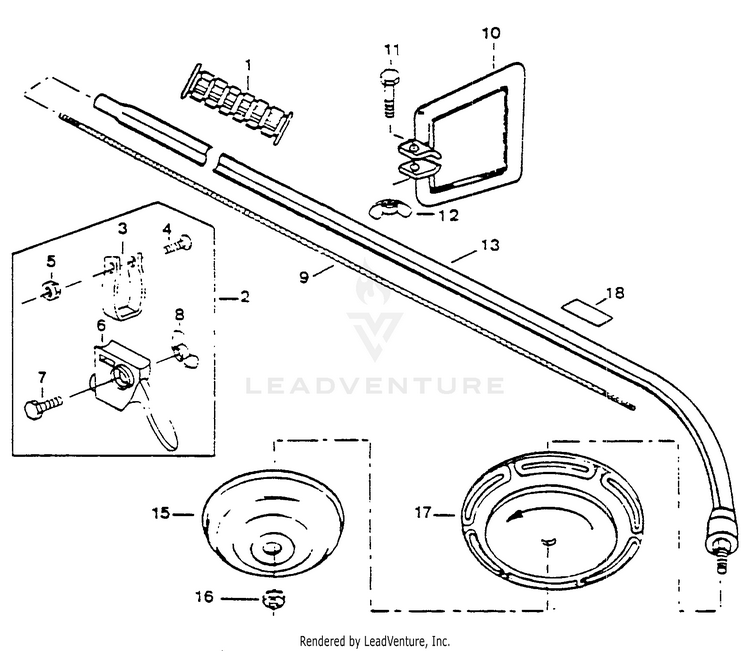

Driveshaft, Line Head, Throttle, Handles

...
...
1
GRIP ECH-205972
...
2
CONTROL CABLE ASSY Incl. items 3, 4, 5, 6, 7, 8 ECH-205977
...
3
CLAMP, THROTTLE ECH-205978
...
4
SCREW - 10-32 - PAN HEAD ECH-205594
...
5
NUT - 10-32 ECH-205595
...
6
LEVER THROTTLE W/BODY NOT AVAILABLE SEPARATELY ECH-205532
...
7
LEVER THROTTLE W/BODY NOT AVAILABLE SEPARATELY ECH-205532
...
8
LEVER THROTTLE W/BODY NOT AVAILABLE SEPARATELY ECH-205532
...
9
DRIVESHAFT - FLEXIBLE ECH-C506000030
...
10
GUIDE HANDLE ECH-207164
...
11
SCREW - 1/4-20 - HEX HEAD ECH-207296
...
12
WINGNUT - 1/4-20 ECH-206826
...
13
DRIVESHAFT ASSY - LEFT ECH-207172
...
14
MONO-HEAD W/0.080 LINE COMPLETE ECH-207183
...
15
LID ECH-207078
...
16
SCREW - 1/4-20 ECH-207295
...
17
HEAD BODY MONO-HEAD ECH-207300
...
18
LABEL - LUBRICATION ECH-206945

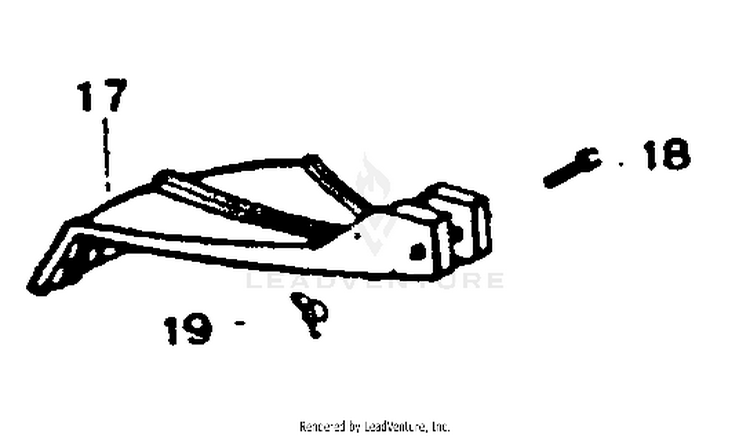

Shield

...
...
xx
GRASS SHIELD ASSY. ECH-69900006320
...
17
GRASS SHIELD ASSY. ECH-69900006320
...
18
SCREW - 1/4-20 - HEX HEAD ECH-207296
...
19
WINGNUT - 1/4-20 ECH-206826

Attachments

...

No Parts Available for this Schematic

...
...
...
