product name

Echo 99944100001 Tube Mount Throttle Kit

Model: 99944100001 Tube Mount Throttle Kit

Save
 Part Not Listed?Part Not Listed?
product name

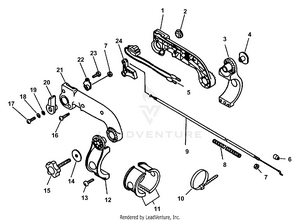

Tube Mount Throttle Kit 99944100001

...
...
1
CONTROL HANDLE - RIGHT ECH-35131107560
...
2
PLUG ECH-35114607560
...
3
HANDLE BRACKET KIT ECH-P021014110
...
4
NUT ECH-17802108260
...
5
SWITCH, ON-OFF ECH-16340008262
...
6
CAP, DUST ECH-17808208260
...
7
NUT, HEX M6 ECH-90050000006
...
8
TUBE, FLEXIBLE 7x790 ECH-V475000000
...
9
CABLE, THROTTLE ECH-17800108360
...
10
STRAP, TIE - LARGE ECH-17812109860
...
11
COLLAR ECH-21001907560
...
12
HANDLE BRACKET KIT ECH-P021014110
...
13
SCREW, TAPPING 5x20 ECH-90025305020
...
14
WASHER ECH-17851607560
...
15
KNOB, SCREW ECH-V299000630
...
16
SCREW 4x22 ECH-90025604022
...
17
SCREW 6x20 ECH-90023506020
...
18
WASHER, SPRING 6 ECH-90060500006
...
19
WASHER 6.5x13x1 ECH-90060300006
...
20
CONTROL, THROTTLE ECH-17805407560
...
21
CONTROL HANDLE - LEFT ECH-35131507560
...
22
BRACKET, THROTTLE ECH-17812307561
...
23
SCREW 4x10 ECH-90024504010
...
24
TRIGGER, THROTTLE ECH-17801007561
...
xx
THROTTLE CONTROL ASSY ECH-99944100001
...
...
...
