product name

Echo 90083 Oiler Gear Case Assembly - 35mm

Model: 90083 Oiler Gear Assembly - 35mm

Save
 Part Not Listed?Part Not Listed?
product name

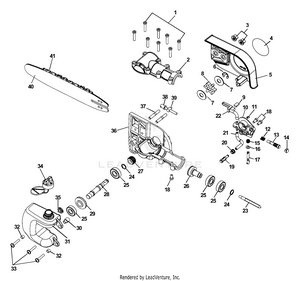

Oiler Gear Case Assembly - 35mm

...
...
1
BOLT 5x0.8x25 ECH-90010905025
...
2
COVER, GEAR CASE ECH-C531000030
...
3
NUT, FLANGE M6 ECH-43301903933
...
4
LABEL - STARTER - ECHO ECH-X502000330
...
5
GUARD, SPROCKET ECH-C300000001
...
6
RING, RETAINING 0.300 ECH-V583000010
...
7
WASHER 10 ECH-17501439131
...
8
SPROCKET, DRIVE ECH-C580000070
...
9
PAD, FOAM ECH-43724439130
...
10
AUTO-OILER ASSY Includes ITEMS 11-17 ECH-43700239130
...
11
E-RING ECH-12312715030
...
12
SPRING ECH-43701938330
...
13
PLUNGER ASSY ECH-43702437330
...
14
CAP, OIL PUMP ECH-43706237330
...
15
SPRING ECH-43701537330
...
16
WASHER ECH-43702937330
...
17
ADJUSTER, OILER ECH-43701639130
...
18
SCREW M5x.8x10 ECH-V253000010
...
19
FILTER, OIL ECH-P100001900
...
20
GROMMET ECH-13211501462
...
21
PIPE, IMPULSE 3x6x75 RePower BULK OPTION: 90014 ECH-13011014330
...
22
PIPE, OIL OUTLET ECH-43721139134
...
23
CONNECTOR, DRIVESHAFT ECH-61002522361
...
24
RING, SNAP 12 ECH-90070600012
...
25
BEARING, BALL ECH-9404206001
...
26
GEAR SET, BEVEL ECH-P021009723
...
27
GEAR, WORM ECH-V652000021
...
28
SHAFT KIT, GEAR ECH-P021011610
...
29
SHAFT KIT, GEAR ECH-P021011610
...
30
COLLAR 6 ECH-V354000010
...
31
TANK, OIL ECH-C200000000
...
32
SPACER 6.2x7.8x6 ECH-13104528230
...
33
SCREW 5x28 ECH-V253000020
...
34
CAP ASSY, OIL ECH-P021000951
...
35
VENT ASSY ECH-13131406320
...
36
CASE KIT, GEAR ECH-P021049720
...
37
BOLT, STUD 6 ECH-V224000000
...
38
BOLT 5 ECH-43301639131
...
39
TENSIONER, CHAIN ECH-43301403931
...
40
GUIDE BAR ECH---
...
------------------
SAW CHAIN ECH---
...
...
...
