product name

Echo 21560070 ECHOmatic Head

Model: 21560070 ECHOmatic Head

Save
 Part Not Listed?Part Not Listed?
product name

ECHOmatic Head -- 21560070

...
...
1

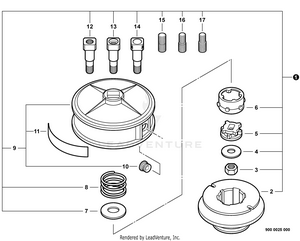

TRIMMER HEAD, SRM ECHOMATIC® Includes ITEMS 2-17 ECH-21560070
...
2
SPOOL ECH-X472000050
...
3
NUT, LOCK 8 ECH-V265000470
...
4
WASHER 8 ECH-V306000130
...
5
CAM, INNER ECH-X471000100
...
6
CAM, OUTER ECH-P022006760
...
7
WASHER 14 ECH-V310000060
...
8
SPRING, COMPRESSION ECH-V450001700
...
9
HOUSING ASSY, SPOOL ECH-X470000252
...
10
EYELET ECH-X475000110
...
11
LABEL - CAUTION ECH-X505006451
...
12
STUD, ARBOR M10x1.25 FLH / 5/16"-24 MRH ECH-X471000020
...
13
STUD, ARBOR M10x1.25 FLH / 5/16"-24 MRH, 12 MM CBORE ECH-X471000120
...
14
STUD, ARBOR M10x1.00 FLH / 5/16"-24 MRH, 15 MM CBORE ECH-X471000130
...
15
BOLT, STUD M10/M10x1.25 LH BLACK ECH-V226000070
...
16
BOLT, STUD M8/M10x1.25 LH SILVER ECH-V225000320
...
17
BOLT, STUD M7x1.00 /M10x1.25 LH GOLD ECH-V216000110
...
...
...
