Briggs & Stratton 9898-2 - 580.751782, 2,500 PSI Craftsman

Model: 9898-2 - 580.751782, 2,500 PSI

Save
Part Not Listed?Part Not Listed?

product name

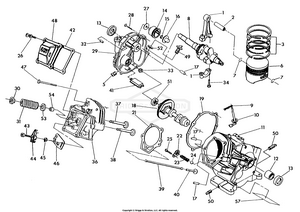

Repair Parts Drawing No. 88588

...
...
1
Connector Rod and Cap Assembly BS-76380

...
2
Piston Pin BS-76389

...
3
Piston Ring Set (Standard Size) BS-88411

...
4
1/4" Npt Magnetic Pipe Plug BS-81694

...
5
1/8" Npt Pipe Plug BS-72683

...
6
75mm dia. Piston BS-88057

...
7
(C) BELT SHIELD WELD BS-7047947YP

...
8
Crankshaft Assembly High Gear BS-83338

...
9
Governor Arm "R" Pin BS-78658

...
10
Governor Arm BS-76354

...
11
Crankcase Sub-assembly BS-89213A

...
12
Sleeve Bearing BS-76349

...
13
Crankshaft Oil Seal BS-81695

...
14
Governor Gear Assembly BS-76359

...
15
Governor Retainer ("C" Ring) BS-78645

...
16
Governor Spool BS-76365

...
17
12mm I.d. Dowel Sleeve BS-78699B

...
18
Camshaft Assembly BS-83335

...
19
Crankcase Flange Gasket BS-89096

...
21
Cylinder Head Gasket BS-88058

...
22
Oil Pressure Spring Retainer BS-78691

...
23
Oil Pressure Spring BS-76367

...
24
Oil Pressure Ball BS-76362

...
25
M5 Thread-forming Bolt BS-78692

...
26
M6-1.0 x 12mm Screw and Lock Washer BS-78606

...
27
Thrust Washer BS-76361

...
28
Flanged Hex Head Capscrew BS-89230

...
30
Valve Spring Retainer Valve BS-86293

...
31
Valve Spring BS-88401

...
32
10 x 20 Dowel Pin BS-88590

...
33
Inner Gerotor BS-83152

...
34
Connecting Rod Bolt BS-76381

...
35
Governor Arm Washer BS-78659

...
36
Cylinder Head Casting Assembly BS-88404B

...
37
Exhaust Valve BS-90082

...
38
Muffler BS-93259

...
39
Push Rod BS-88396A

...
40
Tappet BS-83235

...
41
Oil Pickup Assembly BS-80336

...
42
Rocker Cover Gasket BS-88397

...
43
Ball Pivot Stud BS-77161

...
44
Rocker Arm BS-77160

...
45
Jam Nut (Rocker Arm) BS-76307

...
46
Push Rod Guide Plate BS-88403

...
47
M8 x 52mm Head Bolt BS-77168

...
48
Rocker Cover Breather Assembly BS-88412

...
49
Oil Fill Plug BS-76329

...
50
BELT,TRACTION DRIVE BS-7072657YP

...
51
Outer Gerotor BS-83153

...
52
"O" Ring (17.8" I.d. x 2" Thick) BS-86254

...
53
Wear-Valve Spring Washer BS-84186

...
54
Intake Valve Seal BS-88156

...
57
Decal-Serial Number BS-83773F

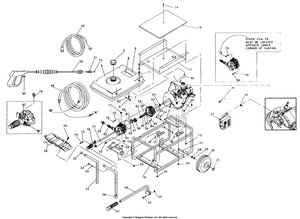

Repair Parts Drawing No. 98171

...
...
1
7.8 HP Engine BS-90995

...
3
SUPPORT, Engine BS-B84021GS

...
4
KIT, TANK, FUEL, RETRO BS-195617GS

...
5
CAP, Fuel Tank BS-846987

...
6
PULLEY CATCHER HZT/ BS-7078298YP

...
7
Kit, Valve BS-192980GS

...
8
Starting instruction BS-96404

...
9
Danger Decal BS-96405

...
10
HHMS, M6-1.0 x 60 (BLACK) BS-78831BGS

...
11
GROMMET, TANK BS-83465GS

...
12
NUT, FLANGE LOCK - M6 BS-77395GS

...
13
HTSHLD, PW BS-87840GS

...
14
CLIP, INSULATION BS-85000GS

...
15
INSULATION BS-84687GS

...
16

...
17
MOUNT, Vibration BS-84508GS

...
18

...
19
TPHMS, M8 - 1.25 x 35 BS-195398GS

...
20
NUT, Locking Hex M8 - 1.25 BS-52858GS

...
21
Pump Support Bracket BS-95635

...
22

...
24
WIREFORM, HLDR, WAND BS-87985GS

...
25

...
26
Wire Basket BS-87836

...
27
AXLE, 12.7 X 106, ZNC PLT BS-93728AGS

...
28
JAM NUT, Lock 5/8" - 18 BS-94222QGS

...
29
WASHER, Flat BS-49808GS

...
30
ASSY., Wheel & Tire 10" BS-88521GS

...
31
PUSHNUT BS-194062GS

...
32
LEG, SPPRT BS-95189GS

...
33

...
34
Washer, .34 x 1 x 10 BS-50190GS

...
35
CAP PLUG, Tubing BS-46476GS

...
36

...
37
KIT, MFFLR & BRCKT, SRV BS-195002GS

...
38
C-RING, 40.8 ID X 2.16 DIA BS-97675GS

...
39
RETAINER, PUSH ON BS-95524GS

...
40
WSHR, THRUST BS-97570GS

...
41
M8-1.25 x 20mm Capscrew BS-40976

...
42
GSKT, EXHAUST BS-80314GS

...
46
Guide Handle BS-95194

...
47
GRIP, HNDL BS-77584GS

...
48
3/8" 1.D. Hose Assembly BS-89634

...
49
ASSY, HOSE, CHEM INJ BS-96168GS

...
50
GUN, 2500PSI, 3/8, M22, MV BS-95567GS

...
51
NZZL, HI-LO, 1.15, M22, MV BS-95587BGS

...
52
Garden Hose Quick Connect BS-7175187GS

...
53
Garden Hose Quick Connect BS-7175187GS

...
54
Pump Head Assembly BS-95319C

...
55
O-RING, Crankcase BS-93790GS

...
56
SHOE, Piston Pivot BS-94944GS

...
57
ASSY, BRNG, RLLR, THRST, 81110 BS-96542GS

...
58
3.0 GPM Axial Cam BS-96865

...
59
ADPTR, ENG, MCHND BS-96430AGS

...
60
ASSY, BRNG, RLLR, THRST, 81110 BS-96542GS

...
62
Engine Shaft Adaptor BS-94535

...
63
GSKT, ADPTR, ENG BS-93871GS

...
64
CAPSCREW, Socket Head BS-23707GS

...
65
WASHER, Lock BS-92479GS

...
66

...
67
PLATE, SPACER, ENG D.1.62 BS-95441GS

...
70
M6 Ribbed Lock Washer BS-93873

...
71
Oil Fill Cap/Breather BS-95454

...
72
NUT-M6 FLANGE BS-52857GS

...
73

...
74

...
75
M6 Ribbed Lock Washer BS-93873

...
76
Preset Unloader Assembly BS-96581F

...
77

...
78
GAUGE, 5000PSI PW, 1/8 IN Optional BS-94197GS

...
79

...
81

...
82
CLAMP, Hose 13/32" BS-48031GGS

...
83
MANUAL-OPERATOR Not shown BS-98168GS

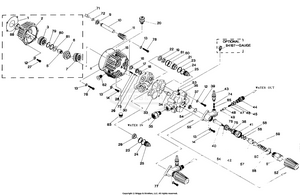

Repair Parts Drawing No. 98172

...
...
1
GSKT, ADPTR, ENG BS-93871GS

...
2
ADPTR, ENG, MCHND BS-96430AGS

...
3
ASSY, BRNG, RLLR, THRST, 81110 BS-96542GS

...
5
ADPTR, 3/4 SHAFT, HEX BS-95435GS

...
6
Axial Cam BS-96865

...
7
ASSY, BRNG, RLLR, THRST, 81110 BS-96542GS

...
8
O-RING, Crankcase BS-93790GS

...
9
RETAINER, SPRING, PSTN BS-95386GS

...
10
Piston, D15 S.S. BS-95217

...
11
SPRING, Piston Return BS-96400GS

...
12
WASHER, Lock BS-92479GS

...
13
M6 Ribbed Lock Washer BS-93873

...
14

...
15

...
16
SEAL, Oil Piston BS-93680GS

...
17
SPACER, PILOT BS-93668GS

...
18
SEAL, PSTN, U-CUP BS-93667GS

...
19
RING, Bearing BS-96015GS

...
20
Oil Fill/Breather BS-95454

...
21
TOWER, HI-PRESS PORT BS-95895GS

...
22
SEAL, High Pressure BS-96053GS

...
23
RING, BACKUP, HYTRILE BS-95504GS

...
24
O-RING, 0.67 X 0.88 X 0.10 BS-95503GS

...
25
ASSY, VLV, CHK, PW BS-96005GS

...
26
Check Valve Seat Support BS-95896

...
27
CAPSCREW, Socket Head BS-23707GS

...
28
SPRING, Thermal By-Pass BS-93652GS

...
29
PISTON, Thermal By-Pass BS-95416GS

...
30
Spacer Plate BS-94402

...
31
O-RING, 4.5 X 8 X 1.8 BS-93673GS

...
32
PPHMS, M5-0.8 X 20 BS-93678GS

...
33
Head Gasket BS-93645

...
34
ACTUATOR, Thermal By-Pass BS-93644GS

...
35
Conn, Gdn Hse BS-95320GS

...
36
Cylinder Head BS-95138

...
37
ASSY, SEAT/O-RING BS-95382GS

...
38
TERMINAL, Ground BS-691084

...
39

...
40
ASSY, SPINDLE, UNLDR BS-95373GS

...
41
GUIDE, PSTN, UNLDR BS-95367GS

...
42
O-RING, 14 X 1.8 BS-95372GS

...
43
FTG, CHEM INJ BS-95378GS

...
44
ADPTR, OUT, PRSSR, HI BS-95377GS

...
45
O-RING, 13 X 16 X 1.8 BS-93788GS

...
46
O-RING, 16 X 19 X 1.8 BS-93787GS

...
47
SPRING, RETURN, SHUTL BS-95376GS

...
48
High Pressure Outlet Piston BS-95374

...
49
O-RING, 4.3 X 2.4 BS-95375GS

...
50
Pressure Adjust Spring BS-95384

...
51
ADPTR, PRSSR ADJ, HI BS-95364BGS

...
52
KNOB, PRSSR ADJ, RED BS-95381BGS

...
53
PLUG, 1/8" - 27 BS-96137GS

...
54

...
55
Pressure Relief Valve Body BS-95216

...
56
RING, BACKUP, 8.3 X 11 BS-95369GS

...
57
Unloader Piston BS-95368

...
58
O-RING, 7.6 X 1.8 BS-95370GS

...
59
SPPRT, SPRING BS-95363GS

...
60
O-RING, 26.6 ID X 2.6 BS-96069GS

...
61
RING, BACKUP, HYTRILE BS-95506GS

...
62
GAUGE, OIL LEVEL, SIGHT BS-95453GS

...
63
FTG, 3/8, MAGNET, PIPE PLUG BS-57163GS

...
64
SPPRT, O-RING, PSTN BS-95371GS

...
65
SPRING, INJ, CHEM BS-95380GS

...
66
WSHR, BELV, 16 X 2.7 BS-94738GS

...
67
M16-1.6 JAM Nut BS-93887

...
68
RING, LOCKING M18 X 1 BS-95366GS

...
69
PLATE, SPACER, ENG D.1.62 BS-95441GS

...
71
SHOE, Piston Pivot BS-94944GS

...
72
"C" Ring Retainer BS-94284

...
73

...
74

...
75

...
76
RING, BACKUP, 1.2 X 6.7 BS-93657GS

...
77
Unloader Assembly BS-95212B

...
78

...
79
C-RING, 40.8 ID X 2.16 DIA BS-97675GS

...
80
RETAINER, PUSH ON BS-95524GS

...
81
WSHR, THRUST BS-97570GS

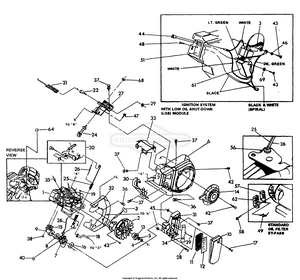

Repair Parts Drawing No. 98173

...
...
1
Engine, Straight Shaft BS-90995

...
2
Flywheel Assembly BS-77182E

...
3
Ignition Coil Assembly BS-81675

...
4
M16-1.5 Hex Nut BS-81810

...
5
Conical Washer BS-83312

...
6
Blower Housing BS-90695A

...
7
Carburetor Assembly BS-90876

...
8
Carb./Manifold Gasket BS-78631

...
9
HS Intake Manifold BS-90948

...
10
Air Cleaner Cover BS-78608A

...
11
FILTER,Air BS-78601GS

...
12
Air Filter Pre-Cleaner BS-78602

...
13
Recoil Cup BS-83015

...
14
Recoil Assembly BS-81671

...
15
Manifold/Head Gasket BS-90051

...
16
Carburetor Air Cleaner Gasket BS-91846

...
17
Bolt-Air Cleaner Cleaner BS-78609

...
18
BOLT, Carriage, Short Neck, 1/4-20 x 1-3/8 BS-7090947YP

...
19
4 x 19 Woodruff Key BS-82774

...
20
Governor Lever Assembly BS-86962

...
21
Governor Spring BS-78604

...
22
Governor Adjusting Screw BS-83502

...
24
Idle Control Coil BS-83782

...
25
Anti-Lash Extension Spring BS-86037

...
26
Governor Rod BS-86384

...
27
Gov, Adjust Bracket BS-83781

...
28
Carburetor Mtng. Bolt BS-78643

...
29
M5-0.8 Lock Nut BS-83503

...
30
Bottom Wrapper BS-89739

...
31
Air Cleaner Base BS-78607

...
32
Blower Housing Back Plate BS-78651C

...
33

...
34
Breather Canal Cover BS-80303

...
35
PLUG, SPARK (Champion) BS-84007216

...
36
M16-1.0 x 10mm Bolt BS-45756

...
37
SCREW, M6-1 x 12 w/Lock Washer With lock washer - 2 are required BS-66476GS

...
38
M6-1.0 x 30mm Capscrew with lock washer BS-80316

...
39
No. 8 x 3/8" Plastite Screw BS-59635

...
40
Choke Lever Knob BS-83504

...
42
M6-1.0 x 30mm Capscrew with lock washer BS-81668

...
43
M6-1.0 x 30mm Taptite Bolt BS-82981

...
44
SWITCH, Run - Stop BS-78653GS

...
45
NUT, M6 BS-49813GS


...
47
Screw, M8 1.25 x 15, Taptite BS-83512GS

...
48
Low Oil Indicator LED BS-86753

...
49
4 psi Oil Pressure Switch BS-77667

...
51
LOS Engine Decal BS-84195

...
56
Carburetor Wear Washer BS-85953

...
57
FITTING 3/8 NPT MALE BS-7091848YP

...
58
M6-1.O x 20mm Screw BS-92978

...
61
ASSY, MDLTR/HRNSS, LOS BS-87221AGS

...
62
By-pass Adaptor BS-88758

...
64
Expansion Plug BS-94820

...
68
JAM-M8-1.25 Hex Nut BS-66311

...
69
...
...
...
