Briggs & Stratton 9897-1 - 580.751651, 2,200 PSI Craftsman

Model: 9897-1 - 580.751651, 2,200 PSI

Save
 Part Not Listed?Part Not Listed?
product name

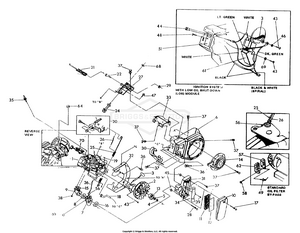

Engine Trim Parts (10/95)

...
...
1
Engine, Taper Shaft used with 70mm piston BS-90507
...
2
Flywheel Assembly used with 70mm piston BS-77182T
...
3
Ignition Coil Assembly BS-81675
...
4
M16-1.5 Hex Nut BS-81810
...
5
Conical Washer BS-83312
...
6
Blower Housing BS-90695A
...
7
Carburetor Assembly BS-95948
...
8
Carb./Manifold Gasket BS-78631
...
9
HS Intake Manifold BS-90948
...
10
Air Cleaner Cover BS-78608A
...
11
FILTER,Air BS-78601GS
...
12
Air Filter Precleaner BS-78602
...
13
Recoil Cup BS-83015
...
14
Recoil Assembly BS-81671
...
15
Manifold/Head Gasket BS-90051
...
16
Carburetor/Air Cleaner Gasket BS-91846
...
17
Bolt - Air Cleaner Cover BS-78609
...
18
BOLT, Carriage, Short Neck, 1/4-20 x 1-3/8 BS-7090947YP
...
19
4 x 19 Woodruff Key BS-82774
...
20
Governor Lever Ass BS-86962
...
21
Governor Spring BS-78604
...
22
Governor Adjusting Screw BS-83502
...
24
Idle Control Coil BS-83782
...
25
Anti-Lash Extension Spring BS-86037
...
26
Governor Rod BS-86384
...
27
Gov. Adjust Bracket BS-83781
...
28
Carburetor Mtng. Bolt BS-78643
...
29
M5-0.8 Lock Nut BS-83503
...
30
Bottom Wrapper BS-89739
...
31
Air Cleaner Base BS-78607
...
32
Blower Housing Back Plate BS-78651C
...
33
SCREW BS-691061
...
34
Breather Canal Cover BS-80303
...
35
PLUG, SPARK BS-84007216
...
36
M6-1.0 x 10mm Bolt BS-45756
...
37
SCREW, M6-1 x 12 w/Lock Washer 2 lock washers required BS-66476GS
...
38
M6-1.0 x 30mm Capscrew with lock washer BS-80316
...
39
No. 8 x 3/8" Plastite Screw BS-59635
...
40
Choke Lever Knob BS-83504
...
43
M6-1.0 x 30mm Taptite Bolt BS-82981
...
44
SWITCH, Run - Stop BS-78653GS
...
45
NUT, M6 BS-49813GS
...
46
CAP BS-5022097SM
...
47
Screw, M8 1.25 x 15, Taptite BS-83512GS
...
48
Low Oil Indicator LED BS-85272
...
49
4 psi Oil Pressure Switch BS-77667
...
51
LOS Engine Decal BS-84195
...
56
Carburetor Wear Washer BS-85953
...
57
FITTING 3/8 NPT MALE BS-7091848YP
...
58
M6-1.0 x 20mm Screw BS-92978
...
61
ASSY, MDLTR/HRNSS, LOS (Optional) BS-87221AGS
...
62
By-pass Adaptor (Optional) BS-88758
...
64
Expansion Plug BS-94820
...
68
JAM-M8-1.25 Hex Nut BS-66311
...
69
WASHER BS-49811GS
...
70
Fuel Tank Bracket BS-95213

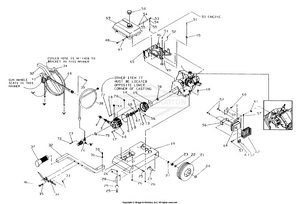

General Assembly (10/95)

...
...
1
6.5 HP Engine with 70mm piston BS-90507
...
2
3.0 Gpm Pump BS-95319C
...
3
Garden Hose Quick Connect BS-7175187GS
...
4
Garden Hose Quick Connect BS-7175187GS
...
5
SHOE, Piston Pivot BS-94944GS
...
6
O-RING, Crankcase BS-93790GS
...
7
ASSY, BRNG, RLLR, THRST, 81110 BS-96542GS
...
8
8mm Axial Cam BS-96865
...
9
ADPTR, ENG SHFT, TAPER BS-95165GS
...
10
M6 Ribbed Lock Washer BS-93873
...
11
Front Gun Bracket BS-95963
...
12
BRNG, THRST 51110 BS-93869GS
...
13
CAPSCREW, Socket Head BS-23707GS
...
14
ADPTR, ENG, MCHND BS-96430AGS
...
15
GSKT, ADPTR, ENG BS-93871GS
...
16
WASHER, Lock BS-92479GS
...
17
SCREW BS-40945GS
...
18
HHCS, M8 - 1.25 x 35 BS-39414GS
...
19
Mounting Base BS-96963
...
20
PUSHNUT BS-194062GS
...
21
ASSY., Wheel & Tire 10" BS-88521GS
...
22
WASHER, Flat BS-49808GS
...
23
NUT BS-5025391FS
...
24
AXLE, 12.7 X 106, ZNC PLT BS-93728AGS
...
25
HHCS, M8 x 20 BS-39253GS
...
26
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
27
GEARBOX BS-84009471
...
28
LEG, SPPRT, KIT, WHL, PW BS-92339GS
...
29
MOUNT, Rubber Donut BS-87841GS
...
30
MB-1.25 x 40mm Screw BS-57821
...
31
Washer, .34 x 1 x 10 BS-50190GS
...
32
ASSY, HNDL, GUIDE, SRS BS-91093GS
...
33
Vinyl Cap BS-92067
...
34
SPPRT, GUN/HOSE BS-95908GS
...
35
8mm x 20mm Flat Washer BS-96633
...
36
SCREW BS-313085GS
...
37
GRIP, HNDL BS-77584GS
...
38
ASSY, HOSE, CHEM INJ BS-96168GS
...
39
NZZL, HI-LO, 1.20, M22, MV BS-95587AGS
...
40
3/8" x 25 Ft Hose Assembly BS-91630
...
41
GUN, 2500PSI, 3/8, M22, MV BS-95567GS
...
44
GAUGE, 5000PSI PW, 1/8 IN (Optional) BS-94197GS
...
45
CLIP, SPRING, 0.37 X 0.62 BS-65852GS
...
46
Cradle BS-95214
...
47
BSHNG, TANK BS-96002GS
...
48
M6-1.O x 21mm Bolt BS-96001
...
49
Front Gun Bracket BS-95963
...
50
CAP, Fuel Tank BS-846987
...
51
TAPTITE, M4-0.7 X 8 BS-45764GS
...
52
NUT, FLANGE LOCK - M6 BS-77395GS
...
53
VALVE-FUEL SHUT OFF BS-698180
...
54
Hose Clamp BS-48031C
...
55
1/4" I.D. Fuel Hose BS-30340
...
56
BRCKT, MFFLR, GN160 BS-90300GS
...
57
M5 x 10mm Screw BS-90299
...
59
Muffler Support Bracket BS-92535
...
60
M8 x 20mm Screw BS-40976
...
61
GASKET, Exhaust BS-89476GS
...
62
Muffler Guard BS-89712
...
63
SCREEN, Spark Arrest BS-83083GS
...
64
KIT, MFFLR & BRCKT, SRV BS-195002GS
...
65
Screw, M8 1.25 x 15, Taptite BS-83512GS
...
67
M16 x 1.5 Jam Nut BS-93887
...
68
WSHR, BELV, 16 X 2.7 BS-94738GS
...
69
TANK, FUEL, 1 GAL, PLAIN BS-94994GS
...
70
Oil Cap/breather BS-95454
...
72
SCREW BS-40945GS
...
73
M6 Ribbed Lock Washer BS-93873
...
74
Unloader Assembly BS-96581E
...
75
SCREW BS-690904
...
76
NOZZLE, Replacement BS-92661GS
...
77
SCREW BS-51767GS
...
78
PLATE, SPACER, ENG D.1.62 BS-95441GS

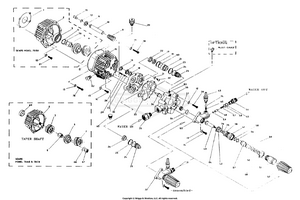

Pressure Pump (10/95)

...
...
1
GSKT, ADPTR, ENG BS-93871GS
...
2
ADPTR, ENG, MCHND BS-96430AGS
...
3
BRNG, THRST 51110 BS-93869GS
...
5
ADPTR, ENG SHFT, TAPER BS-95165GS
...
6
Axial Cam BS-96865
...
7
ASSY, BRNG, RLLR, THRST, 81110 BS-96542GS
...
8
O-RING, Crankcase BS-93790GS
...
9
RETAINER, SPRING, PSTN BS-95386GS
...
10
Piston, D15 S.S. BS-95217
...
11
SPRING, Piston Return BS-96400GS
...
12
WASHER, Lock BS-92479GS
...
13
M6 Ribbed Lock Washer BS-93873
...
14
SCREW BS-40945GS
...
15
SCREW BS-691664
...
16
SEAL, Oil Piston BS-93680GS
...
17
SPACER, PILOT BS-93668GS
...
18
SEAL, PSTN, U-CUP BS-93667GS
...
19
RING, Bearing BS-96015GS
...
20
Oil Filter Breather BS-95454
...
21
TOWER, HI-PRESS PORT BS-95895GS
...
22
SEAL, High Pressure BS-96053GS
...
23
RING, BACKUP, HYTRILE BS-95504GS
...
24
O-RING, 0.67 X 0.88 X 0.10 BS-95503GS
...
25
ASSY, VLV, CHK, PW BS-96005GS
...
26
Check Valve Seat Support BS-95896
...
27
CAPSCREW, Socket Head BS-23707GS
...
28
SPRING, Thermal By-Pass BS-93652GS
...
29
PISTON, Thermal By-Pass BS-95416GS
...
30
Spacer Plate BS-94402
...
31
O-RING, 4.5 X 8 X 1.8 BS-93673GS
...
32
PPHMS, M5-0.8 X 20 BS-93678GS
...
33
Head Gasket BS-93645
...
34
ACTUATOR, Thermal By-Pass BS-93644GS
...
35
Conn, Gdn Hse BS-95320GS
...
36
Cylinder Head BS-95138
...
37
ASSY, SEAT/O-RING BS-95382GS
...
38
TERMINAL, Ground BS-691084
...
39
SCREW BS-690346
...
40
ASSY, SPINDLE, UNLDR BS-95373GS
...
41
GUIDE, PSTN, UNLDR BS-95367GS
...
42
O-RING, 14 X 1.8 BS-95372GS
...
43
FTG, CHEM INJ BS-95378GS
...
44
ADPTR, OUT, PRSSR, HI BS-95377GS
...
45
O-RING, 13 X 16 X 1.8 BS-93788GS
...
46
O-RING, 16 X 19 X 1.8 BS-93787GS
...
47
SPRING, RETURN, SHUTL BS-95376GS
...
48
High Pressure Outlet Piston BS-95374
...
49
O-RING, 4.3 X 2.4 BS-95375GS
...
50
Pressure Adjust Spring BS-95384
...
51
ADPTR, PRSSR ADJ, HI BS-95364BGS
...
52
KNOB, PRSSR ADJ, RED BS-95381BGS
...
53
PLUG, 1/8" - 27 BS-96137GS
...
54
SCREW BS-690904
...
55
Pressure Relief Valve Body BS-95216
...
56
RING, BACKUP, 8.3 X 11 BS-95369GS
...
57
Unloader Piston BS-95368
...
58
O-RING, 7.6 X 1.8 BS-95370GS
...
59
SPPRT, SPRING BS-95363GS
...
60
O-RING, 26.6 ID X 2.6 BS-96069GS
...
61
RING, BACKUP, HYTRILE BS-95506GS
...
62
GAUGE, OIL LEVEL, SIGHT Contact Generac For Quantity Required. BS-95453GS
...
63
FTG, 3/8, MAGNET, PIPE PLUG BS-57163GS
...
64
SPPRT, O-RING, PSTN BS-95371GS
...
65
SPRING, INJ, CHEM BS-95380GS
...
66
WSHR, BELV, 16 X 2.7 BS-94738GS
...
67
M16-1.6 JAM Nut BS-93887
...
68
RING, LOCKING M18 X 1 BS-95366GS
...
69
PLATE, SPACER, ENG D.1.62 BS-95441GS
...
71
SHOE, Piston Pivot BS-94944GS
...
72
"C" Ring Retainer BS-94284
...
73
SCREW BS-690312
...
74
Ball BS-95379
...
75
STUD BS-691120
...
76
RING, BACKUP, 1.2 X 6.7 BS-93657GS
...
77
Unloader Assembly BS-95212B
...
78
SCREW BS-51767GS
...
...
...
