Briggs & Stratton 9569-2 - 3ZC12D, 4,000 Watt Dayton

Model: 9569-2 - 3ZC12D, 4,000 Watt Dayton

Save
 Part Not Listed?Part Not Listed?
product name

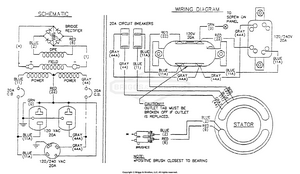

Electrical Data (10/95)

...

No Parts Available for this Schematic

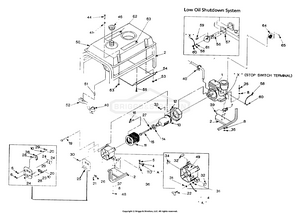

Generator Replacement Parts (10/95)

...
...
1
Briggs & Stratton engine BS-91009
...
2
PUSHNUT, CAP, 1/4 BS-704005
...
4
WIRE, Ground BS-195373GS
...
5
SCREW BS-313085GS
...
6
M4-0.7 x 10mm Screw BS-75475
...
7
MOUNT, Vibration 45°. BS-70642GS
...
8
WASHER, Lock BS-22129GS
...
10
WASHER BS-38150GS
...
11
Stator assembly BS-91838G
...
12
HOUSING, Engine Adapter BS-66365GGS
...
13
Rotor assembly BS-91836G
...
14
BEARING BS-65791GS
...
15
HHCS, 5/16-24 X 6 3/8 BS-36180GS
...
16
PIN, ROLL 4MM x 10 BS-81917GS
...
19
HHCS, M6 - 1.0 x 115 SEMS BS-86308GS
...
20
#8 Lockwasher BS-22264
...
21
M5-0.8 x 15mm Screw BS-66949
...
22
SCREW, M6-1.0 x 16 LG. WING BS-86494GS
...
23
OUTLET, 20A,120V BS-68759GS
...
24
20 amp Circuit breaker BS-87124B
...
25
Control panel sheet metal BS-94091
...
26
Brush holder assembly BS-91825
...
27
Flatwasher (special) BS-67451
...
28
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
29
NUT, M4-0.7 Hex BS-51715GS
...
30
TAPTITE, M5-0.8 x 10 LG. BS-74908GS
...
32
GROMMET, Plastic RBC BS-84242GS
...
33
HHMS, 5/16-24 x 3/4 LG. SEMS BS-86307GS
...
34
GROMMET, RUBBER BS-67022GS
...
35
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
36
WASHER, SHAKE PROOF INT.# 10 BS-22769GS
...
38
120/240 volt Twistlock outlet BS-68735
...
39
PPHMS, M8 - 1.25 x 40 BS-76222GS
...
40
1/4" Hose clamp BS-48031C
...
41
GROMMET, TANK BS-83465GS
...
44
HHMS, M6-1.0 x 60 (BLACK) BS-78831BGS
...
46
SCREW, HEX WASHER HEAD BS-94582
...
47
MOUNT, VIBRATION BS-82857GS
...
48
NUT, 5/16-18 HEX BS-25244GS
...
49
CARRIER, Rear Bearing BS-SRV66825DGS
...
50
Fuel tank BS-77374
...
51
Kit, Valve BS-192980GS
...
52
PULLEY CATCHER HZT/ BS-7078298YP
...
53
NUT, FLANGE LOCK - M6 BS-77395GS
...
54
Heat shield BS-78951
...
55
CRIMPTITE, 10-24 X 3/8 BS-56892GS
...
56
Low oil shutdown switch BS-88977
...
57
LOS gasket BS-91841
...
58
WIRE-A, 18AWG, BLK, 445MM BS-91842AGS
...
59
TAPTITE, #10-32 X 5/8 BS-32713GS
...
60
NUT, #8-32 BS-22471GS
...
61
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
62
DECAL, Danger BS-194799GS
...
63
DECAL, START INSTRUCTIONS BS-93826GS
...
64
SCREEN, ARRSTR, SPARK, B&S BS-77601GS
...
65
ARRSTR, DEFLT, BRNG, 8 HP (B & S #93705) BS-77836GS
...
...
...
