Briggs & Stratton 9114-1 - 675011, 1,400 Watt Craftsman

Model: 9114-1 - 675011, 1,400 Watt

Save
 Part Not Listed?Part Not Listed?
product name

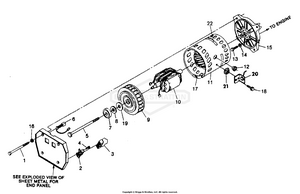

1400 Watt Generator Stator (10/95)

...
...
1
BOLT, STATOR BS-44395E
...
2
HOUSING, Receptacle BS-22694GS
...
3
RECTIFIER, BRIDGE BS-28293
...
4
SCR NO. 4 x 3/8" BS-59636
...
5
BOLT, ROTOR BS-58885A
...
6
BRUSH & LUG ASSY - RED BS-59606A
...
BRUSH & LUG ASSY - NEUTRAL BS-59606
...
7
BEARING, ROTOR BS-24049
...
8
FAN, LOADING WSHR BS-58886GS
...
9
FAN, GENERATOR BS-58868
...
10
ROTOR & FAN ASSEMBLY BS-61798
...
11
ANTI-SCALP KIT 48 D BS-7063128YP
...
12
BUSHING, SNAP - 0.87" DIA. BS-23484D
...
13
CAPSCR. HEX HD. - 5/16 - 24 x 3 BS-22336
...
14
WASHER, Lock BS-22129GS
...
15
HOUSING, ENGINE ADAPTOR BS-60220D
...
16
CAP BS-5022097SM
...
17
TRIM, RUBBER - 3.5" LONG BS-61876
...
18
SCR. (TAPTITE) - NO. 10-32 x 3/8" BS-24489
...
19
WSHR, BRNG SEAL, FELT BS-60221GS
...
20
WHEEL AXLE BS-5045992SM
...
21
WASHER, #10 Ext. Shakeproof BS-23762GS
...
MANUAL-OPERATOR BS-77550GS
...
22
TRANSFER TAPE BS-64684

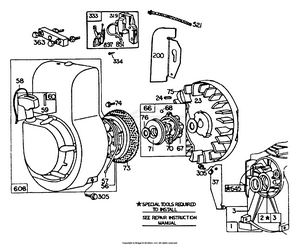

Briggs And Stratton 4-Cycle Engine III (10/95)

...
...
1
CYLINDER ASSEMBLY BS-395879
...
2
KIT, Bushing/Seal BS-796961
...
3
SEAL, Oil BS-299819S
...
23
Flywheel, Magneto BS-296884
...
24
KEY, Flywheel BS-222698S
...
37
Guard, Flywheel BS-220971
...
56
PULLEY, Rope Starter BS-280439S
...
57
SPRING-REWIND STR BS-490179
...
58
Rope, Starter (48-5/8" long) BS-66734
...
59
PIN, Starter Grip BS-230228S
...
60
GRIP-STARTER ROPE BS-393152
...
66
CLUTCH-STARTER BS-399671
...
67
Housing, Starter Clutch BS-394897
...
68
BALL, Clutch BS-691604
...
70
RATCHET-CLUTCH BS-691945
...
71
COVER, Ratchet BS-691359
...
73
SCREEN, Rotating BS-691725
...
74
SCREW BS-691660
...
75
WASHER BS-690582
...
76
COVER, Ratchet BS-691359
...
200
Guide, Air BS-221456
...
305
SCREW BS-692198
...
319
ARMATURE, Magneto BS-591420
...
333
ARMATURE, Magneto BS-591420
...
363
Puller, Flywheel (Optional Accessory) BS-19069
...
521
Shielding, Ignition Cable BS-297973
...
608
Starter Assembly, Rewind BS-294259
...
851
TERMINAL-SPARK PLUG BS-493880S
...
897
Trigger Coil BS-394970

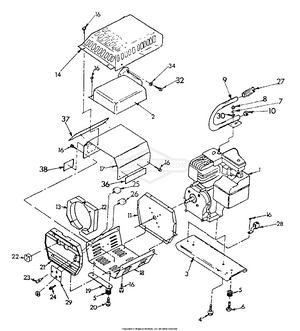

Sheet Metal Assembly (10/95)

...
...
1
ENGINE ASSEMBLY - BRIGGS & STRATTON MODEL - 80212-8702-01 BS-76928
...
2
MFFLR, 3 HP, B&S BS-75788GS
...
3
SUPPORT, ENGINE BS-75926
...
4
SCREW TAPTITE - 3/8-16 X 3/4" BS-59637
...
5
MOUNT, VIBRATION BS-70409
...
6
SCREW TAPTITE - 5/16-18 X 1/2" BS-24910
...
7
WASHER, Lock BS-22129GS
...
8
NUT, 5/16 - 18 BS-22259GS
...
9
(C) PULLEY W/ SET SC BS-7077085YP
...
10
END CAP BS-76203
...
11
ADAPTOR, SHEET METAL BS-60209A
...
12
BAFFLE, GENERATOR AIR - RH BS-58887A
...
13
BAFFLE, GENERATOR AIR - LH BS-58887B
...
14
COVER, HEAD BS-76729
...
16
CRIMPTITE, 10-24 X 3/8 BS-56892GS
...
17
WRAPPER, GENERATOR UPPER BS-58875D
...
18
WRAPPER, GENERATOR LOWER BS-58876A
...
19
SUPPORT, PANEL BS-66856
...
20
SCREW PLASTIC - 1/4 X 1" BS-59634
...
21
END PANEL BS-75918
...
22
RECEPTACLE, 120 VOLTS AC BS-58888
...
23
TERMINAL, BATTERY CHARGE - BLACK BS-25368
...
24
TERMINAL, BTTRY CHG, RED BS-25367GS
...
25
BRKR, CRCT, 10A BS-75207BGS
...
26
BRKR, CRCT, 12A BS-75207CGS
...
27
GRIP, Handle BS-75928GS
...
28
LUG, GROUNDING SEE "GROUNDING THE GENERATOR" BS-25433
...
29
DECAL - BATTERY CHARGE BS-75922A
...
31
CAPSCREW, SOCKET HEAD - 1/4-20 BS-36781
...
32
FLAT WASHER - SPECIAL BS-55635
...
CABLE, BATTERY CHARGE NOT SHOWN BS-A25383
...
(C) PULLEY BK 52-1 NOT SHOWN BS-7079556YP

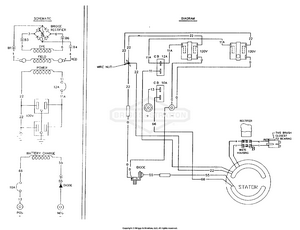

Wiring Diagram (10/95)

...

No Parts Available for this Schematic

...
...
...
