Briggs & Stratton 8916-0 - 5W260, 750 Watt Dayton

Model: 8916-0 - 5W260, 750 Watt Dayton

Save
 Part Not Listed?Part Not Listed?
product name

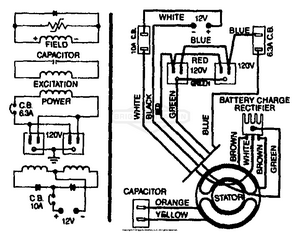

Electrical Schematic & Wiring Diagram - Model 5W260

...

No Parts Available for this Schematic

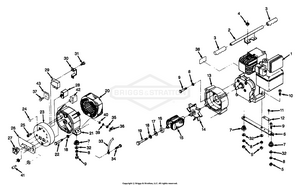

Replacement Parts For Model 5W260

...
...
2
Carrying handle BS-66899
...
3
Handle grip BS-66826
...
4
NUT, M6 BS-49813GS
...
5
Flanged lock nut, M8-1.25 lg. BS-66834
...
6
Engine support BS-67400
...
7
Vibration mount BS-67401
...
8
WASHER, Lock BS-22129GS
...
9
Hex head machine screw, M8-1.25 x 20mm BS-66889
...
10
HHCS, M8 - 1.25 x 35 BS-39414GS
...
11
Rivet (aluminum), 3mm BS-66829
...
12
Data plate BS-67402
...
13
ADPTR, ENG, 150 L BS-65775GS
...
14
Cooling fan BS-67403
...
15
Rotor winding assembly BS-67404
...
16
BEARING BS-65791GS
...
17
Flatwasher (special), M6 BS-65793
...
18
CAP BS-5022097SM
...
19
Rotor bolt, M6-1.00 x 140mm BS-65792A
...
20
Stator assembly BS-67406
...
21
Rear bearing carrier BS-66373
...
22
Stator bolt, M6-1.00 x 75mm BS-66449B
...
23
Control panel cup BS-70736
...
24
Decal, U.S.D.A. (Forestry) BS-66864
...
25
Phillips machine screw, M6-1.00 x 55mm BS-67408
...
26
Control panel decal BS-70737
...
27
OUTLET, 120 V AC, 15 A Duplex BS-66818GS
...
28
Circuit breaker, 6.3 AC amperes BS-66888
...
29
Excitation capacitor BS-66800
...
30
Capacitor bracket BS-67113
...
31
Screw M4-0.70 x 8mm BS-67114
...
32
(S) WELD BRACE MOUNT BS-7049810YP
...
33
Ground wire (green) BS-672305
...
34
HHCS, M5-0.8 X 16 BS-49815GS
...
35
NUT, M5 x 0.8 BS-51716GS
...
36
Wing nut, M5-0.8 BS-67435
...
37
TAPTITE, M6-0.8 x 16 LG. BS-66849GS
...
38
Data decal BS-67483A
...
39
WASHER, M5 BS-51713GS
...
40
Serrated washer, M5 BS-67444
...
41
Positive binding post (red). BS-70772
...
Negative binding post (blk) BS-70773
...
42
Circuit breaker, 10 amp BS-66820
...
43
RECTIFIER, BATTERY CHARGE BS-65795GS

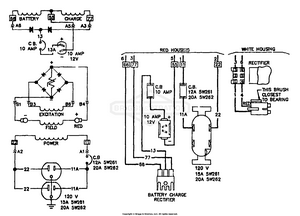

Wiring Diagram For Model 5W260

...

No Parts Available for this Schematic

...
...
...
