product name

Briggs & Stratton 8793-0 - 2,000 Watt Niagara

Model: 8793-0 - 2,000 Watt Niagara

Save
 Part Not Listed?Part Not Listed?
product name

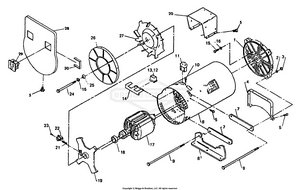

AC Generator No. 64887

...
...
1
HOUSING, Engine Adapter BS-60220D
...
2
CAP BS-5022097SM
...
3
NUT, Hex - 1/4"-20 BS-22127
...
4
(C) WELD PIVOT ARM BS-7043874YP
...
5
SCREW (Taptite) - No. 10-32 x 3/8" BS-24489
...
6
STATOR ASSEMBLY BS-65117
...
7
BAR, Stator Bolt BS-44338
...
8
SUPPORT, Rear Generator BS-44392A
...
9
BOLT, Stator BS-44395A
...
10
SCREW (Taptite) - No. 10-32 x 1/2" BS-24413
...
11
RECTIFIER, Bridge BS-28293
...
12
HOUSING, Receptacle BS-22694GS
...
13
HOUSING, Receptacle (Red) BS-43994
...
14
RETAINER, Receptacle Housing BS-46079
...
15
CAPSCREW, Hex Head - 5/16"-24 x 3/4" BS-22336
...
16
WASHER, Lock BS-22129GS
...
17
ROTOR ASSEMBLY BS-65118
...
18
BEARING, Rotor BS-24049
...
19
CARRIER, Bearing BS-44943
...
20
(C) WELD SHAFT BRAK BS-7043875YP
...
21
ASSY, BRUSH BS-A24044AGS
...
22
HLDR, BRUSH, UNIV BS-23877DGS
...
23
PRHMS, 6-32 x 1/4 SEMS BS-25105GS
...
24
SCREW BS-24421GS
...
25
Washer, .34 x 1 x 10 BS-50190GS
...
26
CVR, FAN, PLSTC BS-44357GS
...
27
FAN BS-44331
...
28
PANEL, Front (Silkscreened) BS-65120A
...
29
SWITCH, PTO, DPDT BS-7022693YP
...
30
RETAINER, 120 VAC Receptacle BS-27272

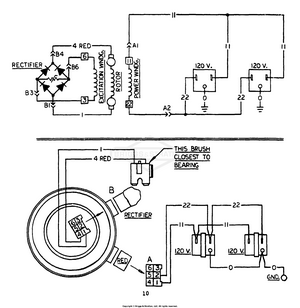

Electrical Schematic/Wiring Diagram No. 64885

...

No Parts Available for this Schematic

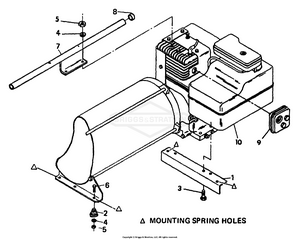

Mounting Base No. 64886

...
...
1
SUPPORT, Engine and Spring BS-24509
...
2
DEFLECTOR 26-30 BS-7025047YP
...
3
SCREW (Taptite) - 3/8"-16 x 3/4" BS-59637
...
4
WASHER, Lock BS-22129GS
...
5
NUT, 5/16 - 18 BS-22259GS
...
6
MODULE BS-84009650
...
7
COVER SAFETY # BS-7043960YP
...
8
CAP PLUG BS-27794
...
9
AIR LIFT KIT, EURO 21 BS-7061782YP
...
10
ENGINE - Briggs & Stratton 5 HP BS-63191
...
...
...
