Briggs & Stratton 1543-0 - 580.767200, 2,250 PSI Craftsman

Model: 1543-0 - 580.767200, 2,250 PSI

Save
 Part Not Listed?Part Not Listed?
product name

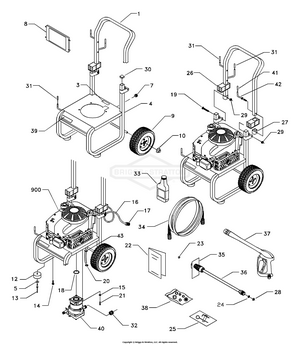

Main Unit

...
...
1
HANDLE, Polo Green Powder Coated BS-EB5653GS
...
3
DECAL, 1- 800 Number BS-96307GS
...
4
BASE, Polo Green Powder Coated BS-EB5654GS
...
5
WASHER, M8, Flat BS-71693GS
...
7
GROMMET BS-30809GS
...
8
DECALS/BILLBOARD, 1543-0 BS-188260GS
...
9
WHEEL BS-209636GS
...
10
PUSHNUT, 5/8" BS-75402CGS
...
12
VIBE MOUNT, with Washer BS-191413GS
...
13
RIVET, Blind BS-188194GS
...
14
TAPTITE BS-75246GS
...
15
WASHER, M8 Conical Ribbed BS-92479GS
...
16
HOSE-CHEMICAL BS-705076
...
17
FILTER-CHEM HOSE BS-709496
...
18
O-RING, 1.625" ID x .103" BS-B2218GS
...
19
CARRIAGE BOLT, 1/4" - 20 x 1-3/4" BS-31669GS
...
20
CLAMP, Hose 3/8" BS-48031GGS
...
21
SHCS, 5/16" - 24 x 1" BS-23707GS
...
22
MANUAL BS-187687GS
...
23
NOZZLE, Replacement BS-21761GS
...
24
SCREEN, Gun Inlet BS-B4224GS
...
25
KIT, Maintenance, O-Ring BS-191922GS
...
26
COVER, Hinge BS-B1779GS
...
27
CAP, End BS-B2347GS
...
28
O-RING, Hi Pressure Trns. BS-97837GS
...
29
NUT BS-194005GS
...
30
CAP, Plug BS-46476GS
...
31
CAP, Vinyl BS-B2516GS
...
32
CONNECTOR, Garden Hose BS-21424GS
...
33
OIL, Engine BS-AB3061BGS
...
34
HOSE, 1/4" x 30' BS-B5689GS
...
35
TAG, Nozzle Instructions BS-97566GS
...
36
WAND-ADJUSTABLE BS-205015CGS
...
37
GUN, High Pressure BS-B3263GS
...
38
KIT, Maintenance BS-B5830GS
...
39
DECAL, Quick Start BS-187813GS
...
40
REPLACEMENT PUMP ASSEMBLY BS-193461GS
...
41
CAP, Vinyl BS-B1460GS
...
42
HOOK, Chemical Bottle BS-B2759GS
...
43
CLAMP, Hose Band BS-48031BGS
...
900
ENGINE, Briggs, 5.5 H.P. BS-~NSP
...
--
Garden Hose Quick Connect Optional Accessories Not Illustrated BS-7175187GS
...
--
KIT,QC,METRIC Optional Accessories Not Illustrated BS-312981GS
...
--
Rotating Brush Kit Optional Accessories Not Illustrated BS-7175199GS
...
--
25' Replacement Hose Optional Accessories Not Illustrated BS-7175115
...
--
O Ring Repair Kit Optional Accessories Not Illustrated BS-7175116
...
--
Turbo Nozzle Optional Accessories Not Illustrated BS-7174400GS
...
--
HOSE, 4000PSI, 3/8" x 25' Optional Accessories Not Illustrated BS-7174401GS
...
--
KIT, Hose Reel Optional Accessories Not Illustrated BS-192648GS
...
--
Pump Saver Optional Accessories Not Illustrated BS-7174403
...
--
Project Pro(R) Perfectmix™ Multi-Purpose And Vehicle Cleaner Optional Accessories Not Illustrated BS-6159
...
--
CHEM-WASH DECK Optional Accessories Not Illustrated BS-100524GS
...
--
Project Pro® PerfectMix Concrete, Brick, And Tile Cleaner Optional Accessories Not Illustrated BS-6160
...
--
CHEM, WASH, DEGREASER, HD, 32 OZ Optional Accessories Not Illustrated BS-100526GS

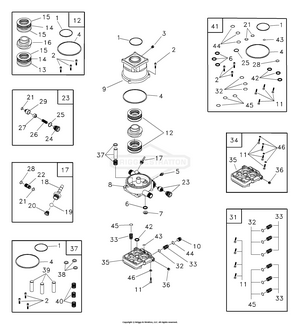

Pump

...
...
1
O-RING, 1.625 ID x .103 BS-B2218GS
...
2
SHCS, M6 - 1 x 25 BS-97962GS
...
3
VALVE, 1/8 npt 1-5 PSI BS-B5710GS
...
4
O-RING, Housing Seal BS-97835GS
...
5
VALVE, Thermal Relief BS-208673GS
...
6
SEAL, Oil Piston BS-93680GS
...
7
SPACER, Pilot BS-97831GS
...
8
HOUSING, Piston BS-B2702GS
...
9
ADAPTER, Engine BS-B4813GS
...
10
CAP, Outlet Check Valve BS-97841GS
...
11
SHCS, M6-1.0 x 35 BS-40946GS
...
12
KIT, AXIAL CAM Service kit includes all parts shown within the box. Certain parts may only be available as components of a kit. BS-185710GS
...
17
KIT, CHEM INJECT Service kit includes all parts shown within the box. Certain parts may only be available as components of a kit. BS-185287GS
...
23
KIT, UNLOADER Service kit includes all parts shown within the box. Certain parts may only be available as components of a kit. BS-187879GS
...
31
KIT, CHECK VALVES Service kit includes all parts shown within the box. Certain parts may only be available as components of a kit. BS-185712GS
...
34
KIT, HEAD BRASS EG Service kit includes all parts shown within the box. Certain parts may only be available as components of a kit. BS-185531GS
...
37
KIT, PISTON & SPRING Service kit includes all parts shown within the box. Certain parts may only be available as components of a kit. BS-185713GS
...
41
KIT, O-RING/SEAL 2300 Service kit includes all parts shown within the box. Certain parts may only be available as components of a kit. BS-185714GS
...
...
...
