Briggs & Stratton 1430-0 - 580.768310, 2,100 PSI Craftsman

Model: 1430-0 - 580.768310, 2,100 PSI

Save
 Part Not Listed?Part Not Listed?
product name

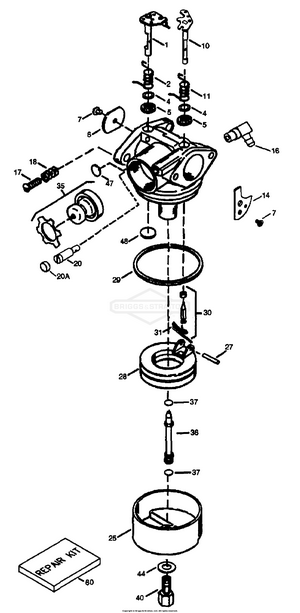

Carburetor

...
...
0
Carburetor BS-640276
...
1
Throttle Shaft & Lever Assembly BS-631615
...
2
Throttle Return Spring BS-631767
...
4
Dust Seal Washer BS-631184
...
5
Dust Seal BS-631183
...
6
Throttle Shutter BS-640070
...
7
Shutter Screw BS-650506
...
10
Choke Shaft & Lever Assembly BS-630973
...
11
Choke Return Spring BS-632045
...
14
Choke Shutter BS-632790
...
16
Fuel Fitting BS-631807
...
17
Throttle Crack Screw/Idle Speed Screw BS-651025
...
18
Tension Spring BS-630766
...
20
Idle Restrictor Screw BS-640027
...
20A
Idle Restrictor Screw Cap BS-640053
...
25
Float Bowl BS-631867
...
27
Float Shaft BS-631024
...
28
Float BS-632019
...
29
Float Bowl "O" Ring BS-631028
...
30
Inlet Needle, seat & Clip BS-631021
...
31
Spring Clip BS-631022
...
35
Primer Bulb/Retainer Ring BS-36045A
...
36
Main Nozzle Tube BS-632745
...
37
"O" Ring, Main Nozzle Tube BS-632547
...
40
High Speed Bowl Nut BS-640032
...
44
Bowl Nut Washer BS-27110A
...
47
Welch Plug, Idle Mixture Well BS-630748
...
48
Welch Plug, Atmospheric Vent BS-631027
...
60
Repair kit BS-632760

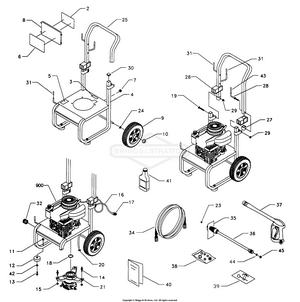

Main Unit

...
...
2
DECAL, INSTRCTN, START BS-B5833GS
...
3
DECAL, 1-800 Number BS-96307GS
...
4
BASE BS-EB5647GS
...
5
DECAL, Data BS-~NSP
...
6
DECAL, Unit BS-B5668
...
7
GROMMET BS-30809GS
...
8
BILLBOARD, Plastic BS-B1631BGS
...
9
TIRE BS-B2142GS
...
10
PUSHNUT BS-194062GS
...
11
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
12
VIBE MOUNT, with Washer BS-191413GS
...
13
HHCS, M8-1.25 X 55 BS-39288GS
...
14
STUD, Double Ended BS-B1735GS
...
15
NUT, with Washer BS-B1880GS
...
16
HOSE-CHEMICAL BS-705076
...
17
FILTER-CHEM HOSE BS-709496
...
18
SEAL, Engine Donut BS-98300GS
...
19
BOLT, Carriage BS-31669GS
...
20
CLAMP, Hose 13/32" BS-48031GGS
...
21
REPLACEMENT PUMP ASSEMBLY BS-209940GS
...
23
NOZZLE, Replacement BS-94804GS
...
24
WASHER, Flat BS-49808GS
...
25
HANDLE BS-EB5653GS
...
26
COVER, Hinge BS-B1779GS
...
27
END CAP, Tube BS-B2347GS
...
28
HOOK, Square Neck Gun BS-B2759GS
...
29
NUT BS-194005GS
...
30
CAP PLUG, Tubing BS-46476GS
...
31
CAP, Vinyl, Black BS-B2516GS
...
32
TRANSAXLE BS-84010384
...
34
HOSE ASSEMBLY BS-84006753
...
35
TAG, Nozzle Instructions BS-97566GS
...
36
WAND, Adjustable Nozzle BS-188792AGS
...
37
GUN BS-704312
...
38
KIT, Maintenance, O-Ring BS-191922GS
...
39
KIT, Nozzle, Cleaning BS-B3708
...
40
MANUAL-OPERATOR BS-B5656GS
...
41
BOTTLE, Oil BS-100005
...
42
Washer, .34 x 1 x 10 BS-50190GS
...
43
CAP, Vinyl Black BS-B1460GS
...
44
SCREEN, Gun Inlet BS-B4224GS
...
45
O-RING, Hi Pressure BS-97837GS
...
900
ENGINE (See "Engine", "Recoil" and "Carburetor" illustrations and parts lists.) BS-~NSP

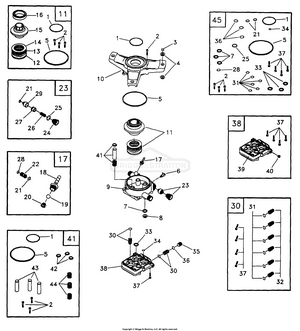

Pump

...
...
1
SEAL, Engine Donut BS-98300GS
...
2
CAPSCREW, Socket Head BS-97962GS
...
3
SLEEVE, Grommet Spacer BS-96795GS
...
4
BUSHING, Rubber Mount BS-21429GS
...
5
O-RING, Housing Seal BS-97835GS
...
6
VALVE, Thermal Relief BS-208673GS
...
7
SEAL, Oil Piston BS-93680GS
...
8
SPACER, Pilot BS-97831GS
...
9
HOUSING, Piston BS-B2702GS
...
10
ADAPTER, Engine BS-98227GS
...
11
KIT, AXIAL CAM SERV Service kit includes all parts shown within the box. Items previously described are not listed under the service kit number. Certain items are available only as a part of a kit. BS-B2310GS
...
17
KIT, CHEM INJECT Service kit includes all parts shown within the box. Items previously described are not listed under the service kit number. Certain items are available only as a part of a kit. BS-185287GS
...
23
KIT, UNLOADER Service kit includes all parts shown within the box. Items previously described are not listed under the service kit number. Certain items are available only as a part of a kit. BS-185711
...
30
KIT, CHECK VALVES Service kit includes all parts shown within the box. Items previously described are not listed under the service kit number. Certain items are available only as a part of a kit. BS-B3513GS
...
33
SEAL, Oil Piston BS-B3286GS
...
34
O-RING, Hi Pressure BS-97837GS
...
35
CAP, Outlet Port BS-97841GS
...
36
O-RING, Cap BS-97840GS
...
37
Nylon Roller BS-5040946
...
38
KIT, HEAD CASTING SFG Service kit includes all parts shown within the box. Items previously described are not listed under the service kit number. Certain items are available only as a part of a kit. BS-B4186GS
...
41
KIT, PISTON & SPRING Service kit includes all parts shown within the box. Items previously described are not listed under the service kit number. Certain items are available only as a part of a kit. BS-B2312GS
...
45
KIT, O-RING/SEAL SERV Service kit includes all parts shown within the box. Items previously described are not listed under the service kit number. Certain items are available only as a part of a kit. BS-B1933
...
...
...
