Briggs & Stratton 1312-0 - SVP5000T, 5,000 Watt Lowes

Model: 1312-0 - SVP5000T, 5,000 Watt Lowes

Save
 Part Not Listed?Part Not Listed?
product name

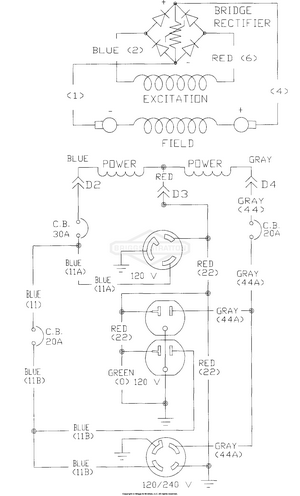

Electrical Schematic

...

No Parts Available for this Schematic

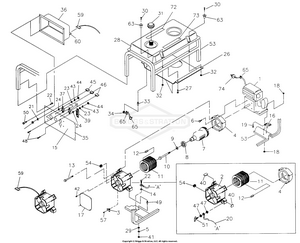

Generator

...
...
2
CARRIER, Rear Bearing BS-66825B
...
3
ASSEMBLY, Brush & Bridge Rectifier BS-91825
...
4
ADPTR, HSNG, 8 HP BS-66365DGS
...
5
WASHER, Lock BS-22129GS
...
6
HHMS, 5/16-24 x 3/4 LG. SEMS BS-86307GS
...
7
ASSY, RTR, 5000, 105MM DPE BS-74716JGS
...
8
BEARING BS-65791GS
...
9
WASHER, M8 Flat BS-96796GS
...
10
CAPSCREW, Hex Head BS-75431GS
...
11
ASSEMBLY, Stator BS-B91859J
...
12
PIN, ROLL 4MM x 10 BS-81917GS
...
13
BOLT, Stator BS-86308CGS
...
14
WASHER, SHAKE PROOF INT.# 10 BS-22769GS
...
15
DECAL, PNL, CNTRL, 5000 BS-B4349GS
...
16
MOUNT, Vibration 45°. BS-70642GS
...
17
COVER, Bearing Carrier BS-B67025
...
18
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
19
PPHMS, M8 - 1.25 x 40 BS-76222GS
...
20
WIRE, Ground BS-195373GS
...
21
WASHER, 7/16" Int Lock BS-82881GS
...
22
SCREW BS-313085GS
...
23
WASHER BS-38150GS
...
24
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
26
HTSHLD, PLSTC TANK BS-B78951BGS
...
27
CRIMPTITE, 10-24 X 3/8 BS-56892GS
...
28
TANK, Gas Plastic 5 Gal. BS-77374
...
30
HHMS, M6-1.0 x 60 (BLACK) BS-78831BGS
...
31
CAP, Fuel Tank BS-846987
...
32
NUT, FLANGE LOCK - M6 BS-77395GS
...
33
Kit, Valve BS-192980GS
...
34
Kit, Valve BS-192980GS
...
35
PANEL, Control BS-81897
...
36
PANEL, Control, Back, Plastic BS-81919GS
...
37
OUTLET-120V TL30A BS-705932
...
38
OUTLET, 120/240V Locking, 20A BS-68867GS
...
39
OUTLET, 20A,120V BS-68759GS
...
40
GROMMET, Plastic RBC BS-84242GS
...
41
SKID PLATE BS-5045771B
...
42
TAPTITE, M5-0.8 x 10 LG. BS-74908GS
...
43
WASHER, #8 Lock BS-22264
...
44
NUT, M4-0.7 Hex BS-51715GS
...
45
BREAKER-CIRCUIT 30A BS-706178
...
46
BREAKER-CIRCUIT 20A BS-209872GS
...
48
SCREW, M4 - 0.7 x 10 Pan Head BS-75475
...
49
MOUNT-VIBRATION BS-194153GS
...
50
SCREW, Self Tapping, STC 3 x 18 BS-82308GS
...
51
SCREW, M6-1.0 x 16 LG. WING BS-86494GS
...
53
CRADLE BS-BB1635
...
54
GROMMET, RUBBER BS-67022GS
...
57
TAPTITE, M6-0.8 x 16 LG. BS-66849GS
...
59
FASTEN, On Tab Housing 6P BS-22695GS
...
60
HOUSING, Receptacle BS-22694GS
...
63
GROMMET, TANK BS-83465GS
...
65
CLAMP, Hose - 1/4" BS-48031C
...
72
DECAL, Danger BS-194799GS
...
73
DECAL, START INSTRUCTIONS BS-93826GS
...
74
FILTER, FUEL, 150 MICRN BS-68740GS
...
PLUG, 125V 30A 3-Prong (Optional Accessories Not BS-100523GS
...
PLUG-120/240V TL20A (Optional Accessories Not BS-100522GS
...
ASSY,Wrap, Cord (Optional Accessories Not BS-84883GS

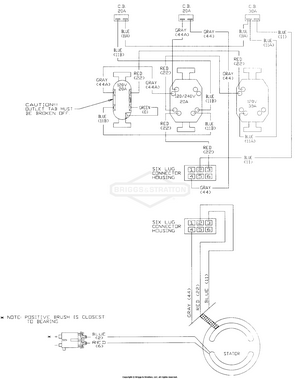

Wiring Diagram

...
