Briggs & Stratton 0763-1 - 580.761751, 1,750 PSI Craftsman

Model: 0763-1 - 580.761751, 1,750 PSI

Save
 Part Not Listed?Part Not Listed?
product name

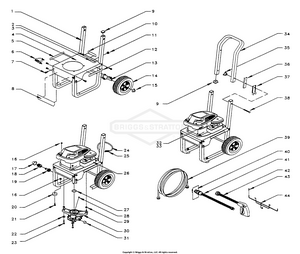

Motor And Carriage Assembly

...
...
1
VS PW LEG BS-21416
...
2
DECAL, INSTRCTN, ENG PRIMER BS-20089GS
...
3
DECAL, 1-800 Number BS-96307GS
...
4
WHEEL & TIRE ASSEMBLY, 18 x 7.50 x 8 BS-5021207
...
5
5/8" Bearing BS-5021449
...
6
CUP, GUN HLDR BS-97769GS
...
7
COLLAR, 5/8" SPLIT BS-5020441SM
...
8
PULLEY, Idler BS-5021225FS
...
9
CAP, Plug BS-81895GS
...
10
DECAL, CAUTION BS-20042GS
...
11
GROMMET BS-30809GS
...
12
Bearing Flange BS-5021450
...
13
WLDMNT, AXLE, VSPW BS-97741GS
...
14
TIRE, Black Mag BS-21206GS
...
15
PUSHNUT BS-194062GS
...
16
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
17
CAP, GRDN HOSE, CNNCTR BS-A1408GS
...
18
QUICK-CONNECT [FEMALE] BS-21782
...
19
QUICK-CONNECT [MALE] BS-21781
...
20
MOUNT, Rubber Donut BS-87841GS
...
21
HHCS, M8 - 1.25 x 35 BS-39414GS
...
22
WASHER, M8 Flat BS-96796GS
...
23
HHCS, M8-1.25 X 55 BS-39288GS
...
24
HOSE-CHEMICAL BS-705076
...
25
FILTER-CHEM HOSE BS-709496
...
26
* ENGINE, 4HP Briggs & Stratton BS-10A902-0233-01
...
27
SEAL, Engine Donut BS-98300GS
...
28
PLUG, 1/8" - 27 BS-96137GS
...
29
BUSHING BS-5020874FS
...
30
REPLACEMENT PUMP ASSEMBLY BS-209940GS
...
31
CAP, ADPTR, HP BS-97100GS
...
32
SEARS DATA DECAL BS-91373
...
33
OVERLAMINATE BS-79552
...
34
MOWER BLADE, 18" (High Lift) BS-5021268
...
35
KNOB, Handle BS-97178GS
...
36
PLATE, WEAR, SS BS-99368GS
...
37
CLIP, VSPW, MNTNG, HNDL BS-97082GS
...
38
BOLT, CRRG, 1/4-20 X 2.25 BS-97912GS
...
39
1/4" x 30' HOSE BS-21779
...
40
TAG, Nozzle Instructions BS-97566GS
...
41
WAND, Adjustable Nozzle BS-188792AGS
...
42
HIGH PRESSURE GUN BS-98316
...
43
BUSHING BS-5021702
...
44
STUD (DRIVE HUB) BS-5021208
...
--
MANUAL-OPERATOR PARTS NOT ILLUSTRATED BS-B1266GS
...
--
Rotating Brush Kit OPTIONAL ACCESSORIES, NOT SHOWN BS-7175199GS
...
--
BRUSH, UTILITY OPTIONAL ACCESSORIES, NOT SHOWN BS-7175189GS
...
--
KIT, BRUSH, FLOOR/SIDING OPTIONAL ACCESSORIES, NOT SHOWN BS-7175190GS
...
--
1750 PSI TURBO NOZZLE OPTIONAL ACCESSORIES, NOT SHOWN BS-7176485
...
--
Garden Hose Quick Connect OPTIONAL ACCESSORIES, NOT SHOWN BS-7175187GS
...
--
MULTIPURPOSE CLEANER OPTIONAL ACCESSORIES, NOT SHOWN BS-7175100
...
--
CHEM-WASH DECK OPTIONAL ACCESSORIES, NOT SHOWN BS-100524GS
...
--
VEHICLE WASH OPTIONAL ACCESSORIES, NOT SHOWN BS-7175102
...
--
DEGREASER OPTIONAL ACCESSORIES, NOT SHOWN BS-7175103
...
--
SPRAY WAX OPTIONAL ACCESSORIES, NOT SHOWN BS-7175104
...
--
KIT, ACC, BRCKT, SRV OPTIONAL ACCESSORIES, NOT SHOWN BS-7175183GS
...
--
WAND, ANGLED OPTIONAL ACCESSORIES, NOT SHOWN BS-7175196GS

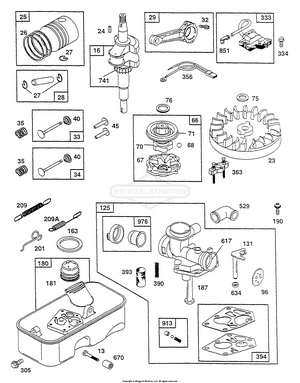

Motor Part 1

...
...
13
VALVE-FUEL SHUT OFF(M BS-592840
...
16
CRANKSHAFT BS-496839
...
23
FLYWHEEL BS-795695
...
24
KEY, Flywheel BS-222698S
...
25
PISTON ASSEMBLY BS-795691
...
Piston Assembly (.010" O.S.) BS-498669
...
Piston Assembly (.020" O.S.) BS-498669
...
Piston Assembly (.030" O.S.) BS-498671
...
26
SET, Ring BS-699658
...
Ring Set (.010" O.S.) BS-498673
...
Ring Set (.020" O.S.) BS-498682
...
Ring Set (.030" O.S.) BS-498683
...
27
LOCK, Piston Pin BS-691588
...
28
PIN. Piston BS-298909
...
Piston Pin (.005" O.S.) BS-298908
...
29
ROD-CONNECTING BS-699654
...
32
SCREW BS-691664
...
33
Exhaust Valve BS-296676
...
34
Intake Valve BS-296677
...
35
SPRING-VALVE BS-690520
...
40
RETAINER, Valve BS-692194
...
45
TAPPET, Valve BS-691762
...
66
CLUTCH-STARTER BS-399671
...
67
Clutch Housing BS-394897
...
68
BALL, Clutch BS-691604
...
70
RATCHET-CLUTCH BS-691945
...
71
COVER, Ratchet BS-691359
...
75
Washer BS-223407
...
76
COVER, Ratchet BS-691359
...
96
VALVE, Throttle BS-691190
...
125
CARBURETOR BS-795477
...
131
SHAFT, Throttle BS-691931
...
163
GASKET, Air Cleaner BS-271139S
...
180
Fuel Tank BS-494406
...
181
CAP, Fuel Tank BS-497929S
...
187
TUBE-PICK UP BS-496046S
...
190
SCREW BS-692200
...
201
LINK, Air Vane BS-690347
...
209
SPRING, Governed Idle BS-691859
...
209A
SPRING, Governor BS-690250
...
305
SCREW BS-692198
...
333
ARMATURE, Magneto BS-591420
...
334
SCREW BS-691061
...
356
WIRE, Stop BS-398808
...
363
Flywheel Puller BS-19069
...
390
SPRING-CHOKE DIAPH BS-691839
...
393
SCREEN, Carburetor BS-691837
...
394
DIAPHRAGM, Carburetor BS-795083
...
529
GROMMET BS-692189
...
617
Intake Manifold Seal BS-4270334
...
634
SEAL-CHOKE/THR SHAFT BS-691321
...
670
SPACER, Fuel Tank BS-691633
...
741
GEAR, Timing BS-691805
...
851
TERMINAL-SPARK PLUG BS-493880S
...
913
Check Valve Seat BS-494409
...
976
PRIMER-CARBURETOR BS-694394

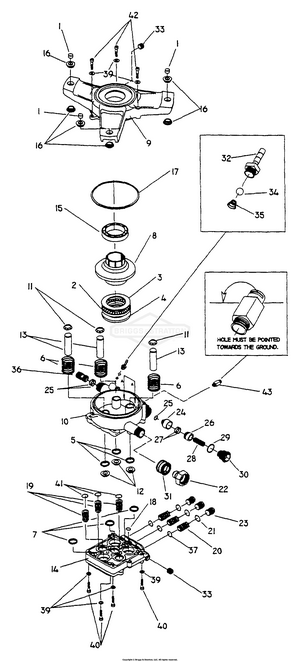

Pump Assembly

...
...
1
SLEEVE, Grommet Spacer BS-96795GS
...
2
ASSY, CAGE, BRNG, 45 X 65 BS-21640GS
...
3
WSHR, BRNG, 45X65X1 BS-21641GS
...
4
WASHER, BRG. DIA. 36 x 65 x 6T [SPECIAL] BS-21642
...
5
SEAL, Oil Piston BS-93680GS
...
6
SPRING, RTRN, PSTN, 2300 BS-97828GS
...
7
SEAL, PSTN, U-CUP BS-93667GS
...
8
CAM, SML, 7/8, 5.6, CAST, 2000 BS-98304GS
...
9
ADAPTER, Engine BS-98227GS
...
10
HSNG, PSTN, PW, MACH BS-20110GS
...
11
RETAINER, PSTN SPRING BS-97830GS
...
12
SPACER, Pilot BS-97831GS
...
13
PSTN, 15 DIA X 65 LG BS-97832GS
...
14
HEAD, CYL, GAS PUMP BS-A1111BGS
...
15
BRNG, BALL, 35X72X17 BS-57018GS
...
16
BUSHING, Rubber Mount BS-21429GS
...
17
O-RING, Housing Seal BS-97835GS
...
18
O-RING, Hi Pressure BS-97837GS
...
19
ASS'Y, CHECK VALVE - INLET BS-97838
...
20
ASSY, VLV, CHK, OUTLET BS-97839GS
...
21
O-RING, Cap BS-97840GS
...
22
QUICK CONNECT, BRASS, MALE, PUMP BS-21781
...
23
CAP, Outlet Port BS-97841GS
...
24
SEAT, UNLOADER BS-97842
...
25
O-RING, 0.364 ID X 0.070, 70 D BS-97843GS
...
26
PISTON, UNLOADER BS-B1253
...
27
SEAL, PARBAK UNLDR BS-97845GS
...
28
SPRING, UNLOADER BS-B2731
...
29
O-RING, UNLDR CAP BS-97847GS
...
30
CAP, UNLDR, PLASTIC BS-A2730GS
...
31
QUICK CONNECT, BRASS, FEMALE/HOSE BS-21782
...
32
FTG, EE/EG CHEM INJ BS-A1575GS
...
33
PLUG, 1/8" - 27 BS-96137GS
...
34
BALL, DIA. 5.5 CHEMICAL INJECTOR BS-95379
...
35
SPRING, INJ, CHEM BS-95380GS
...
36
VENTURI, CHEMICAL INJECTOR BS-20631
...
37
O-RING, VLV, CHCK BS-97934GS
...
39
LOCK WASHER, M6 RIBBED BS-93873
...
40
Nylon Roller BS-5040946
...
41
O-RING, PISTN HOUSNG BS-97851GS
...
42
CAPSCREW, Socket Head BS-97962GS
...
43
VALVE, Thermal Relief BS-208673GS
...
...
...
