Briggs & Stratton 0583-0 - 580.751410, 1,200 PSI Craftsman

Model: 0583-0 - 580.751410, 1,200 PSI

Save
 Part Not Listed?Part Not Listed?

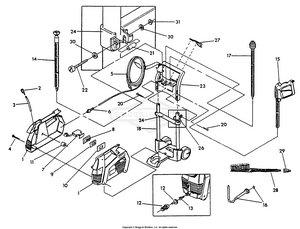

product name

Housing

...
...
1
SHROUD 2-PC KARCH EL BS-94293GS
...
2
FILTER, KARCHER EPW BS-94294GS
...
3
HOSE BS-94295
...
4
SCREW, CVR, EPW, KARCHER BS-96150GS
...
5
RETAINER, E Ring BS-690328
...
6
SCREW BS-690329
...
7
NUT BS-690330
...
8
BRCKT, EPW, SW-KARCHER BS-96151GS
...
9
PROTECTING CAP BS-94299
...
10
BASE, EPW, SW-KARCHER BS-96152GS
...
11
RUBBER BUFFER BS-96153
...
12
Garden Hose Quick Connect BS-7175187GS
...
14
WAND EXTENSION BS-95802B
...
15
GUN, 1740PSI, M22, BAY, ARL BS-97809GS
...
16
HIGH PRESSURE HOSE BS-97810
...
17
TURBO NOZZLE BS-98058
...
18
WHEEL KIT BASE BS-10020055
...
19
HANDLE EXTENSION BS-10120055
...
20
PHILLIPS HEAD SCREW BS-10520055
...
21
SPACER BS-10720055
...
22
FLAT HEAD SCREW BS-10620055
...
23
GUIDE HANDLE BS-10220055
...
24
CROSS-BRACKET BS-10320055
...
25
VIBRATION MOUNT BS-10420055
...
26
DETERGENT HOLDER BS-99919
...
27
BRUSH HOLDER BS-99742
...
28
BRUSH, Utility BS-88185GS
...
29
ADPTR, ARROW-GF ROT BS-95577GS
...
30
WASHER BS-80857
...
31
NUT, M5 x 0.8 BS-51716GS

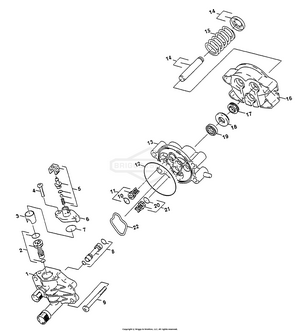

Pressure Washer

...
...
1
HOUSING BS-96160
...
4
SELF-TAPPING SCREW BS-96161
...
5
KIT, PARTS, SPARE, KARCHER BS-96162GS
...
6
PUMP COVER BS-96163
...
8
NZZL, INJCT KARCHER BS-94304GS
...
9
OVAL HEAD SCREW BS-96164
...
10
10 x 2.5mm 0-RING BS-94302
...
13
HEAD, CYL, KARCHER BS-96165GS
...
14
PISTON BS-94303
...
15
SCREW BS-692125
...
16
HOUSING BS-96166
...
17
RING, GROOVED, KARCHER BS-94306GS

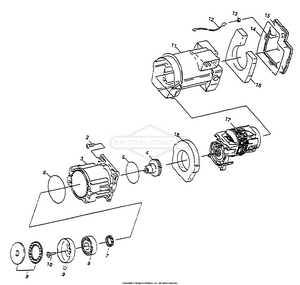

Pump

...
...
2
SCREW, MOTOR-KARCHER BS-96154GS
...
3
MOTOR HOUSING BS-96155
...
4
GEAR, WHL, KARCH EPW BS-94313GS
...
5
LOCKNUT BS-691105
...
6
WASHER BS-691075
...
7
ROTARY SHAFT SEAL BS-96156
...
8
BEARING BS-94316
...
9
PLATE, SWASH, EPW, KARCHER BS-94317GS
...
10
SCREW, BRNG, EPW, KRCHR BS-96157GS
...
11
MOTOR HOUSING BS-96158
...
12
CABLE BS-94307
...
13
SEAL BS-94308
...
14
CELLULAR RUBBER CORD BS-94309
...
15
HOUSING COVER BS-96159
...
16
INSULATING MAT BS-94310
...
17
MOTOR, EPW, KARCH BS-94312GS
...
18
INSULATING MAT BS-94311
...
19
MANUAL-OPERATOR BS-96011GS
...
...
...
