product name

Briggs & Stratton 030438-0 - 3,750 Watt Husky

Model: 030438-0 - 3,750 Watt Husky

Save
 Part Not Listed?Part Not Listed?
product name

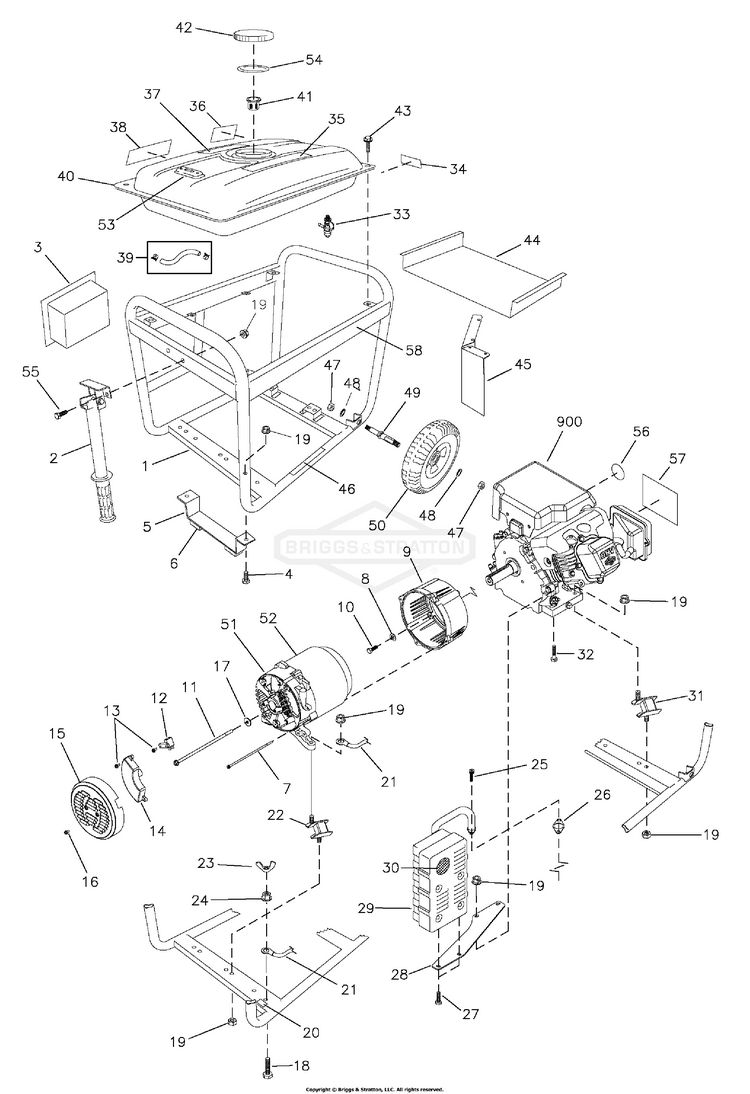

Main Unit

...
...
1
CRADLE (Includes Ref. Nos. 20 & 46) BS-209409GS
...
2
HANDLE BS-209438GS
...
3
PANEL, Control BS-209403GS
...
4
SCREW BS-39253GS
...
5
SUPPORT, Leg BS-209439GS
...
6
MOUNT, Vibration BS-209414GS
...
7
BOLT BS-209427GS
...
9
ADAPTER, Engine BS-209408GS
...
10
BOLT BS-209412GS
...
11
BOLT BS-209418GS
...
12
BRUSH BS-209441GS
...
13
BOLT BS-207825GS
...
14
AVR BS-209420GS
...
15
COVER BS-209428GS
...
16
BOLT BS-207824GS
...
17
WASHER BS-207826GS
...
19
NUT, Flange Serrated, M8 BS-67989GS
...
20
DECAL, Ground BS-B4986GS
...
21
WIRE BS-209424GS
...
22
MOUNT, Vibration BS-209426GS
...
23
NUT, Wing, M6-1 BS-87680GS
...
26
GASKET-EXHAUST BS-692237
...
28
BRACKET, Muffler BS-191785GS
...
29
MUFFLER BS-188301GS
...
30
SCREEN, Spark Arrest BS-83083GS
...
31
MOUNT-VIBRATION BS-706149
...
33
VALVE, Fuel BS-209417GS
...
34
DECAL BS-197797GS
...
35
DECAL BS-194799GS
...
36
DECAL, Warning, CO BS-202997GS
...
37
DECAL BS-188333GS
...
38
DECAL BS-189235GS
...
39
LINE, Fuel (Cut to Fit) BS-791745
...
40
TANK, Fuel (Includes Ref. Nos. 34, 35, 36, 37 & 38) BS-209411GS
...
41
SCREEN BS-209440GS
...
42
CAP, Fuel BS-209404GS
...
43
BOLT BS-209421GS
...
44
HEAT SHIELD BS-209422GS
...
45
BAFFLE BS-209415GS
...
46
DECAL BS-208633GS
...
47
NUT BS-209413GS
...
48
WASHER BS-209419GS
...
49
AXLE BS-209407GS
...
50
WHEEL BS-209410GS
...
51
CARRIER, Bearing BS-209423GS
...
52
ALTERNATOR BS-209406GS
...
53
GAUGE, Fuel BS-208124GS
...
54
GASKET, Fuel Cap BS-209939GS
...
55
SCREW BS-39414GS
...
56
DECAL, Recoil BS-200658GS
...
57
DECAL BS-208606GS
...
58
DECAL BS-208607GS
...
--
MANUAL, Operator's BS-208552GS
...
--
BOTTLE, Oil BS-100005
...
...
...
