Briggs & Stratton 030379-0 - 4,300 Watt Milwaukee

Model: 030379-0 - 4,300 Watt Milwaukee

Save
 Part Not Listed?Part Not Listed?
product name

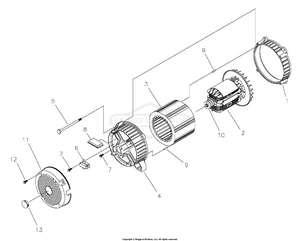

Alternator

...
...
1
ADAPTER, Alternator BS-209599GS
...
2
ASSEMBLY, Rotor (Includes Ref. No. 10) BS-193034GS
...
3
STATOR BS-206174GS
...
4
RBC, (with O-Ring p/n 189197GS) (Includes O-Ring 189197GS) BS-193336GS
...
5
CAPSCREW, Hex Head, M6 x 1 x 115 SEMS BS-86308GS
...
6
ASSEMBLY, Brush Holder BS-66386GS
...
7
SCREW, Taptite, M5-.8X16 BS-66849GS
...
8
BOARD, Circuit, System Control BS-205858GS
...
9
PIN, Roll, 4mm x 10 BS-81917GS
...
10
BEARING BS-65791GS
...
11
COVER, RBC, Plastic w/Cap BS-195422GS
...
12
CAP BS-191190GS
...
13
SCREW, Taptite, M5-.8x10 BS-74908GS

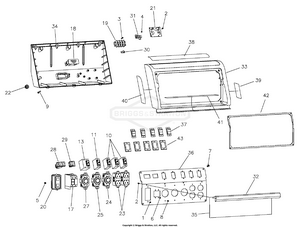

Control Panel

...
...
10
BREAKER, 20A BS-206473GS
...
11
BREAKER, 30A BS-206469GS
...
13
BREAKER, 20A, 2 Pole BS-206507GS
...
17
CIRCUIT BREAKER, 20A BS-206509GS
...
18
CONNECTOR BS-201678GS
...
19
TERMINAL BLOCK BS-193427GS
...
20
MODULE, GFCI sensing BS-206506GS
...
21
BOARD, Idle Control BS-193362GS
...
22
GROMMET BS-38057GS
...
23
OUTLET, 120V, 20Amp, Duplex BS-68759GS
...
24
OUTLET, 120V, 20A BS-74190GS
...
25
OUTLET-120V TL30A BS-705932
...
27
OUTLET, 120/240, 20A BS-68867GS
...
28
SWITCH, On/Off BS-206463GS
...
29
SWITCH, ROCKER, Auto Idle BS-206462GS
...
30
JUMPER, Terminal Block BS-193095GS
...
31
TRANSFORMER, Idle Control BS-84028GS
...
32
CURTAIN ROD BS-206461GS
...
33
PANEL, Control , Front (Includes Ref. Nos. 39, 40 & 41) BS-206505GS
...
34
PANEL, Control, back BS-206460GS
...
35
CURTAIN BS-206465GS
...
36
PANEL, Control BS-206471GS
...
37
SEAL, Rubber, Breaker BS-206464GS
...
38
DECAL, Logo BS-206207GS
...
39
DECAL, Warning, Exhaust BS-205974GS
...
40
DECAL, Warning BS-205975GS
...
41
DECAL, Warning, English BS-205969GS
...
42
GASKET BS-206843GS
...
43
SEAL, Breaker BS-206844GS

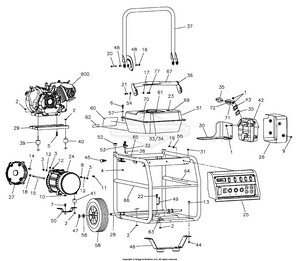

Main Unit

...
...
1
NUT, Flange, M8-1-1/4 BS-710090
...
2
NUT, Flange Serrated, M8 BS-67989GS
...
4
NUT, Lock, M8-1.25 BS-52858GS
...
8
STUD, Double, M8 BS-187117GS
...
9
HHS, 1/4 - 20 x 1/2, Trilobular BS-206459GS
...
10
SCREW, Wing, M6 1 x 16 BS-86494GS
...
13
BOLT, Carriage, 5/16-18 x 3/4 BS-206121GS
...
14
SBHCS, 3/8-16 X 1 BS-190274BGS
...
15
CAPSCREW, Hex Head, 5/16-24 x 6-1/2 BS-53122GS
...
16
NUT, Flange, Nylock, 1/4-20 BS-194005GS
...
17
NUT, Lock, 5/16-18 BS-206140GS
...
18
WASHER, 8.4X22.3X3 BS-96796GS
...
19
BHCS, 1/4-20 X 1/2 BS-206141GS
...
22
SCREW, Self Driller, 12-14 x 7/8 BS-B2153GS
...
23
GAUGE, Fuel BS-205441GS
...
25
CONTROL PANEL ASSEMBLY BS-206161GS
...
26
Enclosure, Muffler BS-206304GS
...
27
ADAPTER, Engine BS-190220GS
...
28
AXLE BS-191267AGS
...
29
BRACKET, Support Engine BS-B92531GS
...
30
BRACKET, Muffler BS-205079GS
...
31
CLIP, Tree BS-B1797GS
...
32
CLAMP, Hose BS-189568GS
...
33
CAP, Fuel BS-20409GS
...
34
STRAINER, Tank BS-206892GS
...
35
GASKET BS-710250X
...
36
LIFT BAR (Includes Ref. No 67) BS-K205549GS
...
37
HANDLE BS-K205545GS
...
38
LINE, Fuel (Cut to Fit) BS-791745
...
39
MOUNT, Vibration, Engine BS-194783GS
...
40
MOUNT, Vibration Bracket BS-194789GS
...
41
MOUNT-VIBRATION BS-194153GS
...
42
MUFFLER BS-206285GS
...
43
MANIFOLD, Muffler BS-206137GS
...
44
NUT, Lock, 5/16-18 BS-206140GS
...
45
PIVOT PIN BS-206132GS
...
46
ASSEMBLY, Support, Leg BS-206321GS
...
47
E-RING BS-703977
...
48
SPACER, Shoulder BS-206134GS
...
49
WIRE, Ground BS-195373GS
...
50
SUPPORT, Alt BS-K205544GS
...
51
FUEL TANK (Includes Ref. Nos. 23, 33, 34, 60, 61, 62, 69 & 70) BS-205406GS
...
52
CAP, Tube End BS-189332GS
...
53
VALVE, Fuel BS-310574GS
...
55
WASHER, Fender BS-71693GS
...
58
WHEEL BS-206041GS
...
60
DECAL, Instruction, Start BS-94480GS
...
61
DECAL, Instruction, Fuel Level BS-205971GS
...
62
DECAL, Fuel Shutoff BS-205972GS
...
63
DECAL, Ground, Green BS-B4986GS
...
64
DECAL, Hot Engine BS-205970GS
...
65
DECAL, Pinch point BS-206558GS
...
66
CRADLE (Includes Ref. Nos. 63, 64 & 65) BS-K205532GS
...
67
DECAL, Lift, Eng/SP/FR BS-206557GS
...
69
DECAL, Warning, CO BS-202997GS
...
70
DECAL, Tank, Metco BS-206203GS
...
71
SPACER BS-31579GS
...
72
WASHER, .34X1X10 BS-50190GS
...
--
MANUAL, Operator’s BS-206472GS
...
--
BOTTLE, Oil BS-100005
...
--
ARRESTOR BS-206052GS
...
--
CRIMPTITE, 10-24 x 1/2 BS-58443GS
...
--
HARDWARE, Wheel Kit BS-206183GS
...
...
...
