product name

Briggs & Stratton 030330-0 - 2,000 Watt Husqvarna

Model: 030330-0 - 2,000 Watt

Save
 Part Not Listed?Part Not Listed?
product name

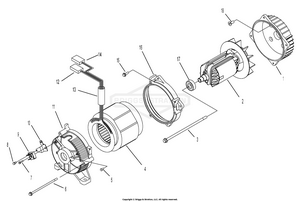

Alternator

...
...
1
Adptr, Eng BS-~NSP
...
2
Assy, Rotor BS-197890GS
...
3
Bolt, Rotor BS-~NSP
...
4
Assy, Stator BS-197892GS
...
5
Screw, M5 x 7 BS-~NSP
...
6
Bolt, Stator BS-197894GS
...
7
Screw, M4 x 18 BS-197895GS
...
8
Screw, M5 x 10 BS-197896GS
...
9
Rectifier BS-187462GS
...
10
Bracket, Rectifier BS-~NSP
...
11
RBC BS-~NSP
...
12
Connector BS-197899GS
...
13
Sleeve BS-197900GS
...
14
Connector BS-197901GS
...
15
Screw, M6 x 20 BS-197864GS
...
16
Adptr, Mntng, Alt BS-~NSP
...
17
Bearing BS-187411GS
...
18
Screw, M8 x 20 BS-197904GS

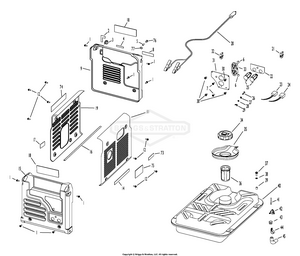

Main Unit (Part 1)

...
...
1
Bolt, Cover, Muffler BS-187757GS
...
2
Decal, On-Off BS-197871GS
...
3
Switch, Eng, On/Off BS-187450GS
...
4
Decal, Choke BS-273764
...
5
Spacer BS-205088GS
...
6
Nut, M4, Flange BS-187761GS
...
7
Screw, M4x12 BS-187760GS
...
8
Decal, Fuel Shutoff, CCW BS-197797GS
...
9
Panel, End, Recoil BS-205086GS
...
11
Panel, Side, Muffler BS-205085GS
...
12
Bolt, M6x16 BS-197860GS
...
14
Decal, Exhaust Warning BS-196830GS
...
15
Panel, End, Control BS-204947GS
...
16
U-Packing BS-197881GS
...
17
Decal, Caution, Oil BS-187763GS
...
18
Decal, Unit BS-203859GS
...
19
Panel, Side, Oil BS-205084GS
...
20
Cable, Bttry Charge, ACC Plug BS-187876GS
...
21
BRKR, CRCT, 10A, 125V BS-187460GS
...
22
Decal, DC Out BS-197873GS
...
23
Connector BS-197875GS
...
24
Connector BS-197876GS
...
25
Outlet, 12V DC, Accssry BS-187873GS
...
26
PHMS, M5-0.8 x 20 BS-187415GS
...
27
Washer, Lock, Intrnl BS-197874GS
...
28
Nut, M5 x 0.8 BS-187423GS
...
29
Nut, Wing, M5 x 0.8 BS-187424GS
...
30
Screw, M4x12, Slftap BS-197863GS
...
31
Panel, Control BS-197854GS
...
32
BRKR, CRCT, 15A, 125V BS-197855GS
...
33
RCPTCL, 15 A, 125 V BS-187456GS
...
34
Cap, Fuel BS-187436GS
...
35
Packing, Tank BS-197883GS
...
36
STRAINER-FUEL BS-710065
...
37
Bolt, M6x20, Flange BS-197864GS
...
38
Washer, Flat BS-197866GS
...
39
Sleeve BS-197865GS
...
40
Tank, Fuel BS-197832GS
...
41
FILTER - FUEL BS-711550
...
42
VALVE- FUEL SHUT OFF BS-711547
...
43
CLAMP, HOSE BS-711549
...
44
Clip, Nylon BS-197845GS
...
45
Hose, Fuel BS-197844GS
...
73
Decal, Instruction BS-191775GS
...
74
Decal, Warning Fuel Fill BS-197310GS
...
75
Decal, Warning, CO BS-202997GS
...
76
Screw, Self Tap, M5 - 20 BS-205087GS
...
77
Washer BS-205089GS
...
xx
Manual, Operator's Parts Not Illustrated BS-203861GS
...
xx
BOTTLE, Oil Parts Not Illustrated BS-100005

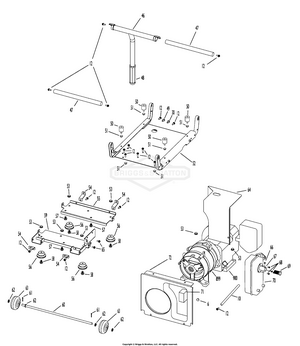

Main Unit (Part 2)

...
...
6
Nut, M4, Flange BS-187761GS
...
10
Hose, Drain BS-205092GS
...
12
Bolt, M6x16 BS-197860GS
...
30
Screw, M4x12, Slftap BS-197863GS
...
46
Handle BS-197834GS
...
47
Handle, Tube BS-197835GS
...
48
Grip, Handle BS-197867GS
...
49
Screw BS-197862GS
...
50
Mount, Vibration, Tank BS-197838GS
...
51
Nut, M6, Flange BS-197861GS
...
52
Assy, Heatshield, Tank BS-200231GS
...
53
Nut, M8, Flange BS-187401GS
...
54
Bracket, Panel BS-197848GS
...
55
Base, Eng BS-197846GS
...
56
Mount, Vibration BS-197851GS
...
57
Bolt, M8x35, Flange BS-197857GS
...
58
Bolt, M8x16, Flange BS-197858GS
...
59
Assy, Base, Alt BS-200230GS
...
60
Axle BS-197852GS
...
61
Pin BS-197869GS
...
62
Washer, Flat BS-197868GS
...
63
Wheel BS-197853GS
...
64
Heatshield, Muffler BS-205090GS
...
65
Bolt, M6 - 12, Flange BS-205082GS
...
66
Screw, M3-8, Slftap BS-197880GS
...
67
Pipe, Tail BS-197878GS
...
68
Screw, M4x16 BS-197879GS
...
69
ARRSTR, Spark BS-197877GS
...
70
Muffler BS-197842GS
...
71
Condenser, 350V BS-205083GS
...
72
Htshld, Alt BS-197841GS
...
899
Alternator BS-~NSP
...
xx
Manual, Operator's Parts Not Illustrated BS-203861GS
...
xx
BOTTLE, Oil Parts Not Illustrated BS-100005

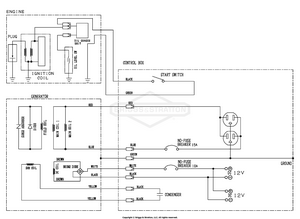

Wiring Schematic

...

No Parts Available for this Schematic

...
...
...
