Briggs & Stratton 030261-0 - HandyGen 2600 UK

Model: 030261-0 - HandyGen 2600 UK

Save
 Part Not Listed?Part Not Listed?
product name

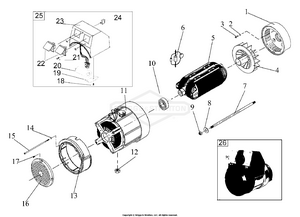

Alternator & Outlet Panel

...
...
1
FLANGE ALTERNATOR BS-102059GS
...
2
WASHER SPRING M8 & 5/16" BS-~NSP
...
3
SCREW SET 5/16"UNF X 3/4" BS-~NSP
...
4
FAN ROTOR SINCRO R80 BS-102046GS
...
5
ROTOR SINCRO R80 BS-102056GS
...
6
KIT-CAPACITOR DIODE & VAR BS-B4916GS
...
7
ROTOR BOLT 195MM BS-102057GS
...
8
WASHER FLAT M8 & 5/16" BS-~NSP
...
9
NUT NYLOCK M8-1.25 TYPE T BS-~NSP
...
10
BEARING ROTOR BS-102063GS
...
11
STATOR ASSY SINCRO R80 SINGLE VOLTAGE BS-103241GS
...
12
NUT FLANGE M8-1.25 BS-~NSP
...
13
COWLING ALTERNATOR R80 BS-102060GS
...
14
WASHER FLAT M5 BS-~NSP
...
15
BOLT STATOR M5*204MM BS-102088GS
...
16
END COVER ALTERNATOR R80 BS-102061GS
...
17
SCREW SELF TAP3.9 * 9.5MM BS-~NSP
...
18
SCREW SELF TAPPPHD #8*5/8" BZP BS-~NSP
...
19
CAPACITOR CLIP R80 BS-102082GS
...
20
CAPACITOR 16UF BS-102053GS
...
21
SCREW PLASTITE PPHD NO6 * 3/8" BS-~NSP
...
22
OUTLET SOCKET UK DOMESTIC (SINCRO) BS-103293GS
...
23
OUTLET BOX BLANK (FOR UK DOMESTIC) BS-103332GS
...
24
CIRCUIT BREAKER 10A BS-102132GS
...
25
OUTLET BOX SINCRO R80 UK DOMESTIC BS-103331GS
...
26
ALTERNATOR SINCRO R80 UK BS-103210GS

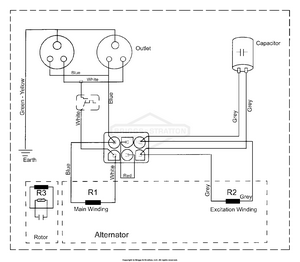

Alternator Wiring Diagram

...

No Parts Available for this Schematic

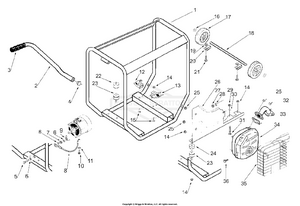

Frame, Fuel Tank And Fittings

...
...
1
CRADLE, HANDYGEN 2600 / 3400 BS-103195GS
...
2
HANDLE- FOLD DOWN BS-102852GS
...
3
GRIP 3/4" HANDLE BLACK BS-102465GS
...
4
FERRULE PLASTIC PLUG 3/4" TUBE BS-102467GS
...
5
SCREW SET M6-1.0X25MM PLATED BS-~NSP
...
6
WASHER SHAKEPROOF 1/4" & M6 INT BS-~NSP
...
7
NUT FULL M6-1.0 BS-~NSP
...
8
LEAD EARTH ASSY 145MM BS-102050GS
...
9
NUT WING M6-1.0 BS-102036GS
...
10
SCREW SET M8-1.25X12 PLATED BS-~NSP
...
11
WASHER SHAKEPROOF M8 INT BS-~NSP
...
12
VIBRATION MOUNT 45 DEGREE SOFT BS-102033GS
...
13
VIBRATION MOUNT 45 DEGREE HARD BS-102031GS
...
14
NUT FLANGE M8-1.25 BS-~NSP
...
15
SCREW SET BS-~NSP
...
16
WASHER M10 FORM C OXY-BLACKENED BS-102547GS
...
17
WHEEL 5.5" OD 1" WIDE BS-102853GS
...
18
AXLE, HANDYGEN 2600 / 3400 BS-103196GS
...
19
NUT LOCKING FLANGE M6-1.0MM BS-~NSP
...
20
CLEAT: 10MM CABLE-M6 BS-102855GS
...
21
SCREW MACHINE HXHD M6-1.0X20MM BS-~NSP
...
22
SPACER 20MM BS-102605GS
...
23
VIBRATION MOUNT 32MM DIAMETER BS-102111GS
...
24
SPACER 32MM*9MM*15MM BS-103234GS
...
25
NUT FLANGE M8 BS-710090
...
26
BRACKET, MUFFLER, MOUNTING BS-103296GS
...
27
NUT, HEX BS-103310GS
...
28
LOCKWASHER, HELICAL SPRING BS-103311GS
...
29
LOCKNUT BS-691105
...
30
WASHER BS-691075
...
31
SCREW BS-690352
...
32
MANIFOLD BS-707075
...
33
GASKET BS-710250
...
34
MUFFLER BS-103303GS
...
35
MUFFLER GUARD BS-103302GS
...
36
SCREW TAPTITE M6*12 BS-710023
...
--
DECAL ELECTRICAL HAZARD (Not Illustrated) BS-102076GS
...
--
DECAL GND (Not Illustrated) BS-102048GS
...
--
DECAL HANDYGEN 2600 (Not Illustrated) BS-103173GS
...
--
DECAL CAUTION HOT (Not Illustrated) BS-102041GS
...
--
DECAL WARNING READ MANUAL (Not Illustrated) BS-102077GS
...
--
OWNERS MANUAL EURO-25L PORTABLE GENERATOR (Not Illustrated) BS-MS5796
...
...
...
