Briggs & Stratton 020679-00 - 3,000 PSI Briggs & Stratton

Model: 020679-00 - 3,000 PSI

Save
 Part Not Listed?Part Not Listed?
product name

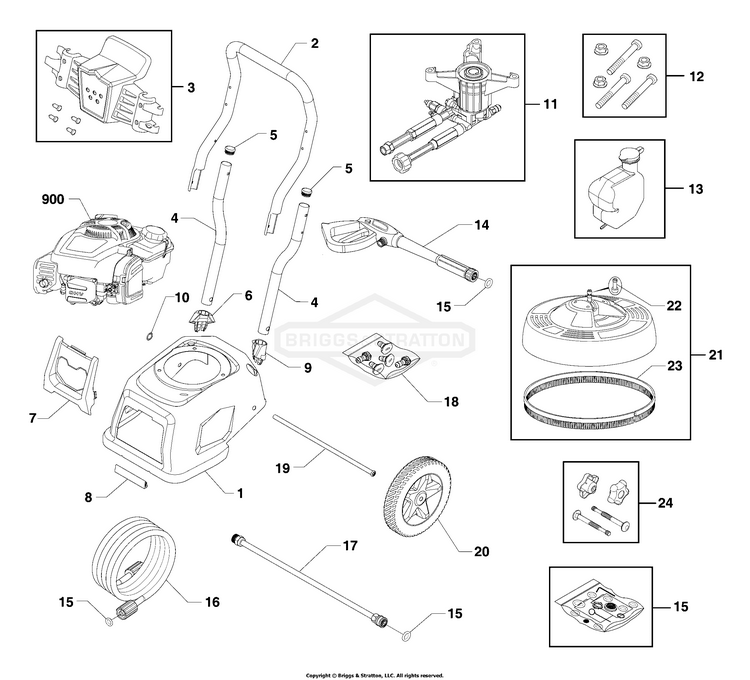

Main Unit (80021089)

...
...
1
BASE (Includes Ref. No. 10) BS-708716
...
2
HANDLE-UPPER BS-707441
...
3
BILLBOARD BS-706907
...
--
CLIP BS-B1797GS
...
4
HANDLE-LOWER (Includes Ref. No. 10) BS-707448
...
5
PLUG, Hole BS-189332GS
...
6
GROMMET (Includes Ref. No. 10) BS-707446
...
7
SHROUD-FRONT BS-709545
...
8
MOUNT-VIBRATION BS-707443
...
9
GROMMET (Includes Ref. No. 10) BS-707449
...
10
PUSHNUT BS-315543GS
...
11
PUMP BS-771492
...
12
KIT, Hardware, Pump Mounting BS-315139GS
...
13
TANK-CHEMICAL BS-708963
...
--
CAP-CHEMICAL TANK BS-312369GS
...
14
GUN, BIT BS-708810
...
15
KIT-O-RING BS-705001
...
16
HOSE BS-709464
...
17
WAND-QC BS-706595
...
18
KIT-QC NOZZLE BS-709691
...
--
NOZZLE, QC RED BS-195983AJGS
...
--
Nozzle, QC, Green BS-195983UGS
...
--
NOZZLE, QC, WHITE BS-707480
...
--
NOZZLE, QC Cyan BS-706518
...
--
NOZZLE BS-706155
...
19
AXLE (Includes Ref. No. 10) BS-707447
...
20
KIT, Wheel (Includes Ref. No. 10) BS-707442
...
21
KIT-SURFACE CLEANER BS-707010
...
22
FILTER BS-707846
...
23
BRUSH BS-707154
...
24
KIT, Hardware, Handle BS-705848
...
900
*ENGINE (Reference Footnote*) BS-121P02-0003-F1
...
--
KEY (Not Illustrated) BS-23139GS
...
--
100005 OIL 18OZ. (EA) (Not Illustrated) BS-100005WEB
...
--
HOSE-CHEMICAL (Not Illustrated) BS-705076
...
--
TAG-HANG, WARNING (Not Illustrated) BS-706602
...
--
PUMP Saver (Optional Accessory - Not Included) BS-6039
...
--
PERFECT MIX MULTI-PURPOSE WASH (Optional Accessory - Not Included) BS-6059
...
--
Project Pro® PerfectMix Concrete, Brick, And Tile Cleaner (Optional Accessory - Not Included) BS-6160

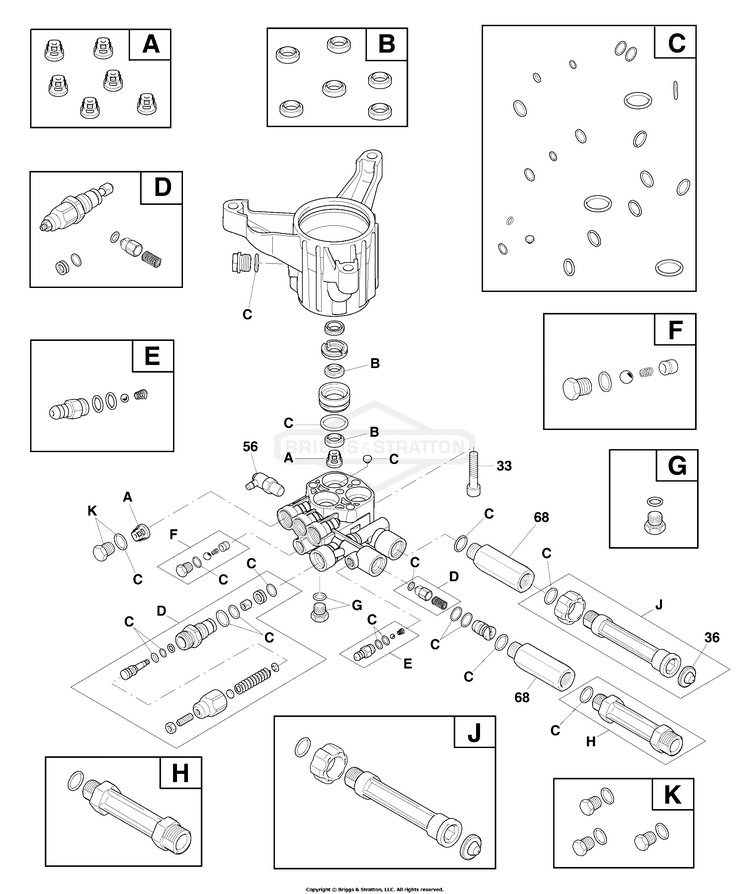

Pump (80011012srv)

...
...
33
SCREW BS-204087GS
...
36
FILTER, Garden Hose BS-B2384GS
...
56
VALVE, Thermal Relief BS-208673GS
...
68
FITTING BS-707377
...
A
* KIT, Check Valve BS-317897GS
...
B
* KIT, Water Seals BS-204084GS
...
C
* KIT-O-RING BS-707342
...
D
* KIT, Unloader BS-706610
...
E
*KIT, Chemical Injector BS-317787GS
...
F
KIT, EZ START BS-200349GS
...
G
* KIT, Grub Screw & Washer BS-200350GS
...
H
* FITTING BS-201497GS
...
J
* KIT, Water Inlet BS-201496GS
...
K
* KIT-PLUG BS-706780
...
--
PUMP Saver (Optional Accessory - Not Included) BS-6039
...
xx
PERFECT MIX MULTI-PURPOSE WASH BS-6059
...
xx
Project Pro® PerfectMix Concrete, Brick, And Tile Cleaner BS-6160
...
...
...
