Briggs & Stratton 020641-00 - 3,100 PSI Troy-Bilt

Model: 020641-00 - 3,100 PSI Troy-Bilt

Save
 Part Not Listed?Part Not Listed?
product name

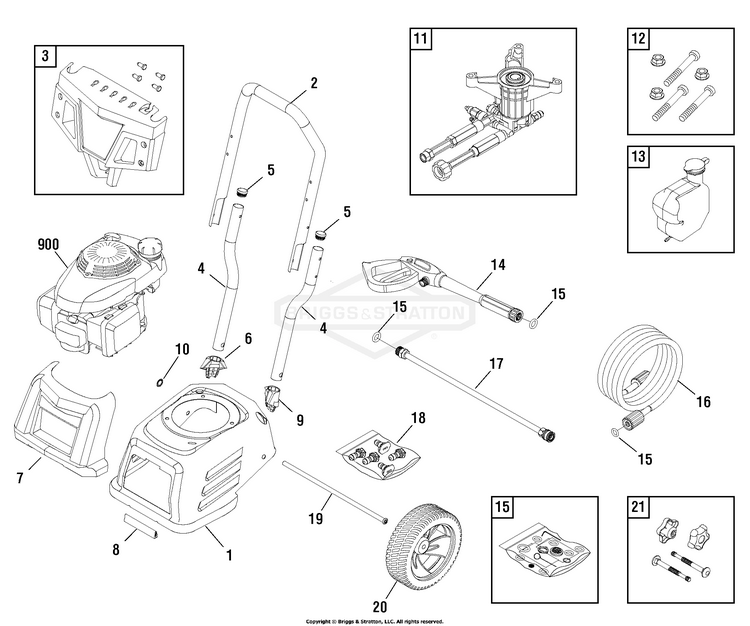

Main Unit (80014771)

...
...
1
BASE (Includes Ref. No. 10) BS-708719
...
2
HANDLE BS-708725
...
3
BILLBOARD BS-708722
...
--
CLIP BS-B1797GS
...
4
BRACKET (Includes Ref. No. 10) BS-708726
...
5
PLUG-HOLE BS-189332GS
...
6
GROMMET (Includes Ref. No. 10) BS-707446
...
7
SHROUD-FRONT BS-708721
...
8
MOUNT-VIBRATION BS-707443
...
9
GROMMET (Includes Ref. No. 10) BS-707449
...
10
PUSHNUT BS-315543GS
...
11
PUMP BS-771492
...
12
KIT-HARDWARE PUMP MOUNTING BS-315033GS
...
13
TANK-CHEMICAL BS-708963
...
--
CAP-CHEMICAL TANK BS-312369GS
...
14
GUN BS-708720
...
15
KIT-O-RING BS-705001
...
16
HOSE ASSEMBLY BS-84006753
...
17
WAND-QC BS-706595
...
18
KIT-QC NOZZLE BS-708724
...
--
NOZZLE-QC RED BS-195983AAGS
...
--
NOZZLE-QC YELLOW BS-195983TGS
...
--
NOZZLE-QC WHITE BS-707480
...
--
NOZZLE-QC CYAN BS-706518
...
--
NOZZLE BS-706155
...
19
AXLE (Includes Ref. No. 10) BS-707447
...
20
WHEEL (Includes Ref. No. 10) BS-313837GS
...
21
KIT-HANDLE BS-312099GS
...
--
KEY (Not Illustrated) BS-23139GS
...
--
OIL (Not Illustrated) BS-319068GS
...
--
DECAL SHEET, WARNINGS (Not Illustrated) BS-705920
...
--
HOSE-CHEMICAL (Not Illustrated) BS-705076
...
--
TAG-WARNING (Not Illustrated) BS-707165
...
--
PUMP SAVER (Optional Accessory - Not Included) BS-6039

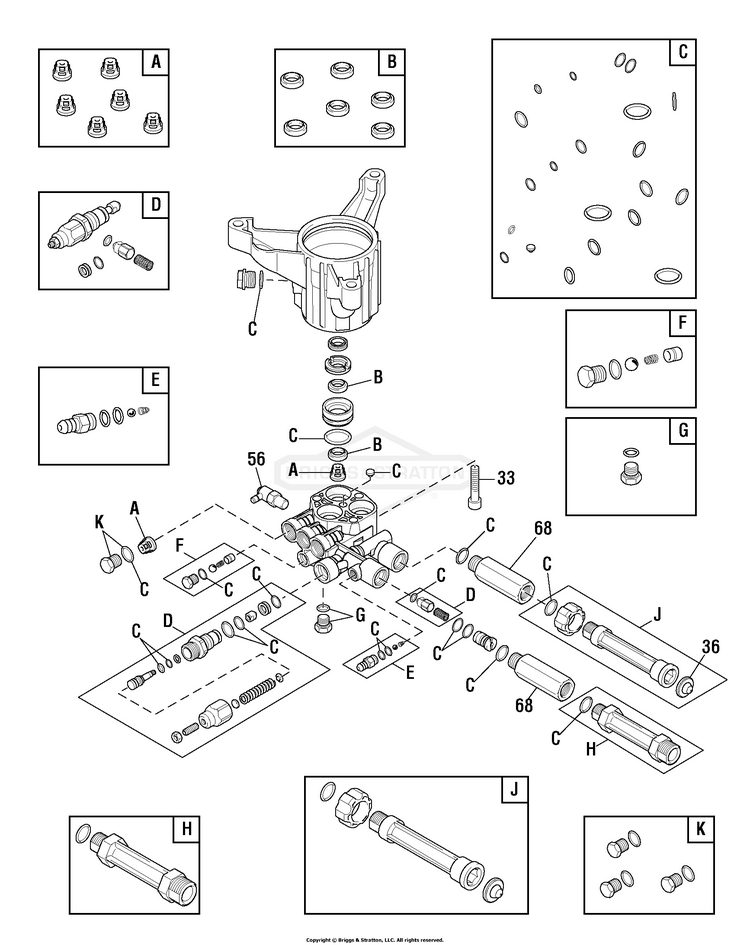

Pump (80011012)

...
...
33
SCREW BS-204087GS
...
36
FILTER-GARDEN HOSE BS-B2384GS
...
56
VALVE-THERMO RELIEF BS-208673GS
...
68
FITTING BS-707377
...
A
KIT-CHECK VALVE BS-317897GS
...
B
KIT-WATER SEAL BS-204084GS
...
C
KIT-O-RING BS-707342
...
D
KIT-UNLOADER BS-706610
...
E
KIT-CHEMICAL INJ BS-317787GS
...
F
KIT, EZ START BS-200349GS
...
G
SCREW-GRUB BS-200350GS
...
H
FITTING BS-201497GS
...
J
KIT-WATER INLET BS-201496GS
...
K
KIT-PLUG BS-706780
...
--
PUMP SAVER (Optional Accessory - Not Included) BS-6039
...
...
...
