product name

Briggs & Stratton 020293-0 - 2,550 PSI Troy-Bilt

Model: 020293-0 - 2,550 PSI Troy-Bilt

Save
 Part Not Listed?Part Not Listed?
product name

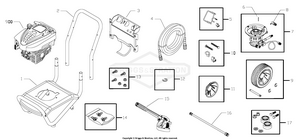

Main Unit

...
...
1
ASSY, Base BS-201560GS
...
2
HANDLE BS-199110BVGS
...
3
KIT, Billboard with Clips BS-201371GS
...
Clips, Tree BS-195964GS
...
4
HOSE ASSEMBLY BS-84006753
...
5
KIT, Gun Holder BS-201661GS
...
6
KEY BS-23139GS
...
7
PUMP BS-207365GS
...
8
VALVE, Thermal Relief BS-208673GS
...
9
KIT, Wheel BS-202483GS
...
10
KIT, Handle Connector BS-B2203GS
...
11
CAP, Hub BS-200519GS
...
12
RETAINER, RING, 1/2 BS-703976
...
13
KIT, Pump Mounting Hardware BS-192645GS
...
14
KIT, Nozzles BS-201324GS
...
Nozzle, Soap BS-198841GS
...
Nozzle, QC, Red BS-195983AEGS
...
Nozzle, QC, Grn BS-195983QGS
...
15
GUN BS-84003228
...
16
ASSY, Extension BS-190779GS
...
17
KIT, Vibration Mount BS-192310GS
...
Manual, Operator’s Not Illustrated BS-206208GS
...
TAG-WARNING Not Illustrated BS-705752
...
AXLE, 1/2 Not Illustrated BS-201313GS
...
BOTTLE, Oil Not Illustrated BS-100005
...
GROMMET Not Illustrated BS-30809GS
...
GOGGLES Not Illustrated BS-87815GS
...
STABLIZIER, Fuel Optional Accessory BS-5041D
...
KIT-O-RING Optional Accessory BS-705001
...
PUMP SAVER Optional Accessory BS-6039

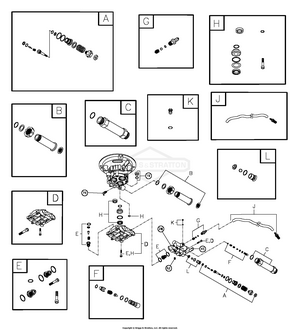

Pump

...
...
19
CAP, Oil BS-190571GS
...
28
MANIFOLD BS-190627GS
...
45
PIN BS-190578GS
...
62
CAP, 1/8 BS-190581GS
...
76
VALVE, Thermal Relief BS-208673GS
...
A
KIT, UNLOADER STEM Service kits include all parts shown within the box. BS-190594GS
...
B
KIT, WATER INLET, ALUM Service kits include all parts shown within the box. BS-190632GS
...
C
FITTING Service kits include all parts shown within the box. BS-201497GS
...
D
KIT, HEAD BRASS Service kits include all parts shown within the box. BS-193808GS
...
E
KIT, CHECK VALVES Service kits include all parts shown within the box. BS-193806GS
...
F
KIT, INLET CHECK Service kits include all parts shown within the box. BS-190592GS
...
G
KIT, CHEMICAL INJECTION Service kits include all parts shown within the box. BS-190593GS
...
H
KIT, SEAL SET Service kits include all parts shown within the box. BS-193807GS
...
J
KIT, CHEMICAL HOSE Service kits include all parts shown within the box. BS-189971GS
...
K
KIT, PIPE FITTING Service kits include all parts shown within the box. BS-193971GS
...
L
KIT, UNLOADER SEAT Service kits include all parts shown within the box. BS-193972GS
...
...
...
