Briggs & Stratton 020249-2 - 2,200 PSI Craftsman Canada

Model: 020249-2 - 2,200 PSI Canada

Save
 Part Not Listed?Part Not Listed?
product name

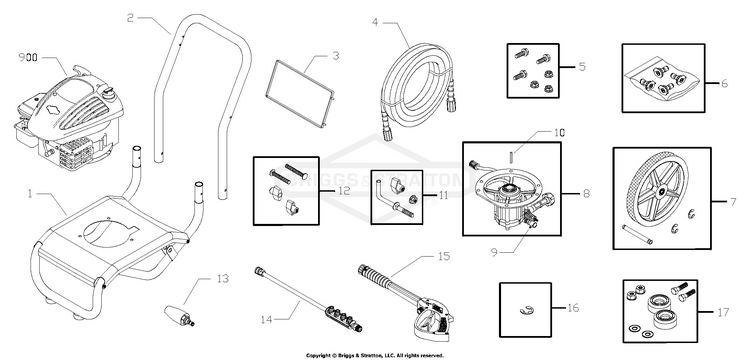

Main Unit

...
...
1
ASSY, Base BS-196614GS
...
2
HANDLE BS-R194718GS
...
3
ASSY, Billboard BS-196252GS
...
4
HOSE BS-709464
...
5
KIT, Pump Mounting Hardware BS-192525GS
...
6
KIT, Spray Tips BS-196278GS
...
Nozzle, QC, Black BS-195846ZZGS
...
NOZZLE, QC, Red BS-195983AEGS
...
NOZZLE, QC, Yellow BS-195983AFGS
...
NOZZLE, QC, White BS-195983AHGS
...
7
KIT, Wheel BS-196439GS
...
8
ASSY, Pump (see "Pump") BS-200200GS
...
9
VALVE, Thermal Relief BS-208673GS
...
10
KEY (CLÉ) BS-23139GS
...
11
KIT, Hook, Handle BS-194264GS
...
12
KIT, Handle Connector BS-B2203GS
...
13
TURBO BS-194236CGS
...
14
ASSY, Extension BS-192199GS
...
15
GUN BS-84003228
...
16
RETAINER, RING, 1/2 BS-703976
...
17
KIT, Vibration Mount BS-192310GS
...
900
ENGINE (10H902-0113-E1) (see pages 27-29) BS-~NSP
...
MANUAL, Operator's Not Illustrated BS-199575GS
...
TAG-WARNING Not Illustrated BS-705752
...
DECAL, Warning Not Illustrated BS-275034
...
AXLE Not Illustrated BS-195454GS
...
OIL, Bottle, Engine Not Illustrated BS-AB3061BGS
...
GOGGLES Not Illustrated BS-87815GS
...
KIT, Maintenance, O-Ring Optional Accessories; Not Illustrated BS-191922GS
...
House Wash Concentrate (makes 4 gallons) Optional Accessories; Not Illustrated BS-7167300GS
...
Deck Wash Concentrate (makes 2 gallons) Optional Accessories; Not Illustrated BS-7167301GS
...
Vehicle/Boat Wash Concentrate (makes 4 gallons) Optional Accessories; Not Illustrated BS-7167302GS
...
Degreaser Concentrate (makes 4 gallons) Optional Accessories; Not Illustrated BS-7167303GS

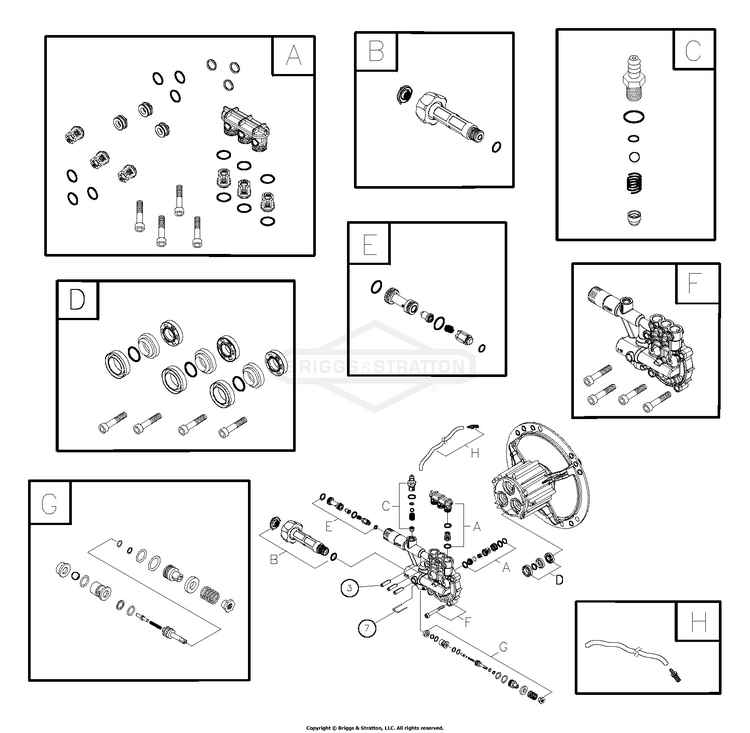

Pump

...
...
3
PLUG, Elastic BS-200274GS
...
7
PIN BS-190578GS
...
A
KIT,CHECK VALVES Service kit include all parts shown within the box. BS-200298GS
...
B
KIT, WATER INLET Service kit include all parts shown within the box. BS-200278GS
...
C
KIT, CHEMICAL INJECTION Service kit include all parts shown within the box. BS-200279GS
...
D
KIT, HIGH PRESSURE SEALS Service kit include all parts shown within the box. BS-200280GS
...
E
KIT, CHEM INJECT Service kit include all parts shown within the box. BS-200281GS
...
F
KIT, PUMP HEAD, ALUM Service kit include all parts shown within the box. BS-200282GS
...
G
KIT, BY-PASS Service kit include all parts shown within the box. BS-200283GS
...
H
KIT, CHEMICAL HOSE Service kit include all parts shown within the box. BS-189971GS
...
FILTER, Inlet Not Illustrated BS-B2384GS
...
OIL, Pump Optional Accessories; Not Illustrated BS-190586GS
...
FILTER, Inlet, Bag of 10 Optional Accessories; Not Illustrated BS-186452GS
...
...
...
