Briggs & Stratton 020248-2 - 2,000 PSI Craftsman Canada

Model: 020248-2 - 2,000 PSI Canada

Save
 Part Not Listed?Part Not Listed?
product name

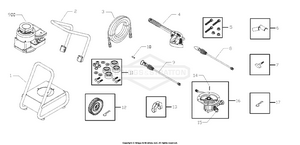

Main Unit

...
...
1
BASE BS-196519GS
...
2
HANDLE BS-R197175GS
...
3
HOSE ASSEMBLY BS-84006753
...
4
GUN BS-84003228
...
5
KIT, Pump/Engine Mounting Hardware BS-192525GS
...
6
KIT, Insert Plastic BS-196899GS
...
7
KNOB BS-196630GS
...
8
WAND-TURBO BS-209318GS
...
9
WAND-ADJUSTABLE BS-205015CGS
...
10
ORIFICE BS-193609DGS
...
11
KIT, Vibration Mount BS-198766GS
...
12
KIT, Wheel BS-196895GS
...
13
FOOT, Mounting BS-196037GS
...
xx
KEY BS-23139GS
...
15
VALVE, Thermal Relief BS-208673GS
...
16
ASSY, Pump (see page 26) BS-200200GS
...
17
PIN, 3/32 X 1.6 BS-703300
...
900
ENGINE (see pages 27-29) (9L902-0132-E1) BS-~NSP
...
xx
MANUAL, Operator's Not Illustrated BS-199586GS
...
xx
KIT, Decals Not Illustrated BS-196859GS
...
xx
OIL, Bottle, Engine Not Illustrated BS-AB3061BGS
...
xx
AXLE Not Illustrated BS-196038GS
...
xx
GOGGLES Not Illustrated BS-87815GS
...
xx
DECAL, Clean/Carry Not Illustrated BS-196905GS
...
xx
DECAL, Engine, Muffler Not Illustrated BS-193581GS
...
xx
KIT, Maintenance, O-Ring Optional Accessory Not Illustrated BS-191922GS
...
xx
House Wash Concentrate (makes 4 gallons) Optional Accessory Not Illustrated BS-7167300GS
...
xx
Deck Wash Concentrate (makes 2 gallons) Optional Accessory Not Illustrated BS-7167301GS
...
xx
Vehicle/Boat Wash Concentrate (makes 4 gallons) Optional Accessory Not Illustrated BS-7167302GS
...
xx
Degreaser Concentrate (makes 4 gallons) Optional Accessory Not Illustrated BS-7167303GS

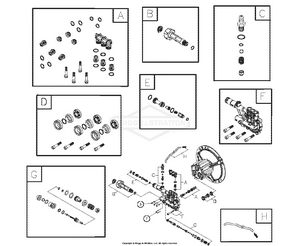

Pump

...
...
3
PLUG, Elastic BS-200274GS
...
7
PIN BS-190578GS
...
A
KIT,CHECK VALVES Service kits include all parts shown within the box. BS-200298GS
...
B
KIT, WATER INLET Service kits include all parts shown within the box. BS-200278GS
...
C
KIT, CHEMICAL INJECTION Service kits include all parts shown within the box. BS-200279GS
...
D
KIT, HIGH PRESSURE SEALS Service kits include all parts shown within the box. BS-200280GS
...
E
KIT, CHEM INJECT VENTURI Service kits include all parts shown within the box. BS-200281GS
...
F
KIT, PUMP HEAD, ALUM Service kits include all parts shown within the box. BS-200282GS
...
G
KIT, BY-PASS Service kits include all parts shown within the box. BS-200283GS
...
H
KIT, CHEMICAL HOSE Service kits include all parts shown within the box. BS-189971GS
...
xx
FILTER, Inlet Not Illustrated BS-B2384GS
...
xx
OIL, Pump Optional Accessory Not Illustrated BS-190586GS
...
xx
FILTER, Inlet, Bag of 10 Optional Accessory Not Illustrated BS-186452GS
...
...
...
